Features
Supports EPON/10G EPON/XGPON downstream wavelength power measurement
Displays in linear(mw), Log(dBm) & relative(dB) units.
Compatible with FC/SC/ST connectors
Auto power-off, backlight, red light source.
Specifications
PON Optical Power Meter | ||
Test Wavelength | 1490±10nm | 1577±10nm |
Isolation: 1490nm | --- | >35dB |
Isolation: 1577nm | >35dB | --- |
Dynamic Range(dBm) | -40-+10 | -40-+10 |
Display Resolution(dB) | 0.1 | |
Type | InGaAs | |
Threshold Groups | 10 threshold groups | |
Data Storage | 10 data records | |

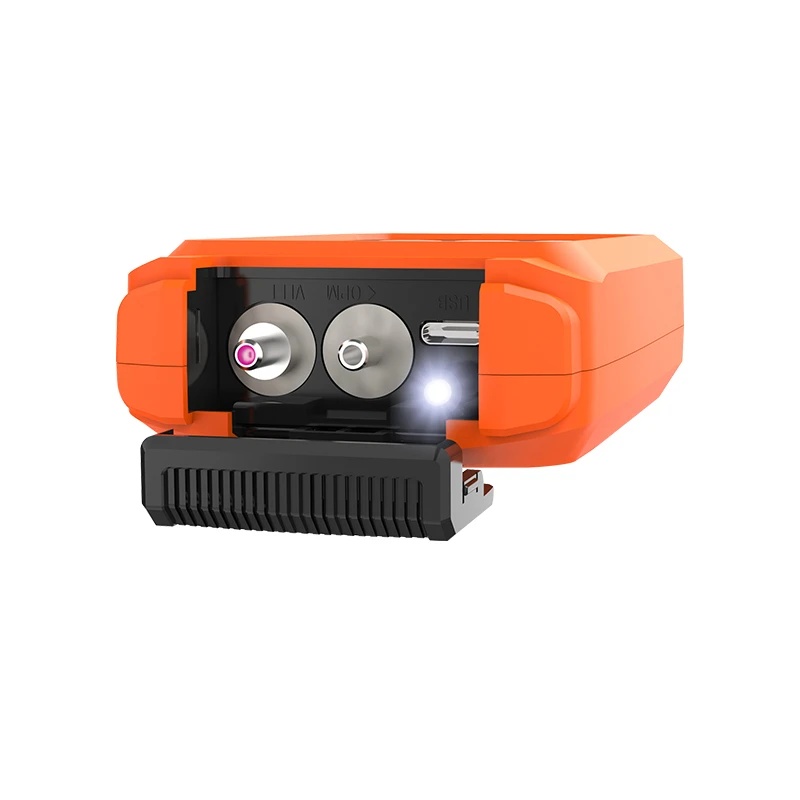

Optical Connector | Universal adapter(FC/SC/ST) | |

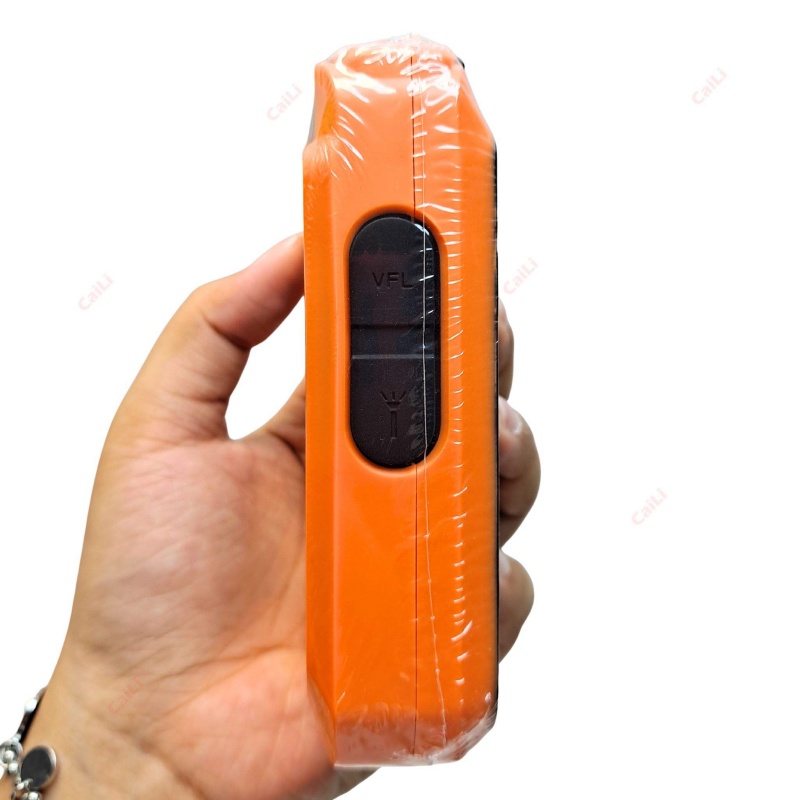

VFL | ||
Operating Wavelength | 650nm±20nm | |
Output Power | ≥30mW | |
Operating Mode | CW/1Hz | |
Optical Connector | Universal adapter(FC/SC/ST) | |
Overall Parameters | ||
Display | Color segment LCD screen | |
Data Interface | Type-C | |
Power Supply | Li-ion battery: 3.7V, 3000mAh | |
Operating Temperature | -10-+50℃ | |
Storage Temperature | -40-+70℃ | |
Dimensions | 116x70x31mm | |
Weight | 150g | |
