Features

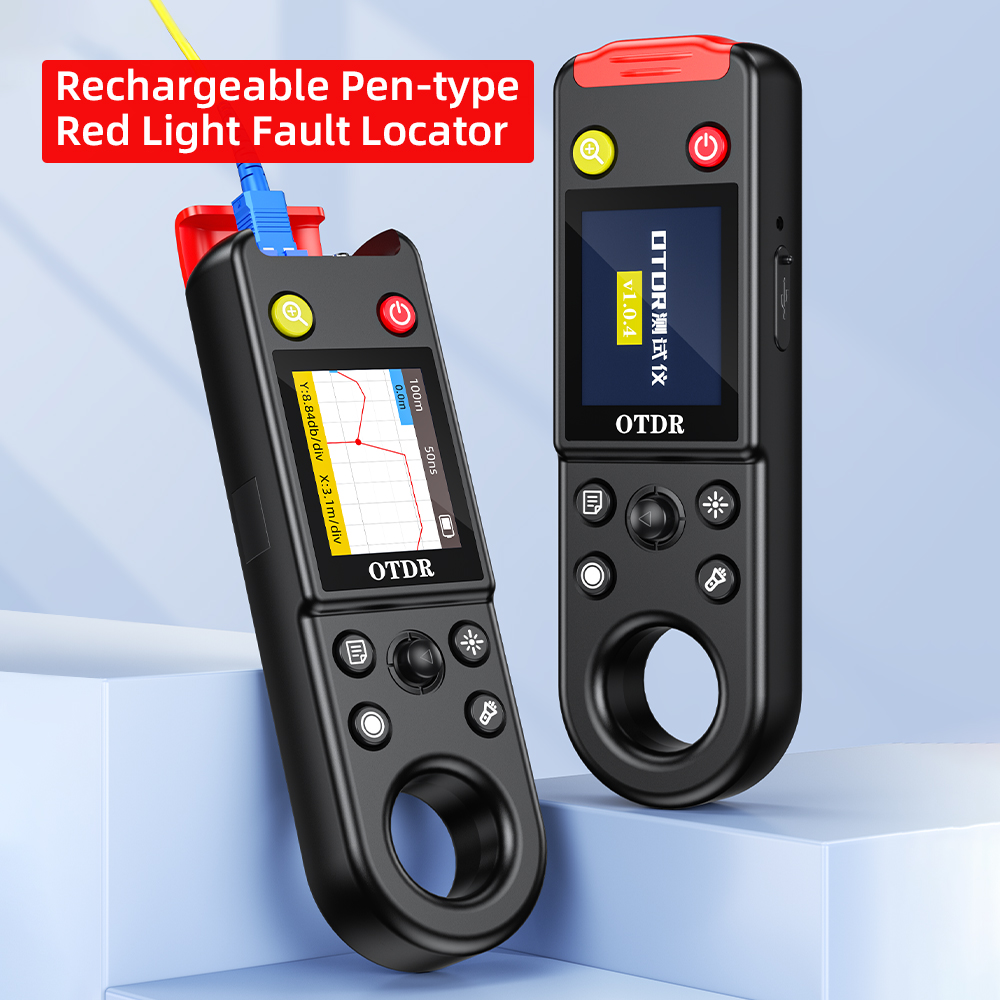

Pen-style compact mini OTDR, maximum test distance up to 20km

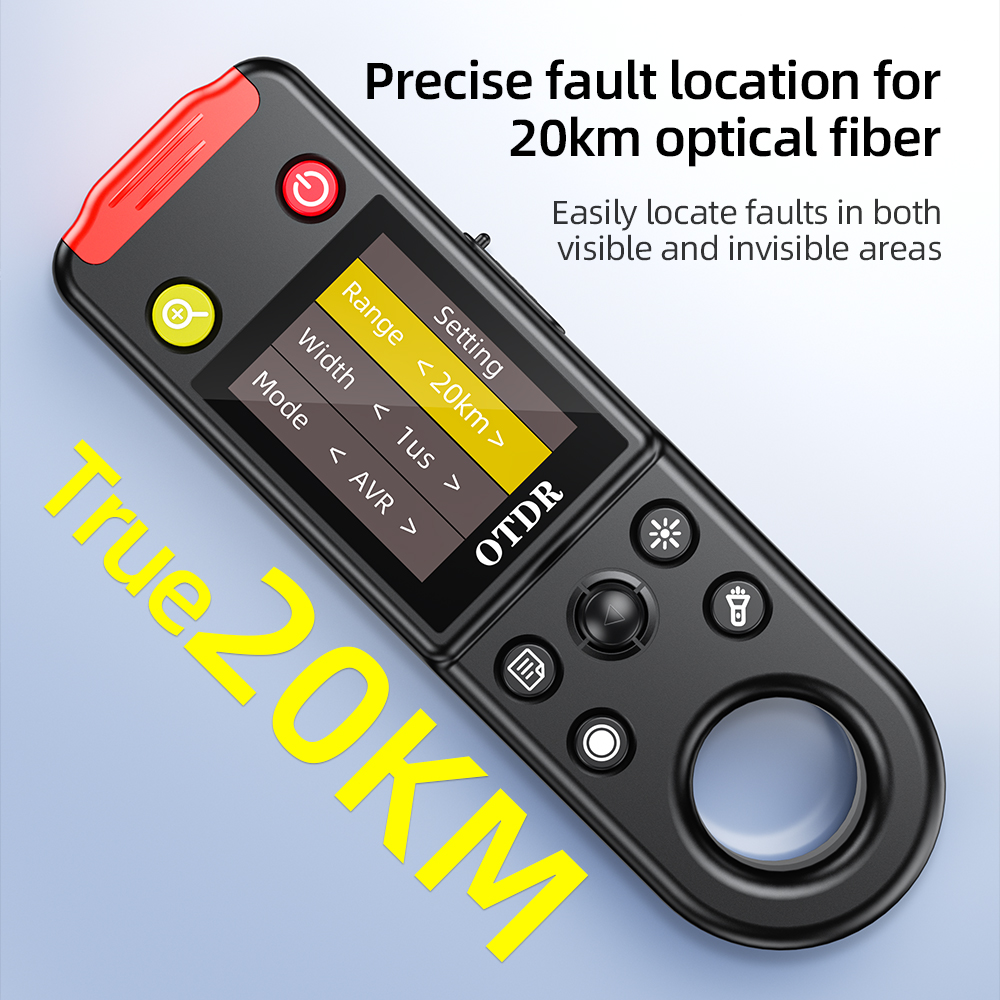

7 adjustable test ranges:100m/500m/1km/2.5km/5km/10km/20km
Integrated 10mW VFL red light source, CW & flashing mode optional

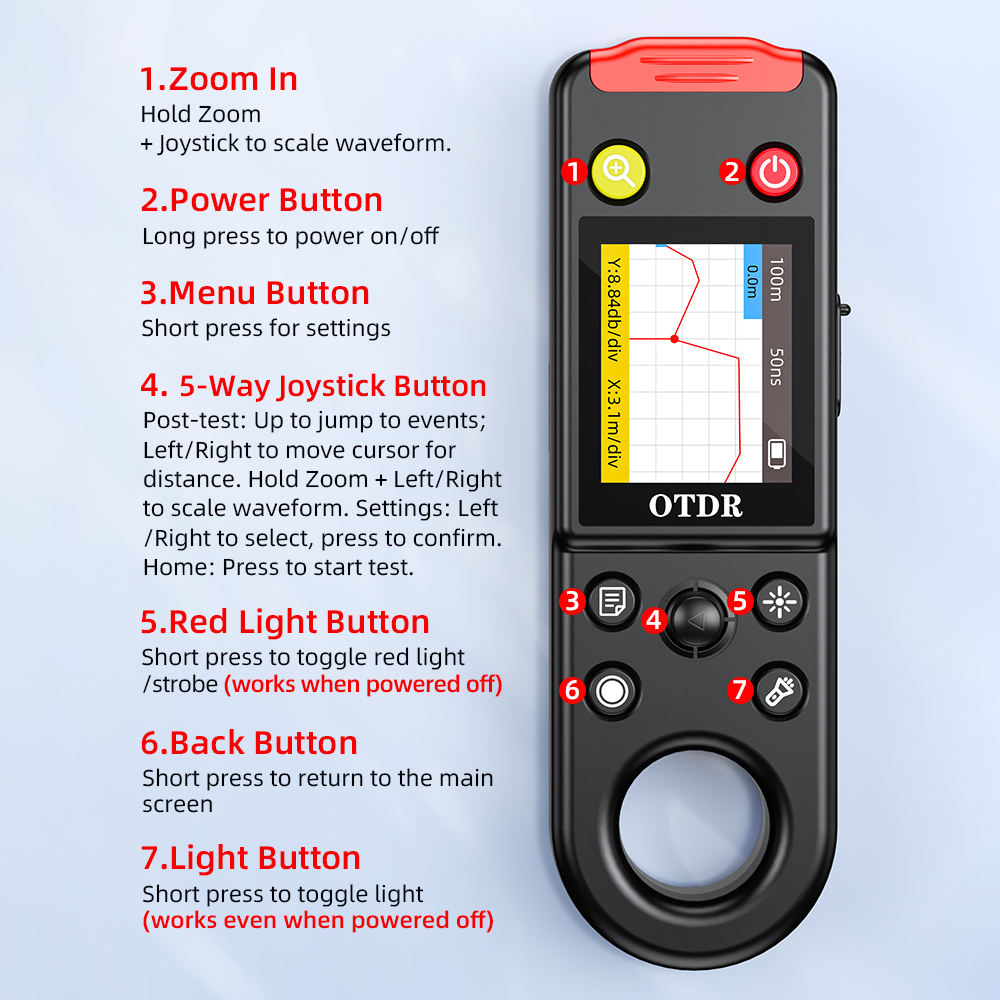

2.0-inch color LCD, real-time waveform display for fault analysis
Support live fiber testing, quickly locate breakpoints and attenuation points
Built-in 800mAh lithium battery, Type-C convenient charging
Extra LED flashlight for dark site construction

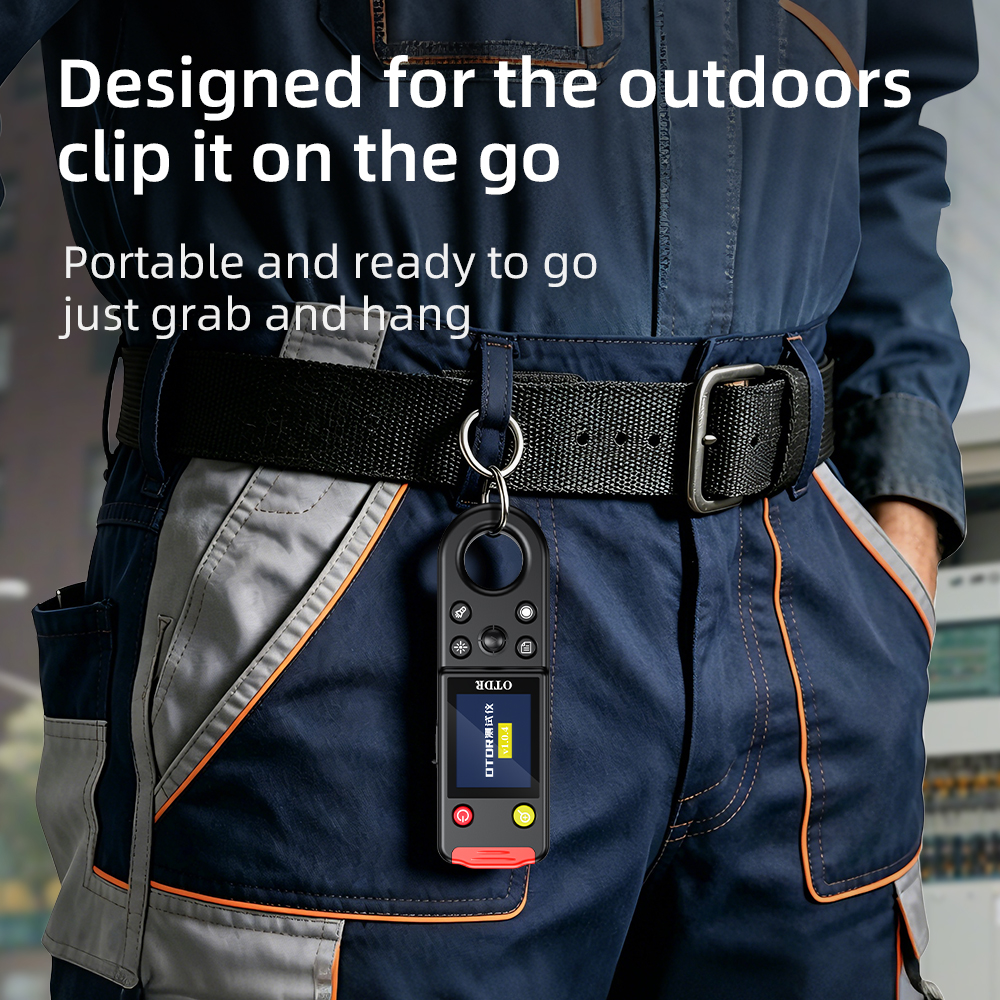

Lightweight pocket design, easy to carry for FTTH field maintenance
Specifications
VFL Red Light Source | |
Laser Wavelength | 650±20nm |
Red Light Mode | CW, 3Hz Flash |
Quick Start | Supported |
Output Power | 10mW |
Interface Type | Universal 2.5mm Interface |
IVFL Fault Finding | |
Measurement Distance | 20km |
Test Wavelength | 1550±10nm |
Live Fiber Test | 1270/1310/1577≤7dBm, 1490≤0dBm |
Interface Type | SC/PC |
LED Lighting | |
Quick Start | Supported |
Basic Specifications | |
Name | Pen-style Fiber Optical Fault Locator |
Screen Size | 2.0-inch Color Screen |
Charging Port | Type-C |
Battery Type | Built-in 800mAh Lithium Battery |
Operating Time | VFL Only>4 Hours, IVFL Only>6 Hours |
Operating Temperature | 0-50℃ |
Relative Humidity | 10-90% RH, Non-condensing |
Dimensions | 185x49x25mm |
Weight | 119g |
