Features

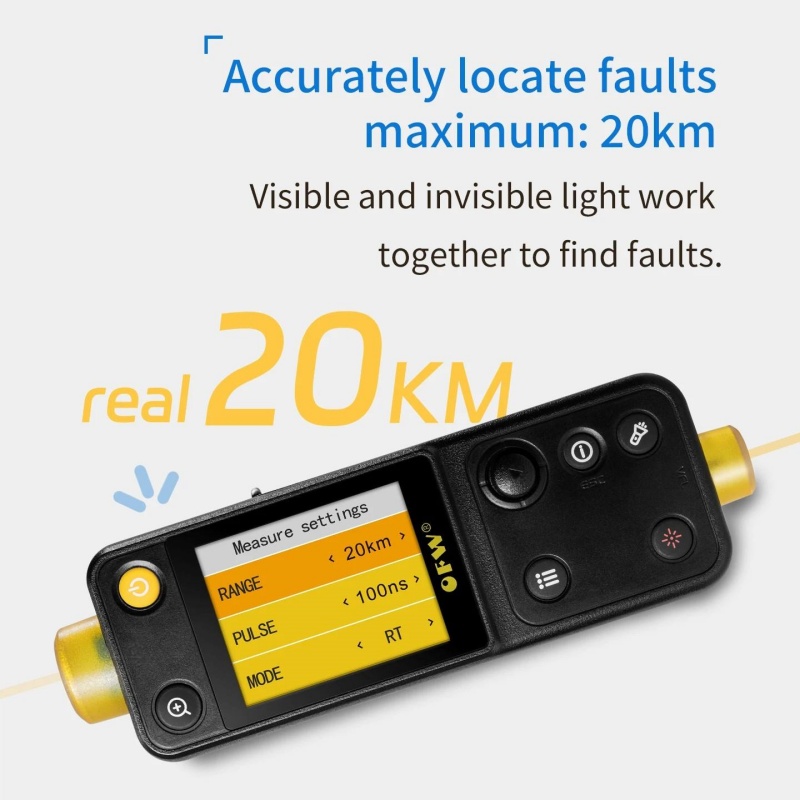

Accurately Locate Faults, Maximum: 20km
1.88-inch Color Screen

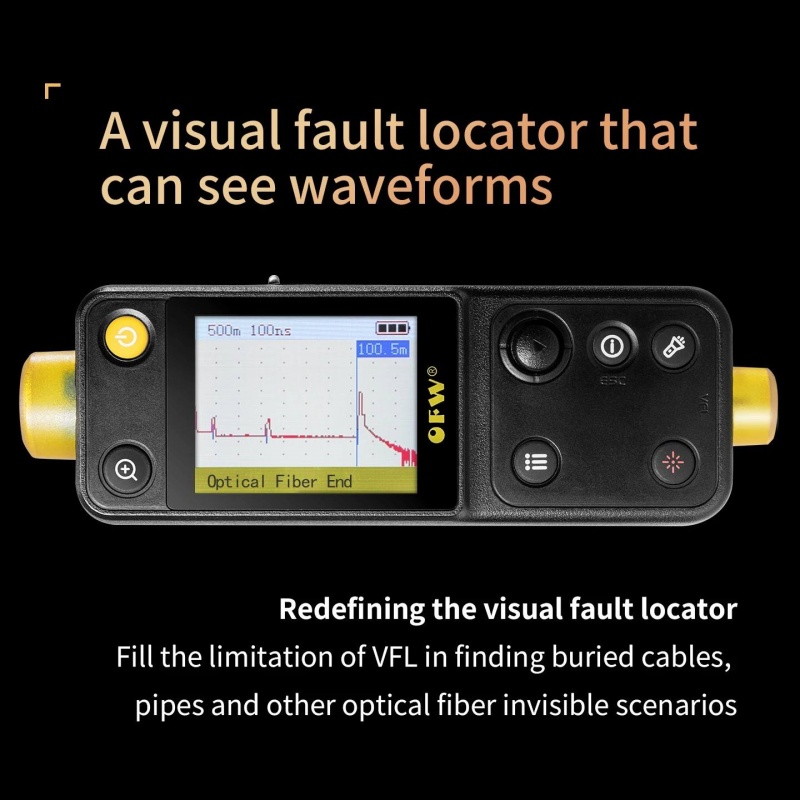

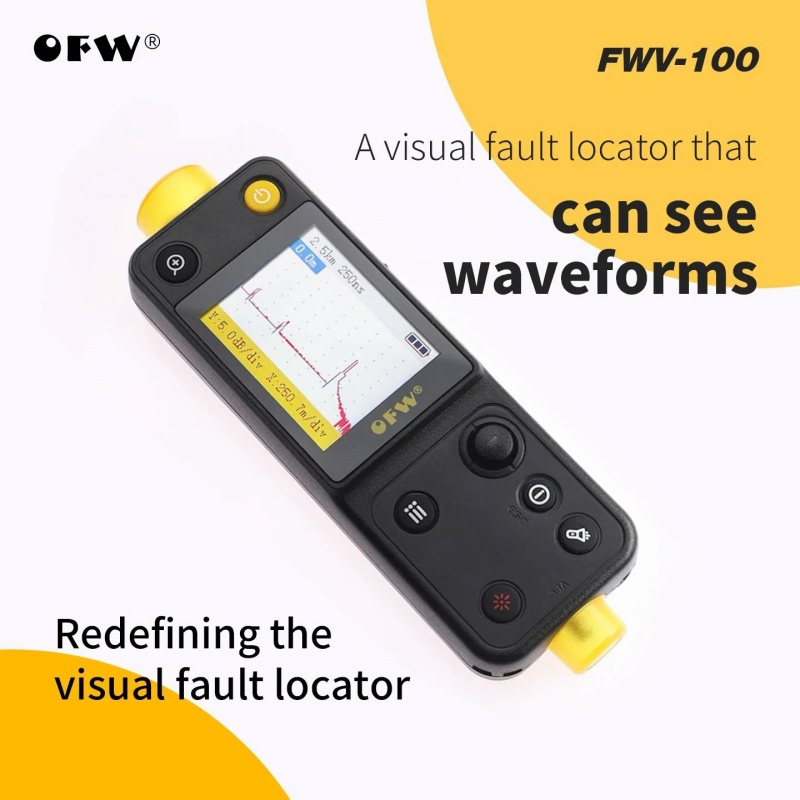

Redefining The Visual Fault Locator
Small Screen Displays Accurate Test Results
Hard Shell, Anti-Drop And Anti-Pressure
Built-in 900mAh Lithium Battery
Type-C Charging Port
Rocker+Press Button

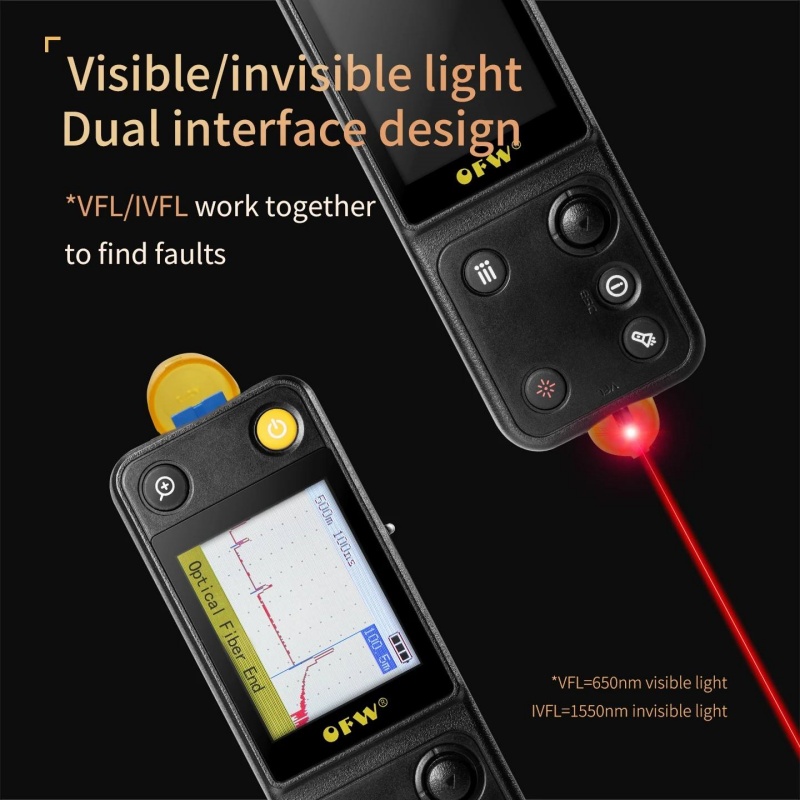

Visible/Invisible Light, Dual Interface Design.
IP54 Dust-proof/Waterproof Packaging
Specifications
VFL | |
Wavelength | 650±20nm |
Operation Mode | CW, 3Hz Glint |
Quick Start | Support |
Output Power | 10mW/30mW(Optional) |
Connector | 2.5mm Universal Connector |
Optic Fault Finder | |
Wavelength | 1550±10nm |
Distance Resolution | The Waveform Can Display 5m Patch-Cord |
Distance Accuracy | 0.1% |
Live Test
| GPON/EPON input light source power ≤ 0dBm, XGPON/XGSPON input light source power ≤+7dBm |
Connector | SC/PC |
LED | |
Quick Start | Support |
Parameters | |
Screen | 1.88-inch Color Screen |
Charging Port | Type-C |
Battery Capacity | 900mAh |
Operating Time | VFL Only > 4 Hours, IVFL Only > 6 Hours |
Operating Temperature | 0~50℃ |
Relative Humidity | 10~90% No Condensation |
Size | 141*45*24mm |
Weight | 120g |
