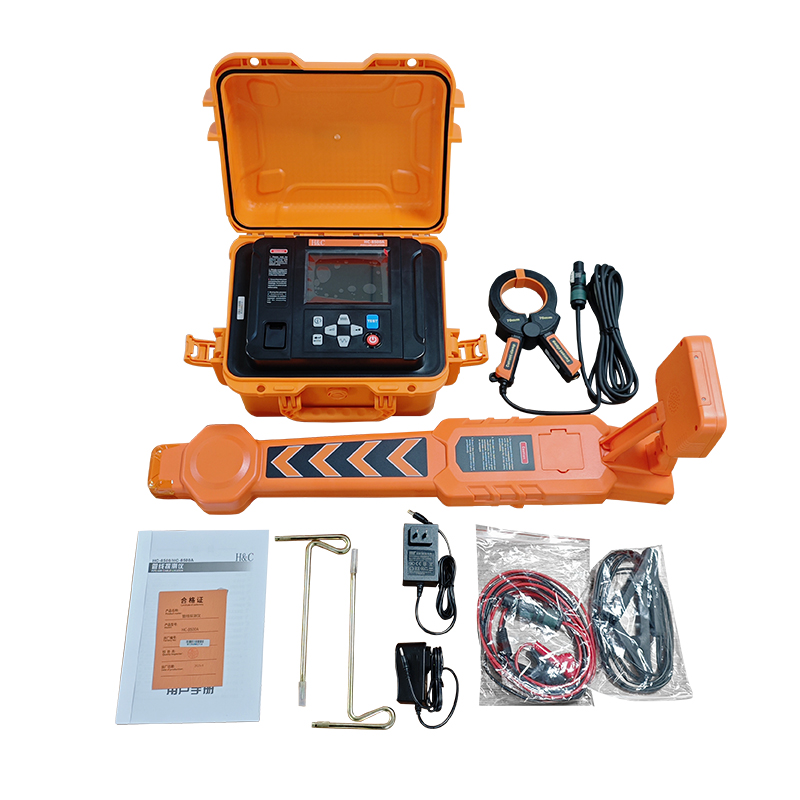

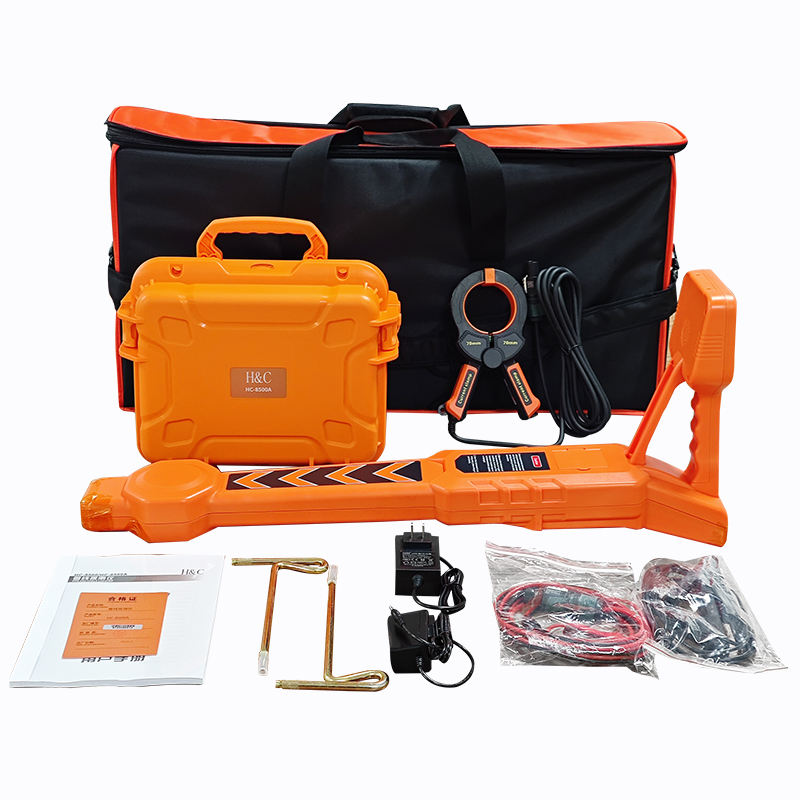

HC-8500/HC-8500A cable detector is a comprehensive instrument, used to track the pipeline route, measure the depth of the underground pipeline and identify the target pipeline.
Features
1. Detection Mode: Classic Mode, Plan View Mode, Signal Curve Mode
Classic Mode
Compass, direction and signal amplitude display, intuitively showing the left and right directions of the pipeline.
Plan View Mode
360° all-round pipeline path indication, continuously displaying depth, current and relative position of the pipeline. The interface is simple and intuitive.
Signal Curve Mode
It can display historical signal strength curves and find the location of cables by observing changes in signal strength curves at different locations.
2. Current direction identification for some frequencies
it can eliminate adjacent line interference and prevent tracking errors by calibrating the current direction.
3. Sweep Test
Users can select the appropriate signal frequency for pipeline measurement through the frequency sweep results to avoid co-frequency interference.
4. 12 active detection frequencies and 4 passive detection frequencies

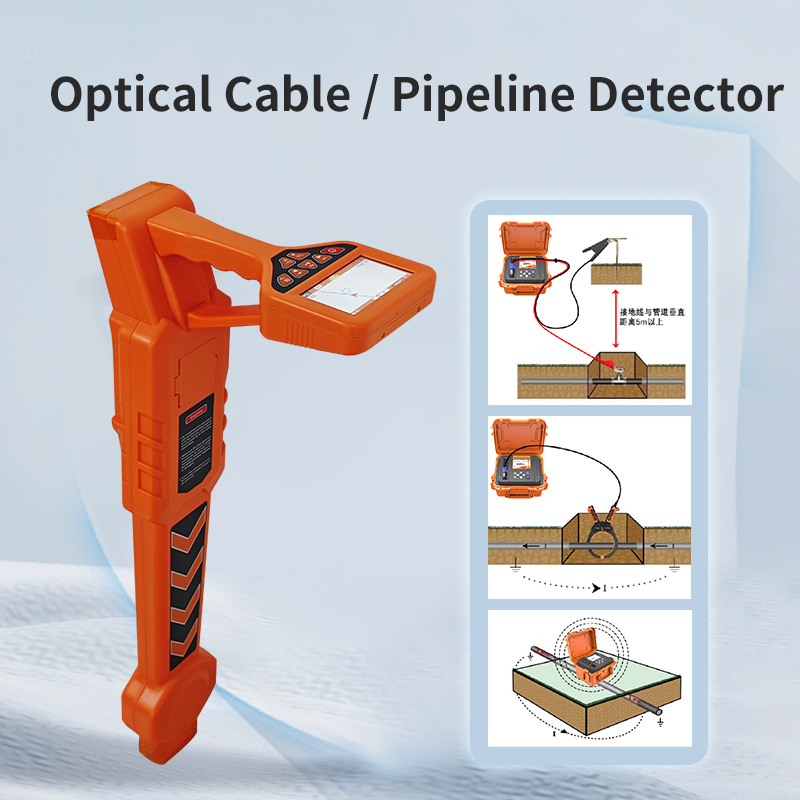

5. Multiple signal output methods for the transmitter: direct output, signal coupling, induction method.
6. Amplified power output for the transmitter, fully automatic impedance matching, and fully automatic protection.
7. Built-in light under the instrument to facilitate night operations
Specifications
Receiver | |
Function | Buried Cables/ pipeline Location Energized cable identification DE-energized cable identification |
Power Supply | 7.4V DC 6400mAh rechargeable Li-ion battery pack |
Receiving Configuration | Built-in receiving coil Rogowski coil Stethoscope(Remote Antenna) |
Bluetooth communication | Bluetooth communication Connecting to mobile apps for various data processing |
Receiving Frequency | Active detection frequency：128Hz、512Hz、577Hz、640Hz、1024Hz、1280Hz、2.56kHz、3.20kHz、4.09kHz、8.19kHz、9.50kHz、9.80kHz、10kHz、33kHz、66kHz、82kHz、83.1kHz、89kHz、133kHz、201kHz Passive detection frequency：50Hz、60Hz |
Locating Mode | Broad Peak Mode, Peak Response Mode, Null Mode |
Locating Mode and Screen | Classic Mode, Plan View Mode, Signal Curve Mode; |
Depth Measurement Accuracy | ±5%(depth below 3m) ±10%(depth from 3m to 20m) |
Target Cable Direction Identification | During the cable route locating, the pinpoint arrow points to the target cable under test. |
Sound Indication | FM: Sound pitch changes with signal strength |
Anti-interference ability | The extremely narrow receiving frequency band can fully suppress power frequency and harmonic interference from adjacent running cables and pipelines. |
Cable Identification | Rogowski Coil; Stethoscope(Remote Antenna) Calibration Cable: 1-10 Calibration value: The percentage of the received signal and the transmitted signal Successful Identification: 75%~135% The transmitting clamp, receiving clamp and loading signal must be in the same direction |
LED night lighting | Flashlight installed in the receiver |
LCD | 4.3-inch color screen |
Dimensions | Approx. 311mm(L) x133mm(W) x750mm(H) |
Weight | Approx. 2.0kg |
Charger | DC 8.4V 1A |
Flashlight Power | 1W max |
External Connector | Mini-B USB socket for firmware updates: 1 DC charging port: 1 Flexible coil connection socket: 1 |
Rogowski Coil | L: approx. 620mm Wire Diameter: φ8mm |
Coil Diameter | φ200mm, customized |
Stethoscope Dimension | L: 111mm x W: 60mm x H: 27mm, optional |
Length of Lead Wire | Stethoscope: Approx. 3m |
Working temperature and humidity | -10℃ ~ 40℃ Below 80%Rh |
Storage temperature and humidity | -10℃ ~50℃ ≤95％RH, no condensation |
Dielectric Strength | AC2000V/rms(Between the upper and lower ends of the housing) |
Safety Regulation | IEC61010-1 CAT Ⅲ 600V, IEC61010-031, IEC61326, Pollution level 2 |
Transmitter/Tx | |
Function | Multiple frequency signal transmission |
Power Supply | 11.1V DC 12800mAh Rechargeable lithium-ion battery pack |
Locating Method | Direct Connection Signal Coupling Induction |
Output Frequency | 128Hz、512Hz、577Hz、640Hz、1024Hz、1280Hz、2.56kHz、3.20kHz、 4.09kHz、8.19kHz、9.50kHz、9.80kHz、10kHz、33kHz、66kHz、82kHz、83.1kHz、89kHz、133kHz、201kHz |
Output Power | 10W max. 10 power gears available |
Impedance | Fully automatic real-time impedance matching and protection functions |
Output voltage for direct connection | 150V max |
Circuit protection | Overload and short-circuit protection |
LCD | 5.6-inch LCD color screen |
Dimension of Transmitter | Appro L: 259mm x W: 211mm x H: 105mm |
Weight | Transmitter: approx. 3.00kg Transmitting Clamp: approx. 1.12kg |
Charger | DC 12.6V 2A |
Transmitting Clamp | Dimension: L210mm x W140mm x H38mm |
Diameter: φ70mm | |
Lead wire: 3m | |
Red Test Lead: 3m Black Test Lead: 3m | |
External Connector | Type-B USB socket for firmware updates: 1 DC charging Port: 1 Signal transmitting clamp connection socket: 1 Direct connection test lead interface: 2 |
Pressure Resistance | The case can withstand weight of approx 200kg |
Dielectric Strength | AC 3700V/rms(Between the upper and lower ends of the housing) |
EMC | IEC61326(EMC) |
Safety Regulation | IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution Level 2) |
