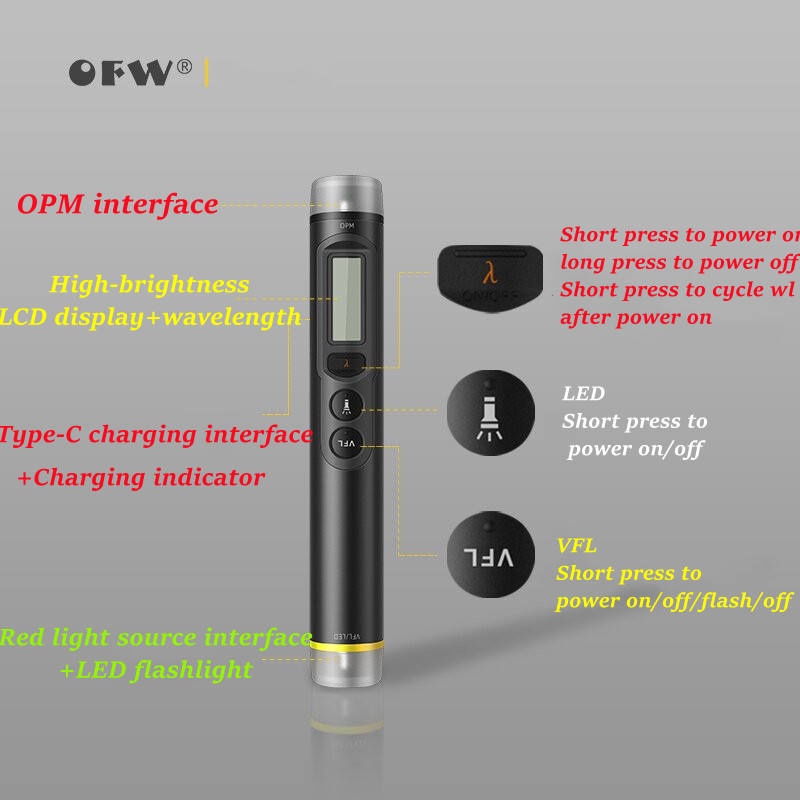

Features
Easy to test the optical fiber failures
Strong and durable all-aluminum body
1800mAh lithium battery

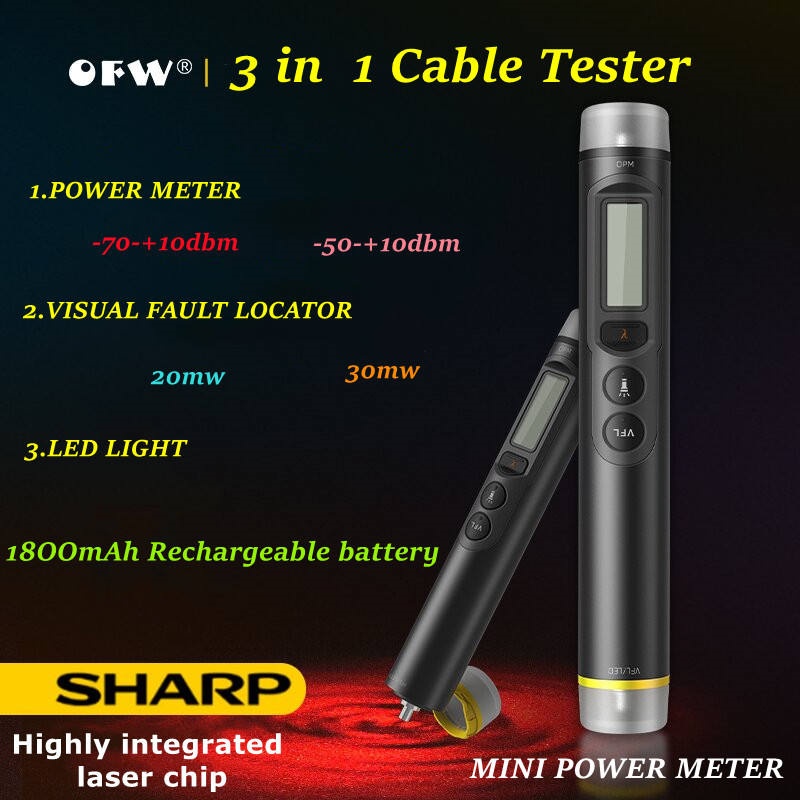

One device for many uses VFL size, also has the function of OPM and LED

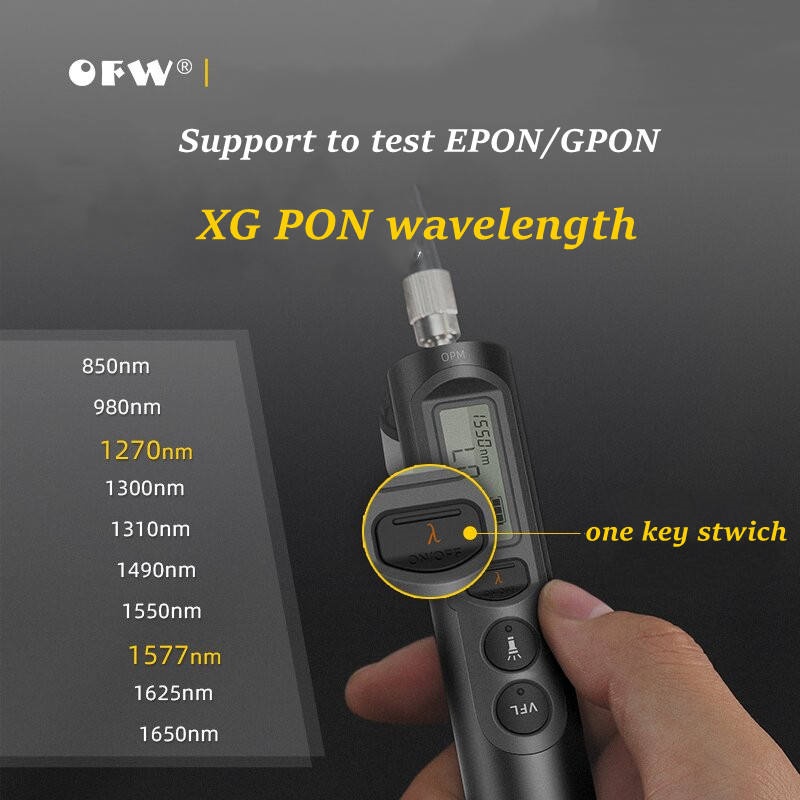

Support 10 wavelength tests; Compatible with mainstream XGpon 1270/1577 wavelength
Ip54 dust and water proof design
Specifications
Pen-type Optical Power Meter | |
Model | FWV-05 |
PD Type | InGaAs |
Response Wavelength | 700~1700nm |
Calibrated Wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
OPM Connector | 2.5mm universal connector |
Display Range | T: -70~+10dBm C: -50~+30dBm |
Accuracy | ±0.2dB(1310/1550nm) ±0.3dB(850/980/1300/1490/1625/1650nm) ±1dB(1270/1577nm) |
Resolution | 0.01dBm |
Unit | dBm |
Wavelength Identification | Support |

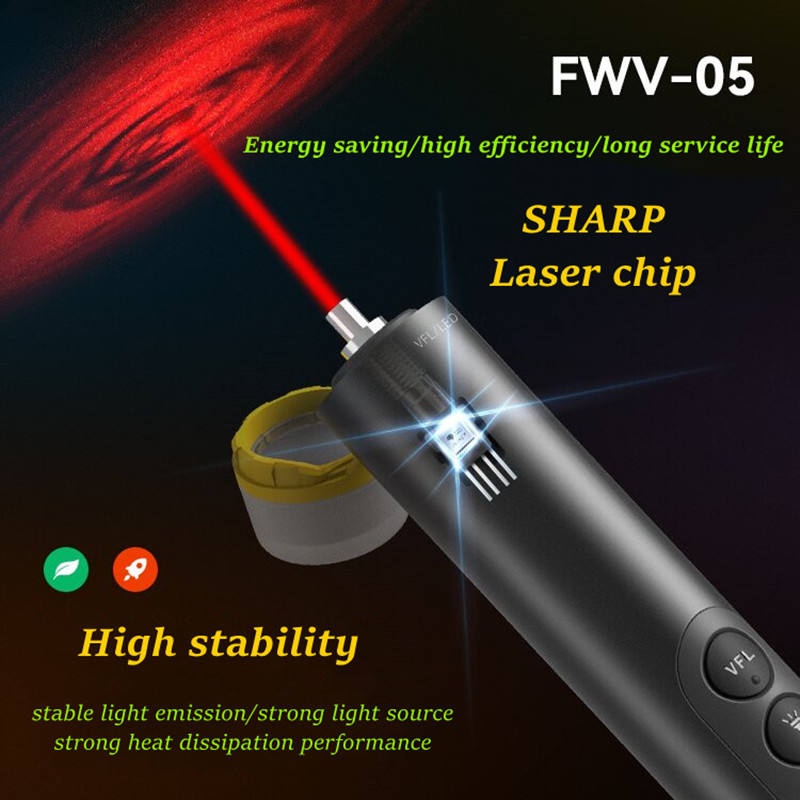

Visual Fault Locator Parameters | |
Power | Max. 30mW |
Wavelength | 650±20nm |
Operation Mode | CW/2Hz glint |
Other Parameter | |
LED | Support |
Energy Saving | Support |
Screen | LCD |
Connector | Type-C |
Battery | Lithium battery 1800mAh |
Time of Use | 180H (TYPE, power meter mode only, backlight off) |
Storage Temperature | -20 ~70℃, ＜90%RH |
Operating Temperature | 0 ~50℃, ＜90%RH |

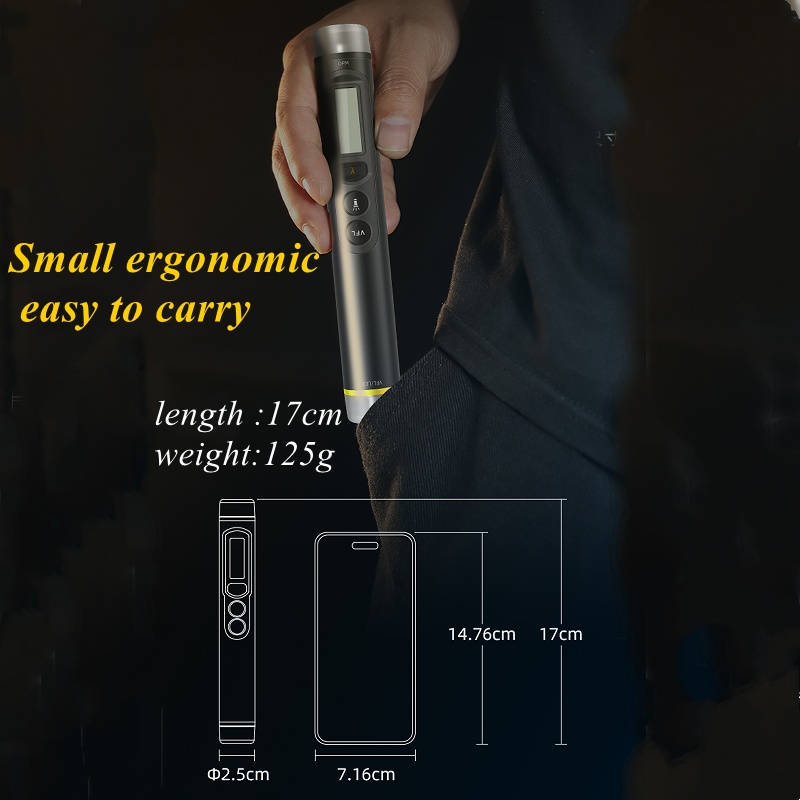

Size | Ø25mmx170mm |
Weight | 125g |
