Y12 Smart Optical Power Meter & VFL & LED Light 3-in-1 Designed for global ISPs and Telcos, the Y12 is not just a tool, but a smart maintenance terminal. It integrates a high-precision InGaAs detector, Up to 30mW maximum powerful VFL, and Can be customized intelligent App connectivity. Whether for traditional broadband or next-gen networks, the Y12 delivers precision and efficiency.
Features
All-in-One Tester
Integrates high-precision OPM, high-power VFL, and LED light in one compact device for complete field testing.

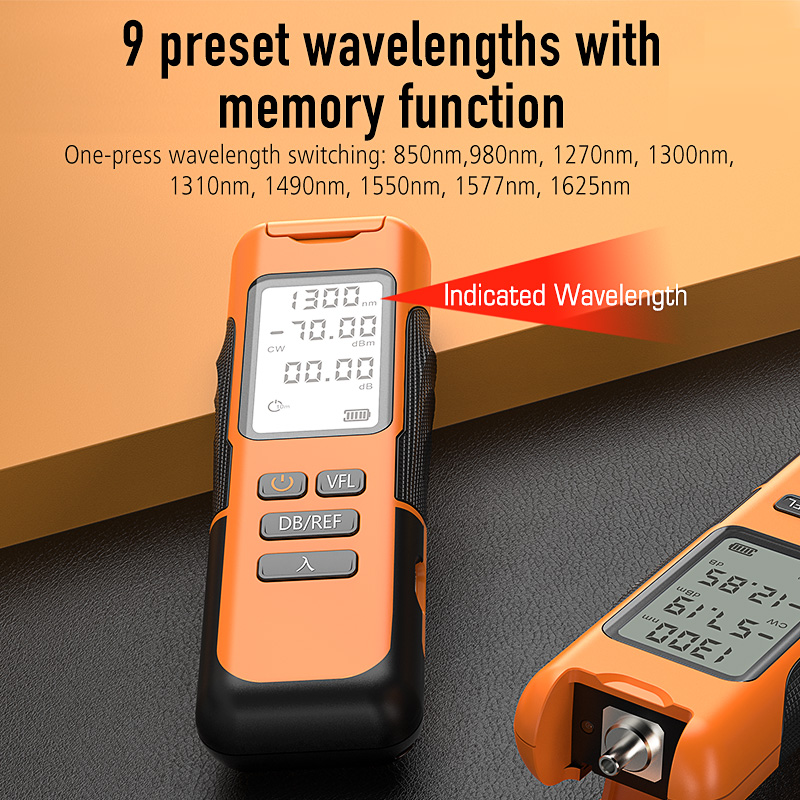

Full Wavelength Coverage
Supports 9 standard wavelengths from 850nm to 1625nm,one-button switching for FTTx, CATV, 5G front-haul networks.
Ultra-High Accuracy
InGaAs detector ensures measurement error< ±0.2dB for professional-grade results.
Powerful Red Laser
650nm VFL with optional output power up to 30mW(5/15/20/30mW selectable), effective fault detection up to 30km, with continuous/flashing modes.
Specifications
Wavelength range(nm) | 850-1625 |
Detector type | InGaAs |
Measurement range(dBm) | -70-+6, -70-+10, -50-+26 |
Uncertainty | ±5% |
Standard wavelength(nm) | 850,980,1270,1300,1310,1490,1550,1577,1625 |
Display resolution | Linear: 0.1%, Logarithmic: 0.01dB |
Red light wavelength(nm) | 650(optional) |
Red light power(mw) | 5, 15, 20, 30(optional) |
Tone frequency(Hz) | 270, 1000, 2000 |
Data storage capacity | 40 records |
Input voltage | 5V |
Operating temperature(℃) | -10-+60 |
Storage temperature(℃) | -25-+70 |
Auto power-off time | 10min |
Battery runtime | >48h |
Power source | Rechargeable lithium-ion battery |

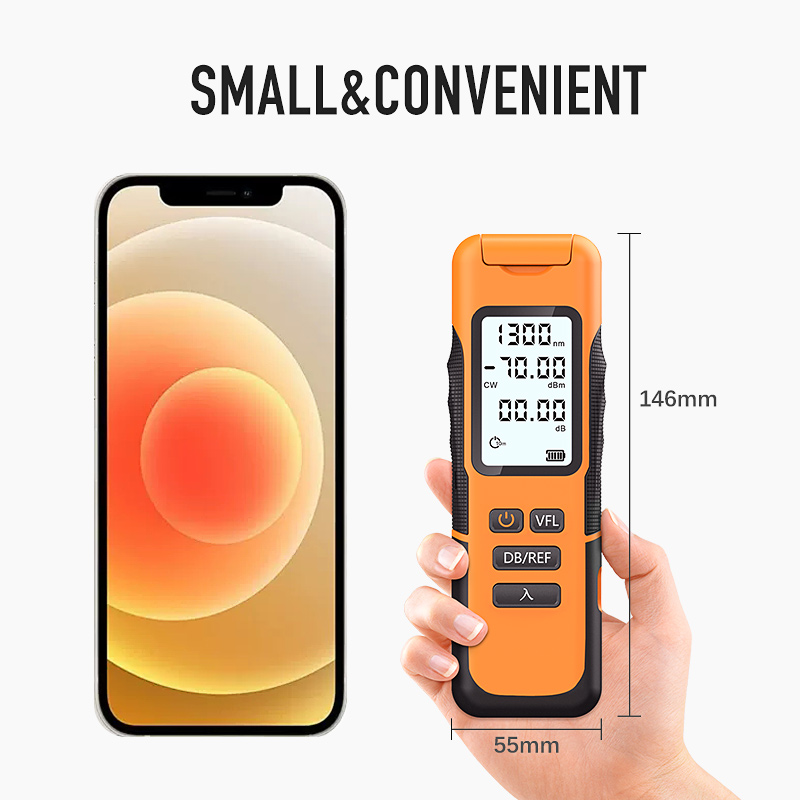

Dimension(mm) | 55x26x146 |
