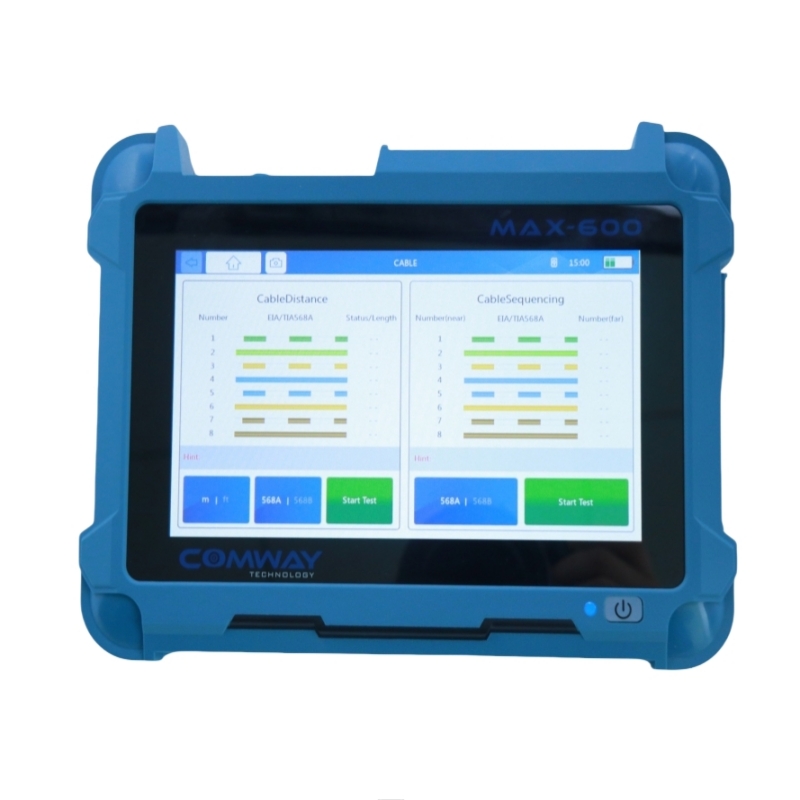

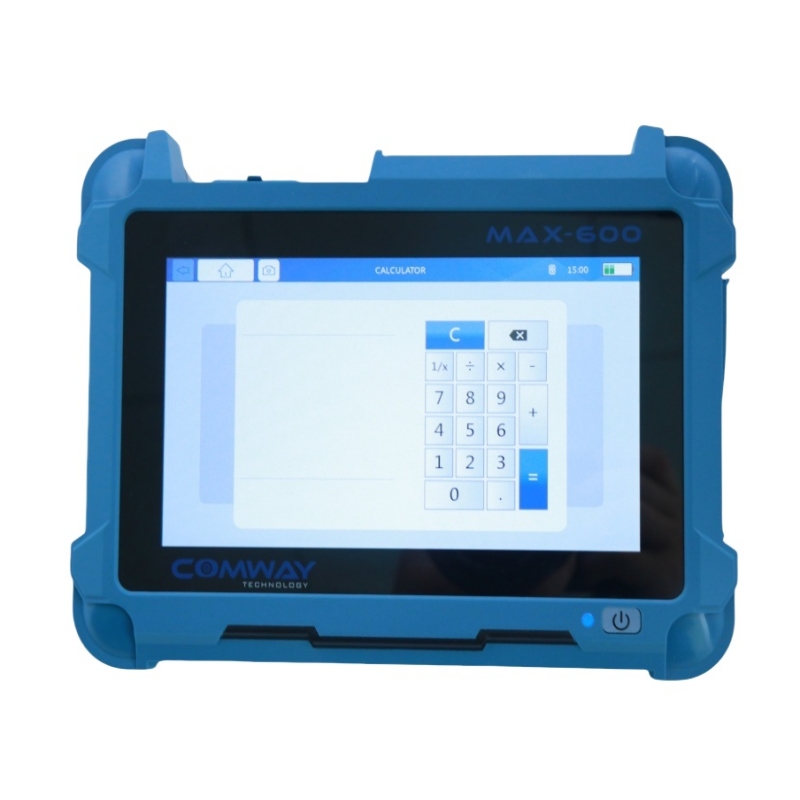

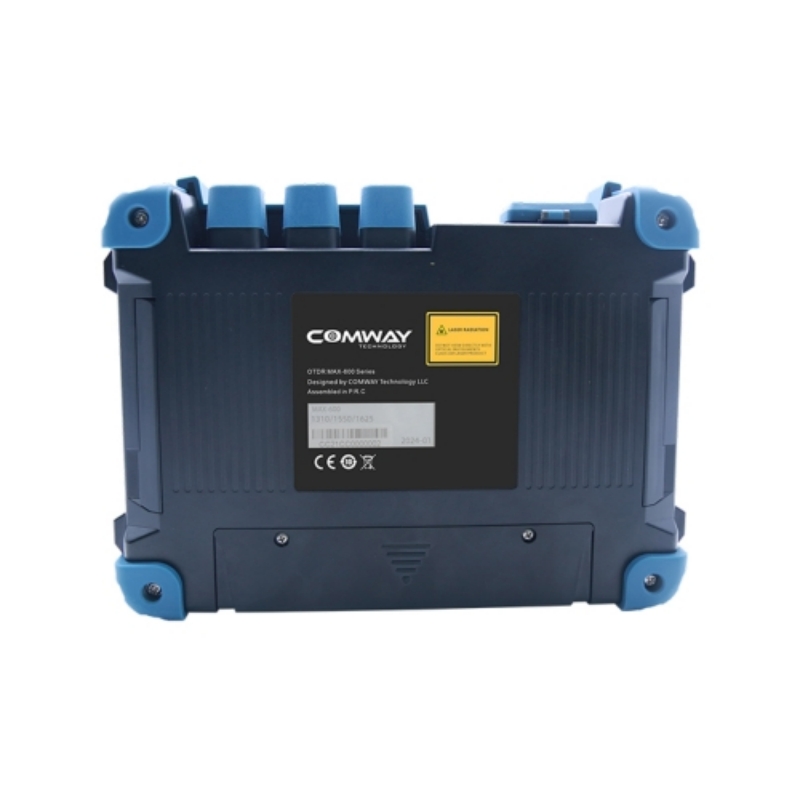

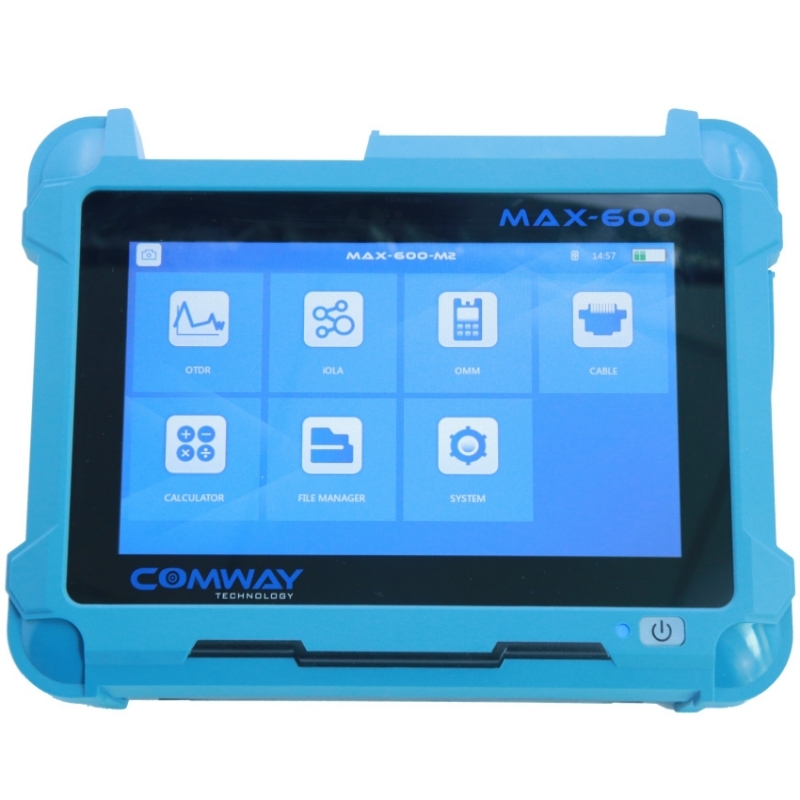

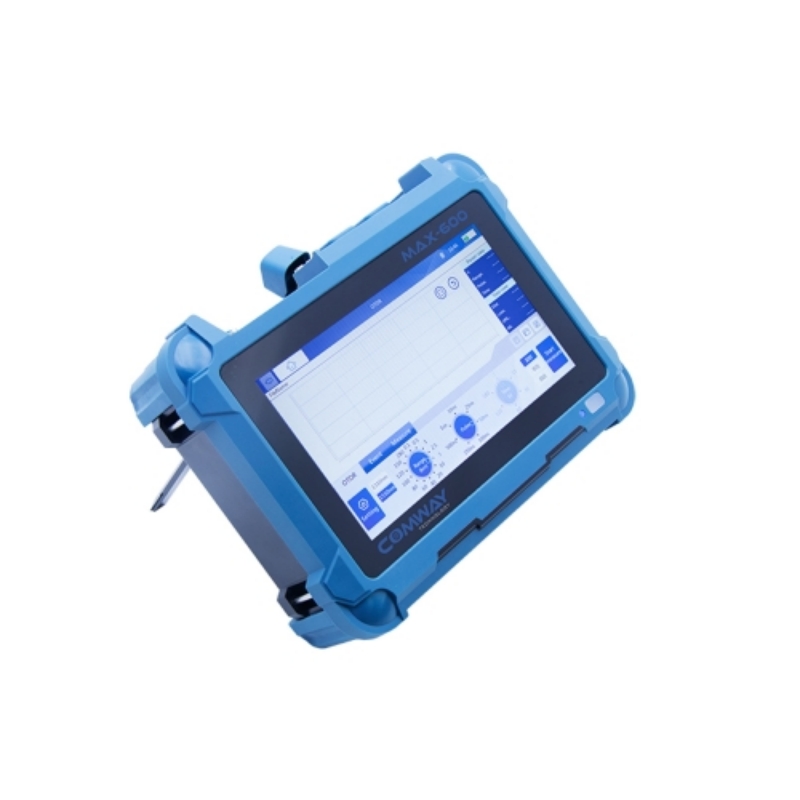

Unleash unparalleled performance with our cutting-edge optical time-domain reflectometer (OTDR). Designed for telecom professionals, the Max-600 boasts lightning-fast measurements, ultra-high resolution, and robust reliability. Whether you’re troubleshooting fiber networks or certifying installations, the Max-600 is your ultimate ally.
Features
Applicable fiber: SM/MM
Memory storage > 80,000 OTDR traces
≤O.8m extra-short event dead zone
With power meter&VFL, Map Link (iOLA)
Up to 45/43dB high dynamic range
7.0-inch outdoor-enhanced touch screen
Specifications
Module | M1 | M2 | M3 | M3S | M4 |
Wavelength(nm) | 1310/1550 | 1310/1550 | 1310/1550/1625 | 1310/1550/1625 | 850/1300/1310/1550 |
Wavelength Accuracy(nm) | ±20 | ||||
Dynamic range(dB) | 32/30 | 40/38 | 39/38/38 | 36/34/32 | 26/26/36/34 |
Event dead zone(m) | 0.8 | 0.8 | 0.8 | 0.8 | SM≤0.8m, MM≤0.8m |
Attenuation dead zone(m) | 5 | 4 | 4 | 4 | SM≤3m, MM≤5m |
Pulse width(ns) | 5ns/10ns/25ns/50ns/100ns/250ns/500ns/1μs/2.5μs/5μs/10μs/20μs | ||||
Distance range | 100m/500m/1km/2.5km/10km/20km/40km/60km/80km/100km/120km/150km/280km | ||||
Distance uncertainty(m) | ±(0.8+0.005% x distance+sampling resolution) | ||||
Linearity(dB/dB) | ±0.03 | ||||
Loss threshold(dB） | 0.01 | ||||
Loss resolution(dB) | 0.001 | ||||
Measurement time | 5s-5mins, real-time | ||||
Real-time refresh(Hz) | 4 | ||||
Power meter | -50~+26dBm, 850/1300/1310/1490/1550/1625nm, FC or SC adapter | ||||
VFL | 650nm±10nm, 10mW | ||||
Display | 7-inch(178 mm) outdoor-enhanced touchscreen, 800x480TFT | ||||
Interfaces | One USB 2.0 port; RJ-45x1, LAN,10/100 Mbit/s, Micro SDx1. | ||||
Storage | >10000 results(SOR or PDF) | ||||
Battery Life | 7.4V, 4600mAh lithium battery pack | ||||
Power consumption | <3W | ||||
Power supply | Power supply AC/DC adapter, AC input 100-240V, 50-60Hz, DC out 12V, 1.5A | ||||
Applicable environment | Operating temperature range:-10℃~+50℃, Relative humidity:-40℃~+70℃ | ||||
Dimensions(WxHxD) | 215*152*64mm | ||||
Weight(including battery) | 1.0kg | ||||
