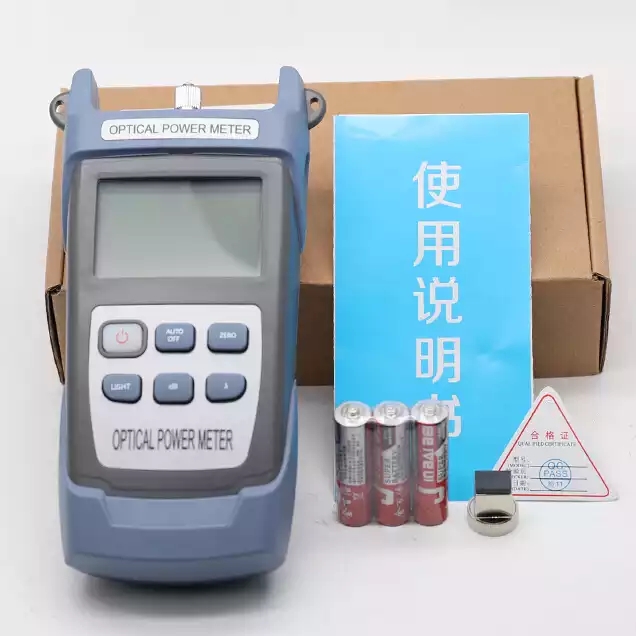

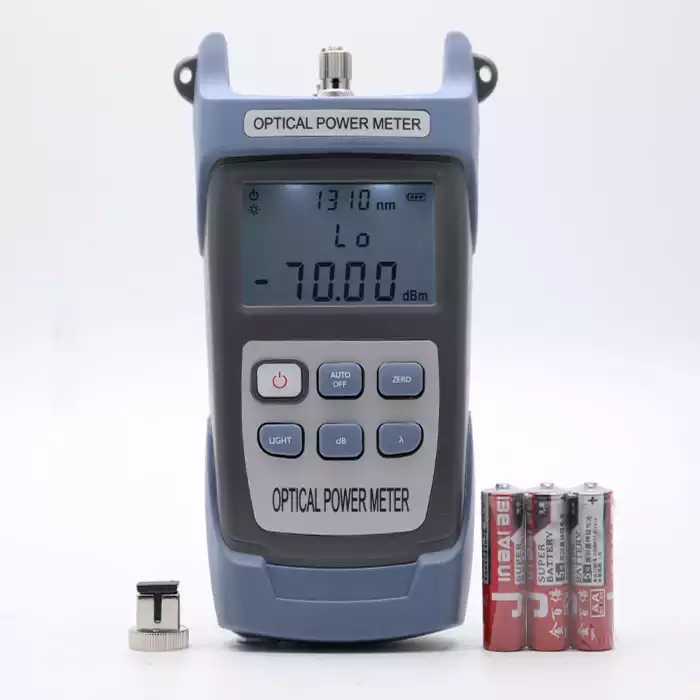

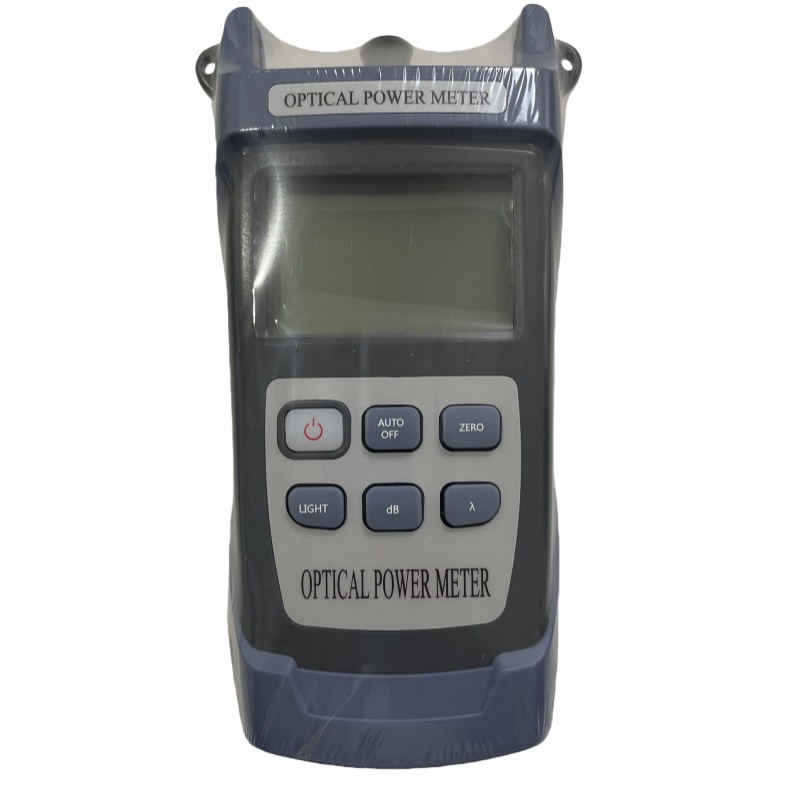

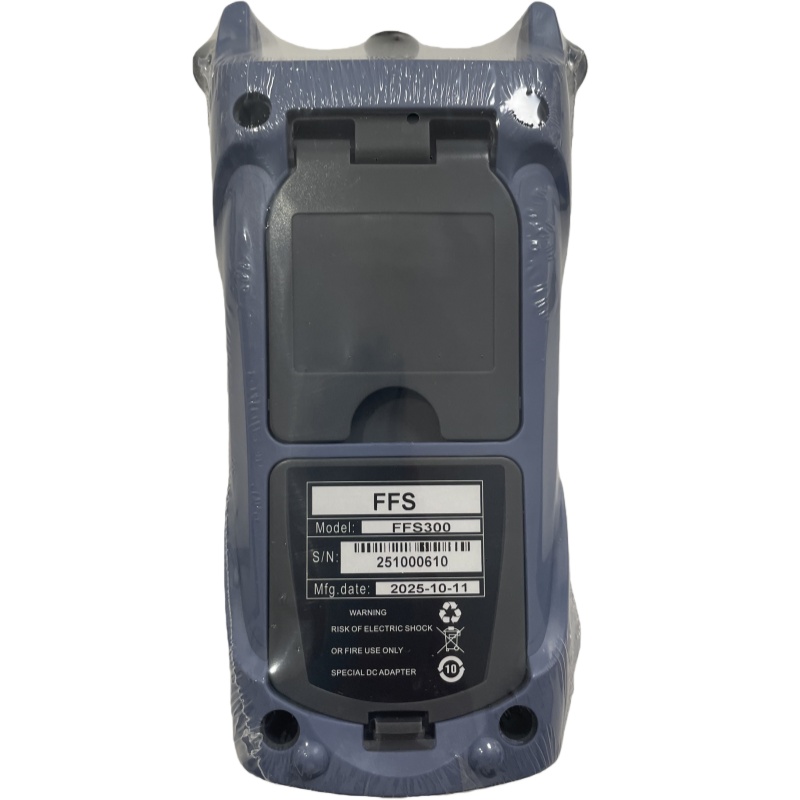

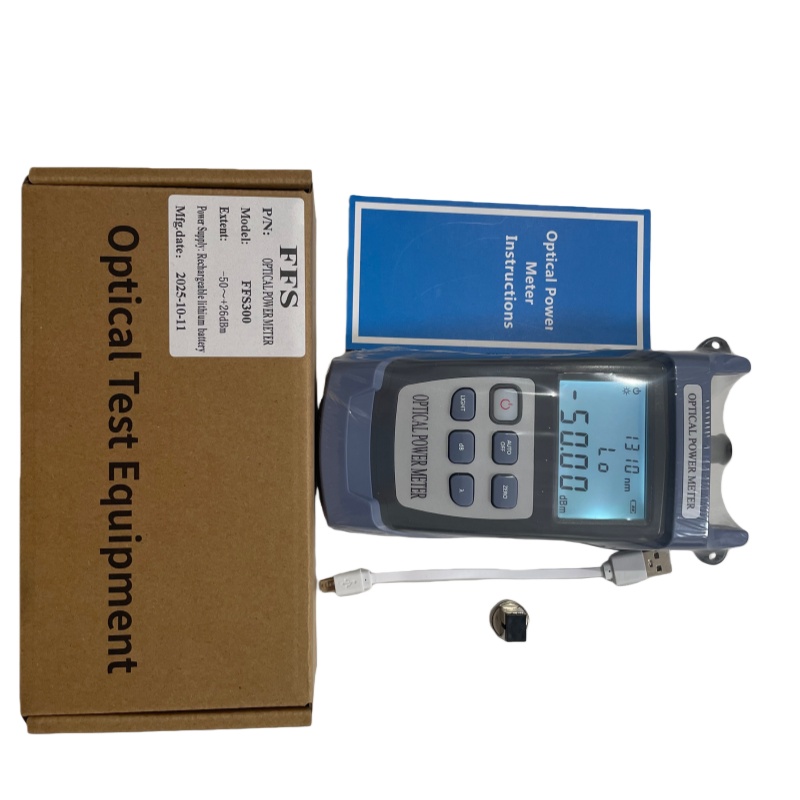

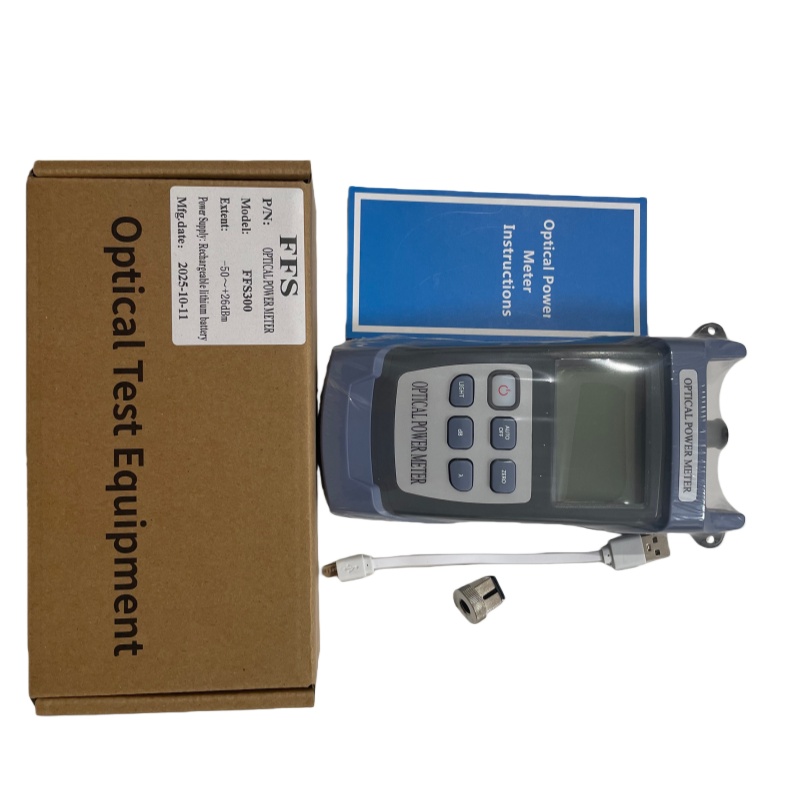

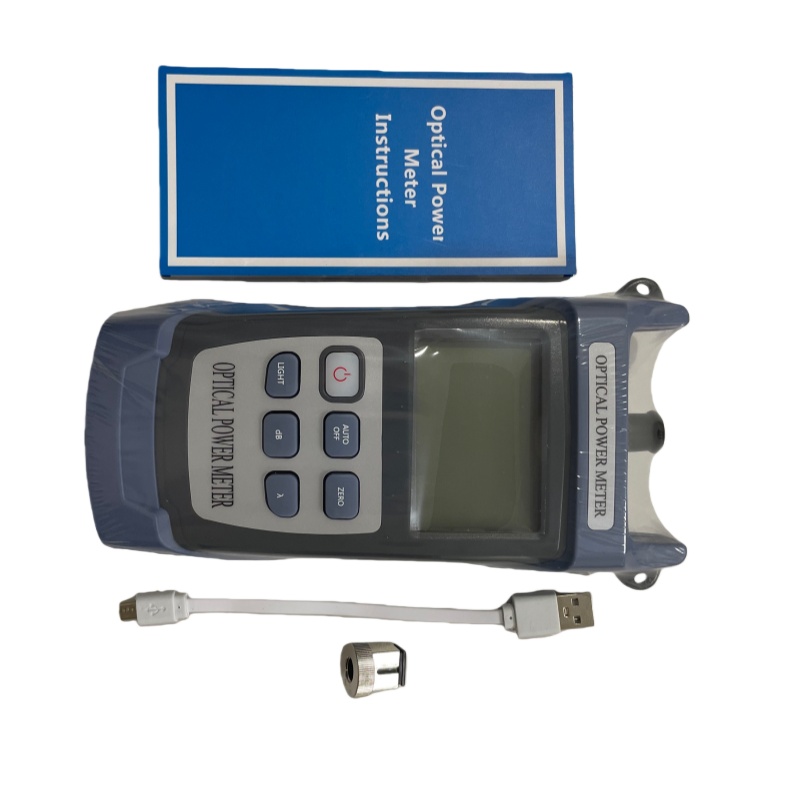

FFS300 Power Meter is specifically designed for the network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of network of FTTX.
Features
Support linear mw and nonlinear index dBm simultaneous display
Support automatic shutdown
Support backlight selection
Support user self-calibration
Support restore factory settings

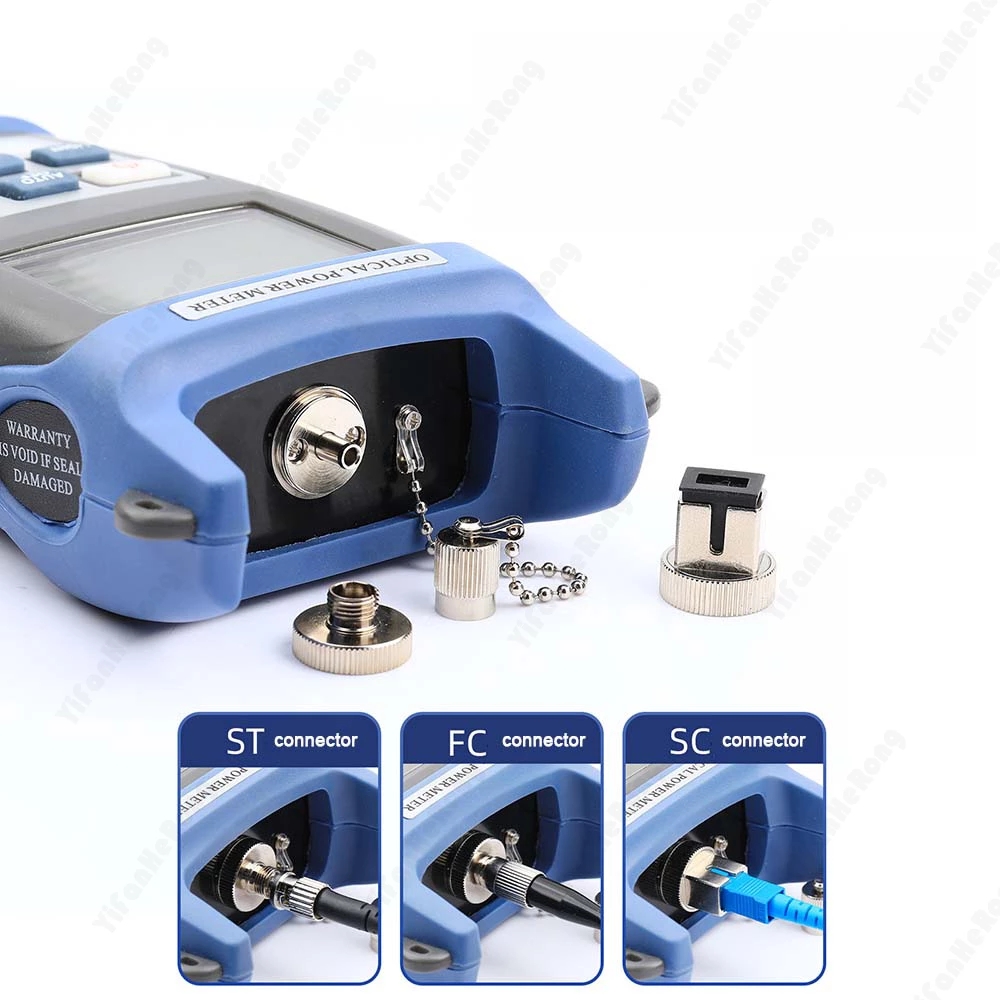

Supports FC, SC, and ST interfaces
Working time is longer than 120 hours
Specifications
Wavelength range | 800nm~1700nm | 800nm~1700nm |

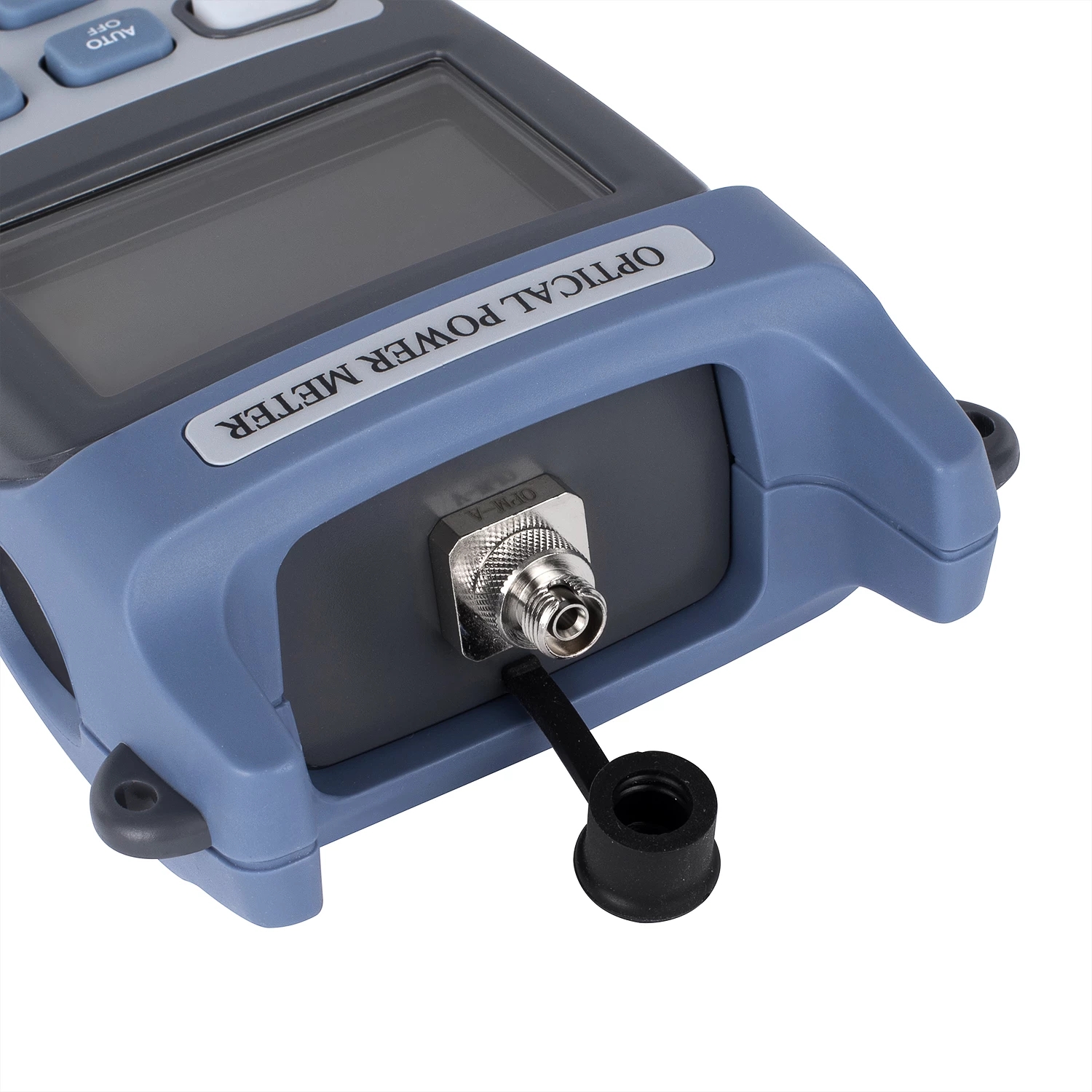

Optical Connector | FC/SC/ST | FC/SC/ST |
Detector type | InGaAs | InGaAs |
Measurement range | -70dBm~+10dBm | -50dBm~+26dBm |
Accuracy | ±5% | |
Standard wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
Display resolution | mw: 0.1%, dBm: 0.01 | |
650nm VFL(optional) | 2mw/5mw/10mw/20mw/30mw/50mw | |
Laser source (optional) | 850/1300/1310/1490/1550/1625/1650nm | |
Laser source stability | 0.02dB | |
Working temperature | -10~+60℃ | |
Storage temperature | -30~+70℃ | |
Auto off time | 10 min | |
Battery continuous operating time | ≥120 h | |

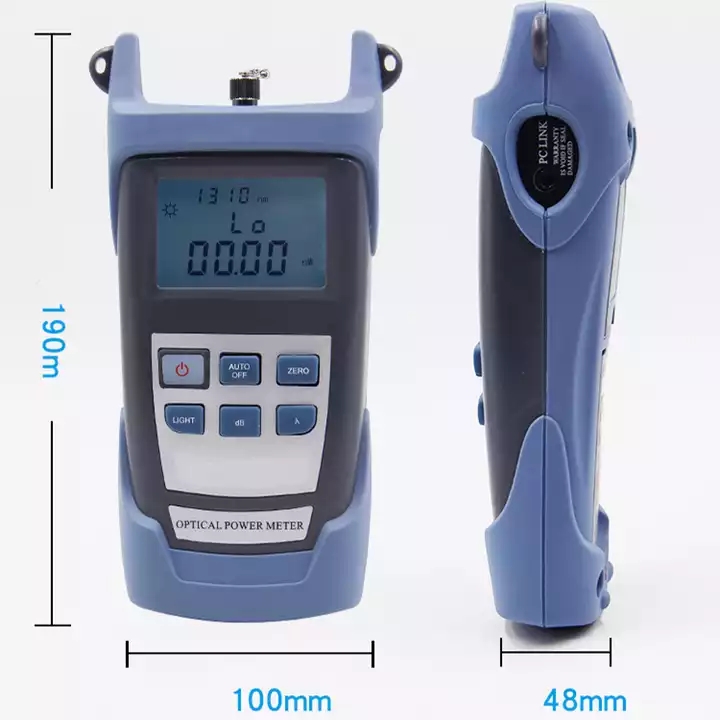

Structure size | 186mm*100mm*50mm | |
Power | Three section 5 batteries/Lithium battery (optional) | |
Instrument net weight | 240g | |
