Features

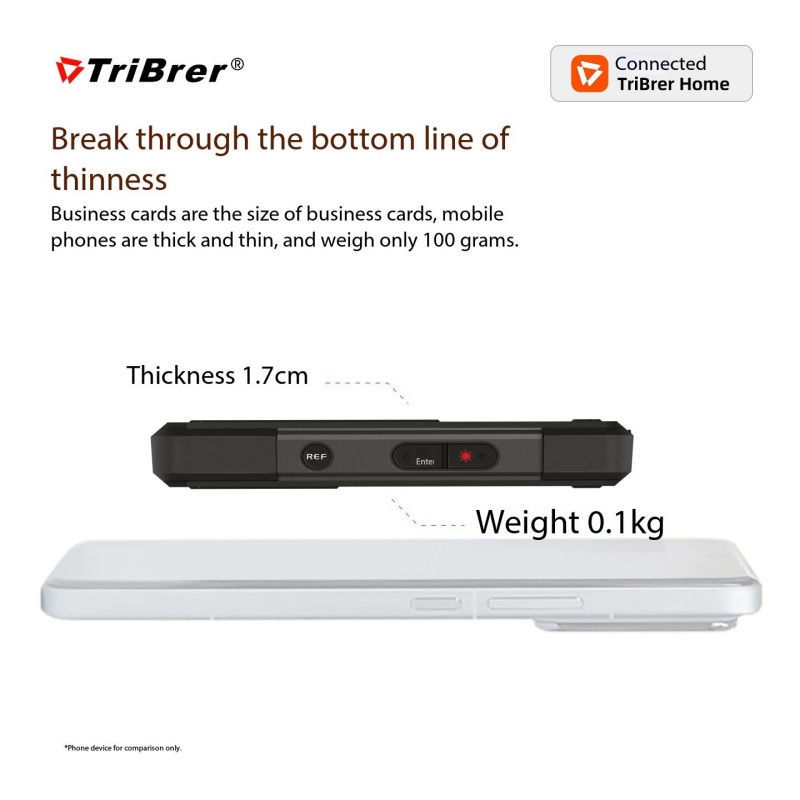

Pushing the Boundaries of Slimness: The Size of a Business Card, the Thickness of a Smartphone, just 100g.
Cross-Platform Compatibility: Supports both Android and iOS devices, breathing new life into older equipment.
Standalone Functionality: Access essential tools, such as the optical power meter and VFL, instantly upon startup, no need to connect to a mobile phone.
Scan and Go: Effortlessly Seamless
One-tap sharing of test results
All-new check-in and storage mode: track every drop of sweat

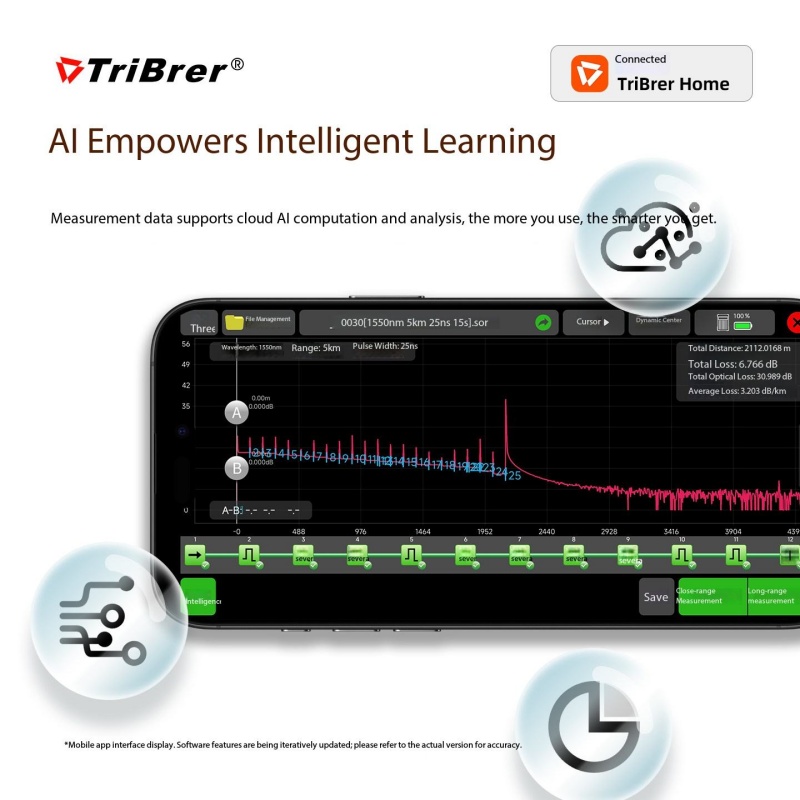

Measurement data powered by cloud-based AI: get smarter the more you use it
Specifications

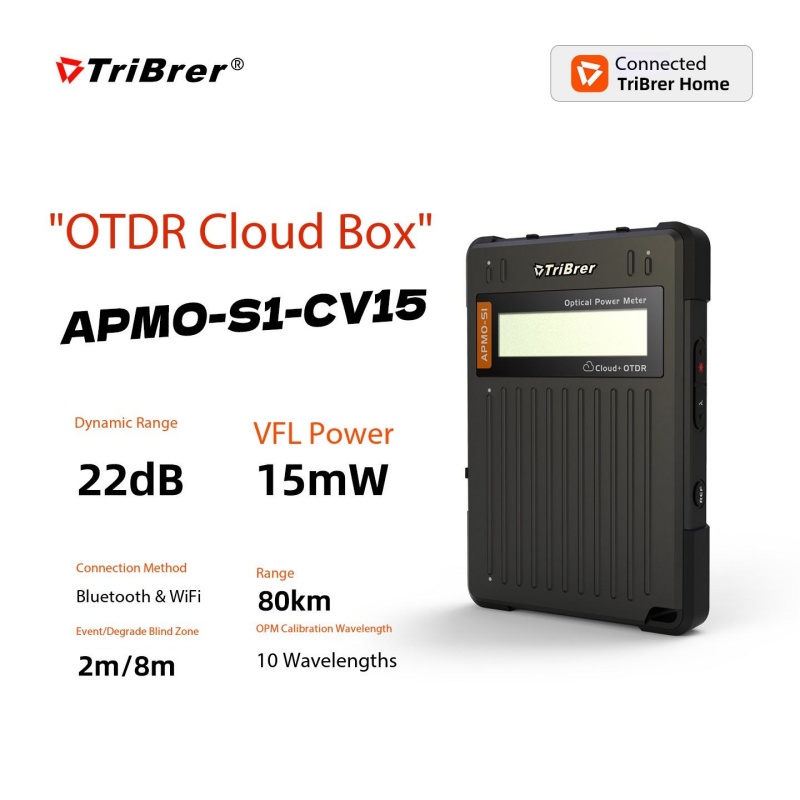

Model | APMO-S1-CV15 |
OTDR Functions | |
Connector Type | Bluetooth/WiFi |
Wavelength | 1550nm |
Dynamic Range | 22dB |
Event Dead Zone | 2m |
Attenuation Dead Zone | 8m |
Test Range | 0.1~80km |
Pulse Width | 5ns-20us |
Measurement Mode | Smart mode/Pro mode |
Live Test | Support |
OTDR/OLS Connector | SC/UPC |
OPM Functions | |
Wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
Test Range | +26~-50dBm(C-type) |
Frequency Identification | Support |
Connector Type | Universal 2.5mm |
VFL Functions | |
Wavelength | 650±20nm |
Mode | CW, twinkling |
Output Power | 15mW |
Connector Type | Universal 2.5mm |
OLS Functions | |
Wavelength | 1550nm |
Output Power | ＞-5dBm |
Mode | CW/270Hz/1KHz/2KHz |
Connector Type | SC/UPC |
Battery | 3.7V, 1000mAh |
Charging Power | Type-C/5v, 0.5A |
Battery Life | >6H |
Working Temperature | 0℃~50℃ |
Storage Temperature | -20℃~70℃ |
Size | 102x72x17mm |
Weight | 100g |
