Applicable to base on FTTX and access network construction and maintenance, test the breakpoint, length and loss of the fibers.
Features

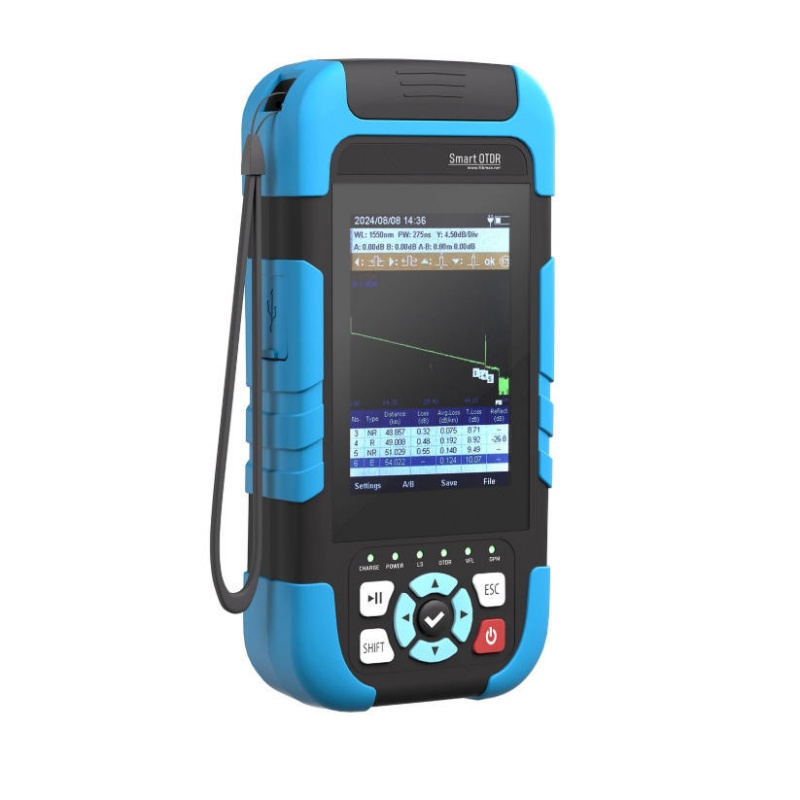

3.5-inch color touch screen
Testing range up to 90km
Event map ready
20 hours high capacity battery
Specifications
Model | TC-330 |
Wavelength | 1310/1550nm(Optional 1625nm for Live Testing) |
Dynamic range | 24/22dB |
Event Dead Zone(m) | 2.5 |
Attenuation Dead Zone(m) | 8 |
Distance range | 100m/500m/1km/5km/10km/20km/40km/60km/90km |
Pulse width | 5ns/10ns/20ns/50ns/100ns/200ns/500ns/1us/2us/5us/10us |
Distance Accuracy(m) | ±(1m+sampling interval+0.005%×measurement range) |
Linerity(dB/dB) | ±0.2 |
Sampling Points | 20000 |
Sampling resolution | 25cm~8m |
Loss resolution(dB/dB) | 0.001 |
Range resolution | 0.001m |
Refractive index | 1.00000-2.00000 |
Reflection accuracy | ±3dB |
File Format | SOR. |

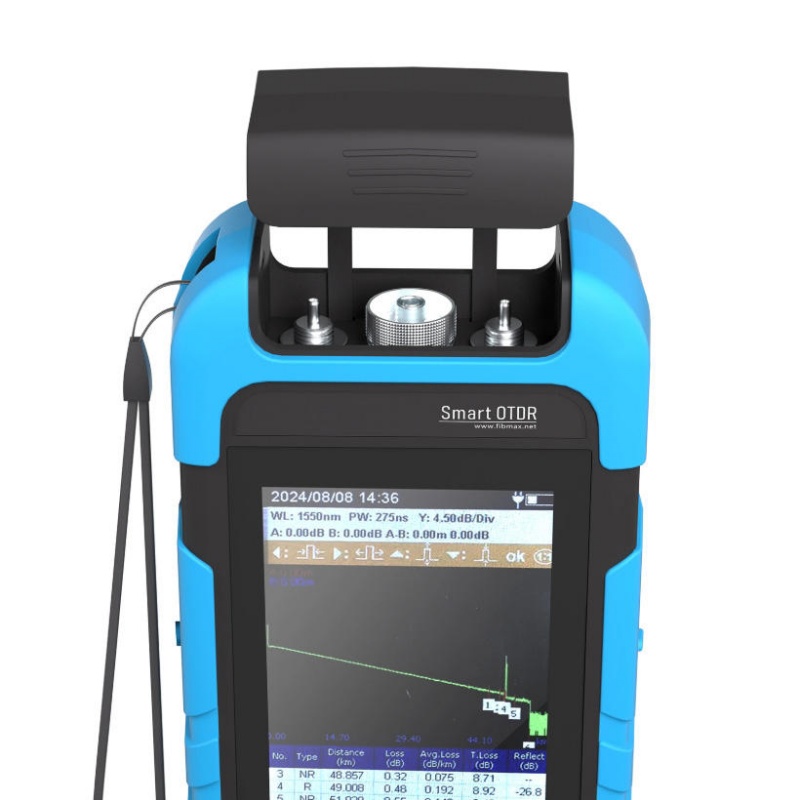

Optical connector | FC/SC/ST |
