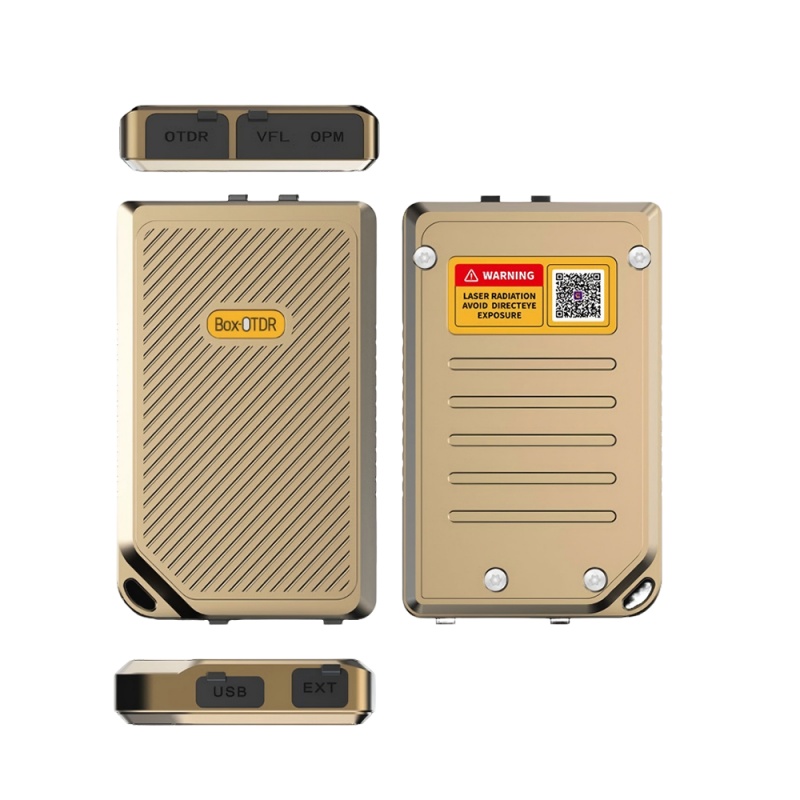

Box OTDR is a small modular OTDR that supports VFL and OPM. Adopting Type-C interface for power supply and communication, supporting mobile phone or tablet connection and control, data processing is achieved through the APP on the control end. This product adopts a metal structure shell, which is sturdy, durable, and resistant to pressure and falls; Can be applied to the maintenance and fault analysis of broadband fiber optic cables.
Features
Intelligent Analysis of AI Large Models
Test result voice broadcast
OTDR measurement results support PASS/FAIL judgment
Support automatic, real-time and average testing.
The highest sampling accuracy is 0.03m, and the maximum sampling point is 32000
Light detection and APD protection
Data is stored on mobile phones for easy report generation and data sharing
Equipped with guidance fiber and transmission fiber settings

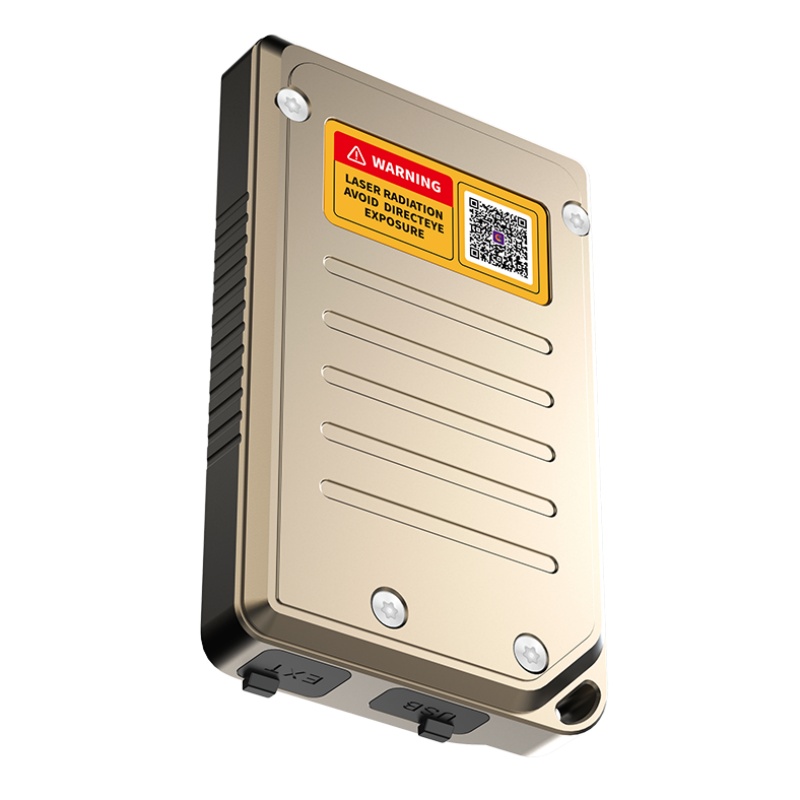

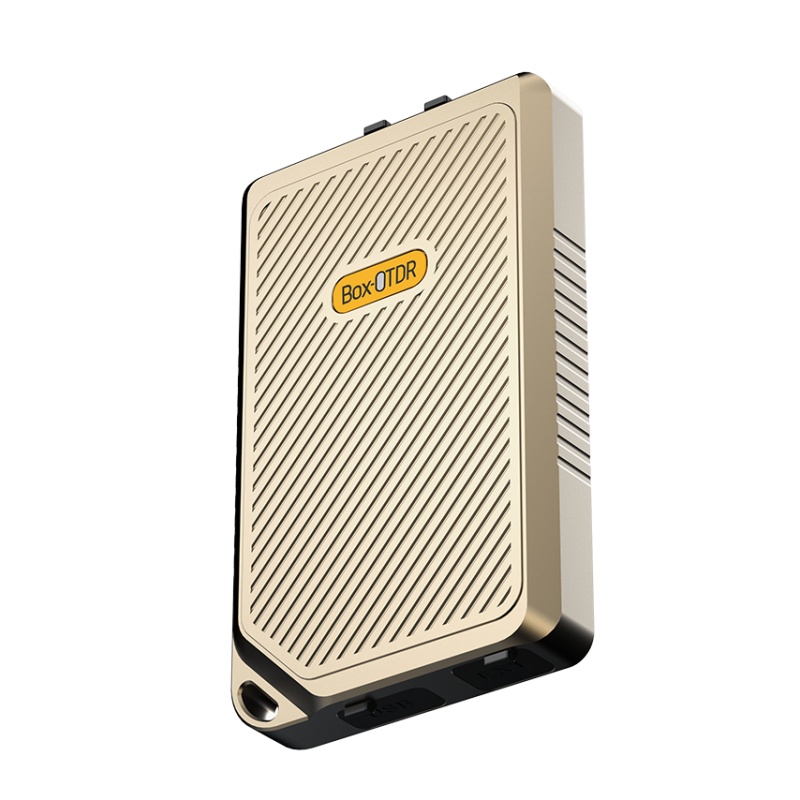

The metal shell structure is more sturdy, with a small volume and compact appearance, and is resistant to pressure and falls.
Integrated OTDR, Event Map, Resource inventory, LS, OPM, VFL.
Type-C interface, more convenient and flexible to connect to mobile phones/tablets for plug and play operation.
Specifications
OTDR | |||||||
Model | F1 | F2 | D1 | D1-Live | |||
Wavelength | 1550±20nm(live test) | 1610±20nm(live test) | 1310/1550±20nm | 1310/1550±20nm | |||
Dynamic Range | 22dB | 20dB | 24/22dB | 24/22dB | |||
Pulse Width | 3,5,10,20,30,50,80,100,200,300,500,1000,2000,3000,5000,8000,10000,20000ns | ||||||
Distance Range | 0.1,0.3,0.5,1.25,2.5,5,10,20,40,80,125,260km | ||||||
Event Blind Zone | ≤1.5m | ||||||
Attenuation Blind Zone | ≤8m | ||||||
Sampling Resolution | 0.03 ~8m | ||||||
Sampling Points | 32000 | ||||||
Refractive Index | 1.000000 ~ 2.000000 | ||||||
Distance Accuracy | ±(0.75m+Sample interval+0.005%×Test distance) | ||||||
Linearity | ±0.05 dB/dB | ||||||
Battery | +5V(Typical), Max<+6V | ||||||
Power Consumption | ≤2W(25℃) | ||||||
Communication Interface | Type-C | ||||||
Environment Condition | Working temperature and humidity: -10℃~+50℃, ≤95%(No condensation) Storage temperature: -40℃ ~ +70℃ | ||||||
OPM | |||||||
OPM | Wavelength Division OPM(Optional) | ||||||
Wave Range | 800nm-1700nm | ||||||
Calibration Wave | 850,1300,1310,1490,1550,1625,1650nm | 1490, 1577nm | |||||
Test Range | -70dBm-+10dBm/-50dBm-+26dBm(Optional) | -50dBm-+26dBm(Optional) | |||||
Resolution | 0.01dB | ||||||
Uncertainty | ±5% | ||||||
Identify Frequency | CW/270Hz/330Hz/1kHz/2kHz | ||||||
Connector | Universal FC/SC/ST | ||||||
Wavelength recognition | Not Supported | ||||||
LS | VFL | ||||||
Wavelength | Consistent with OTDR | Wavelength | 650nm±20nm | ||||
Power | ≥-5dBm | Output Power | ≥10mW | ||||
Connector | Consistent with the OTDR interface | Mode | CW/1Hz/2Hz | ||||
Mode | CW/270Hz/330Hz/1kHz/2kHz | Connector | Universal FC/SC/ST | ||||
Laser Safety Level | Class Ⅲ | ||||||
Standard configuration: OTDR, Event Map, Resource inventory, LS, OPM, VFL. | |||||||
