Features
Multi-wavelength select-able, can be tested with light, low-light remediation: advanced wavelength isolation technology to realize single-wavelength with light measurements.

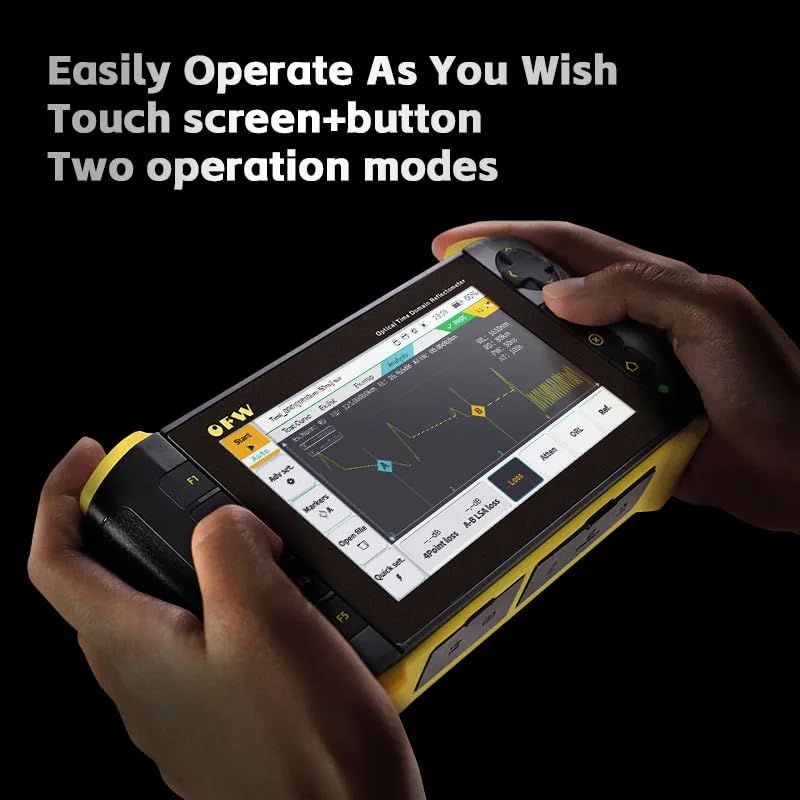

Easy operation, touch screen + keys: free choice of control mode, dedicated keys with multi-touch screen.
Soft light HD, delicate display: 5-inch high-definition color screen, vivid and clear display in all kinds of environments.
Multi-performance upgrade: 150km large range of stable testing, performance and structure of the precise combination of functions and controls more suitable for user needs.

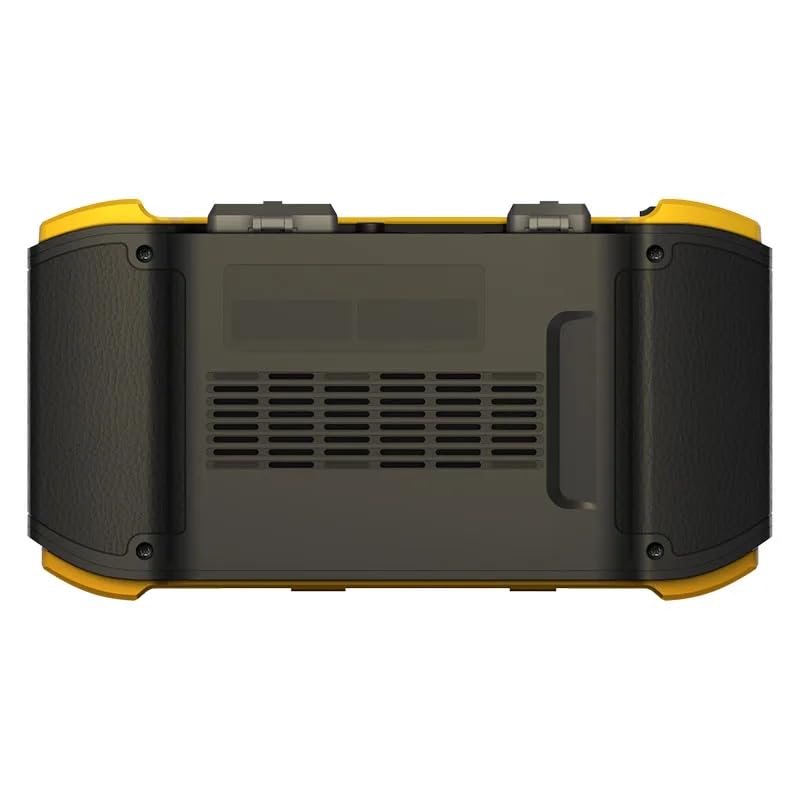

Ergonomics, close to the SLR grip: ergonomic body design, surface leather treatment to enhance the texture and anti-slip, body curve to make the use of comfortable.
Large-capacity rechargeable battery, greatly improved endurance: 5000mAh large-capacity battery, long life, and can be supplied to other devices to charge.
Specifications
Dynamic Range | 20~32dB |
Test Range | 0.1~150km |
Wavelength | 1310±20nm, 1550±20nm, 1610±3nm, 1625±3nm |
OTDR/OLS Connector | FC/UPC(Optional:SC/UPC, FC/APC, SC/APC) |
Pulse Width | 5ns~20us |
Measurement Time | 5~180s |
Measurement Mode | Real time, average, automatic |
Attenuation Dead Zone | 8m |
Event Dead Zone | 2m |
Sampling Point | 16000 |
Input Light Detection | Support |
Live Test | Some models support |
OPM | -70~+8dBm/-50~+26dBm 850,980,1270,1300,1310,1490,1550,1577,1625,1650nm, 2.5mm universal connector |
VFL | 1-30mW, 2.5mm universal connector |
LCD | 5-inch colorful screen(Resolution 800x400) |

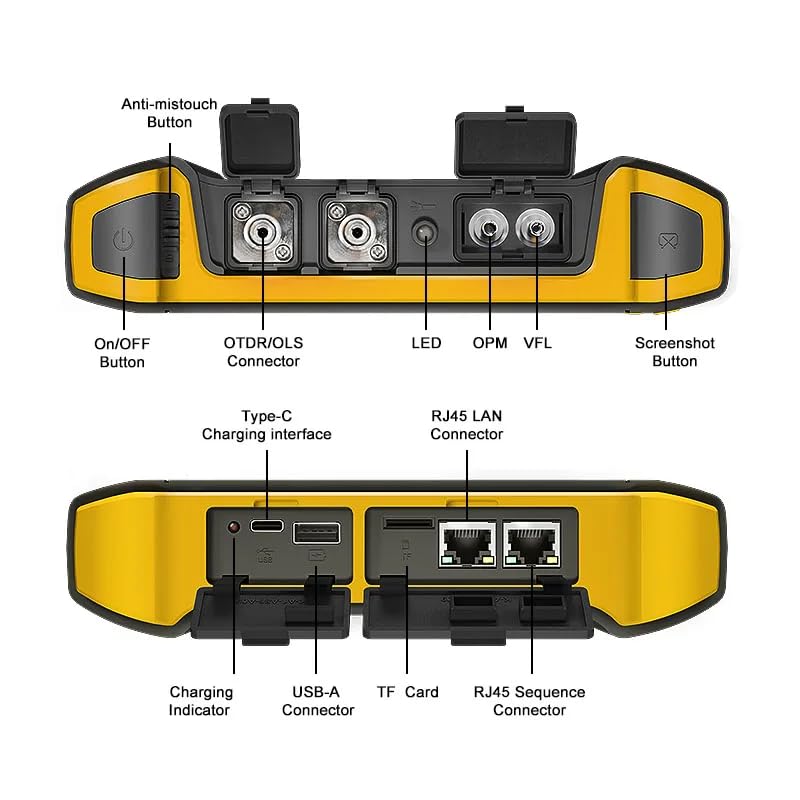

Connector Type | USB-A connector, Type-C connector, RJ45 connector, TF card connector |
LED Light | Support |
Storage(SOR.) | 500 pieces, maximum support 32G TF card, can be stored in U disk |
Energy Saving Mode | Timed automatic shutdown without operation (can be canceled) |
Language | CN, EN(Other languages can be customized) |
iOLA | Optional |
Power Bank | Maximum support 5V2A output, standard USB-A interface |
Rj45 Cable Tracker | Support(optional) |
Rj45 Sequence Test | Support(optional) |
Rj45 Distance Test | Support |
Screenshot | Support |
4G | Optional |
Battery | 3.7V/5000mAh |
Battery Life | Standby > 9 hours, measurement > 5 hours |
Charging Power | Maximum support 5V/2A |
Working Temperature | 0℃~ +50℃ |
Storage Temperature | -20℃~ +70℃ |
Relative Humidity | ＜90%RH |
Size(H*W*D) | 190mm x100mm x45mm |
Weight | About 500g |
