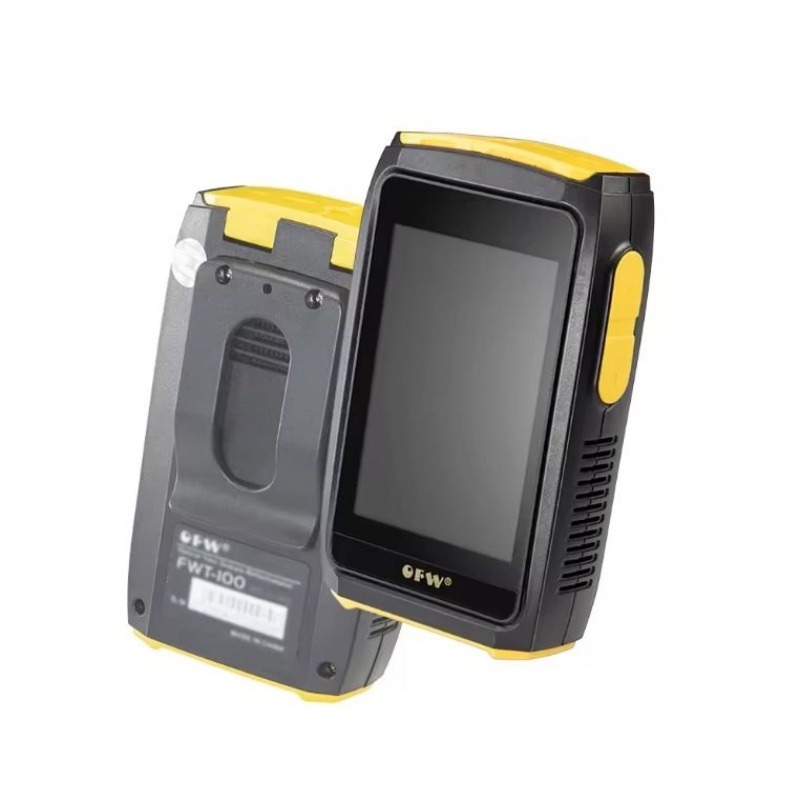

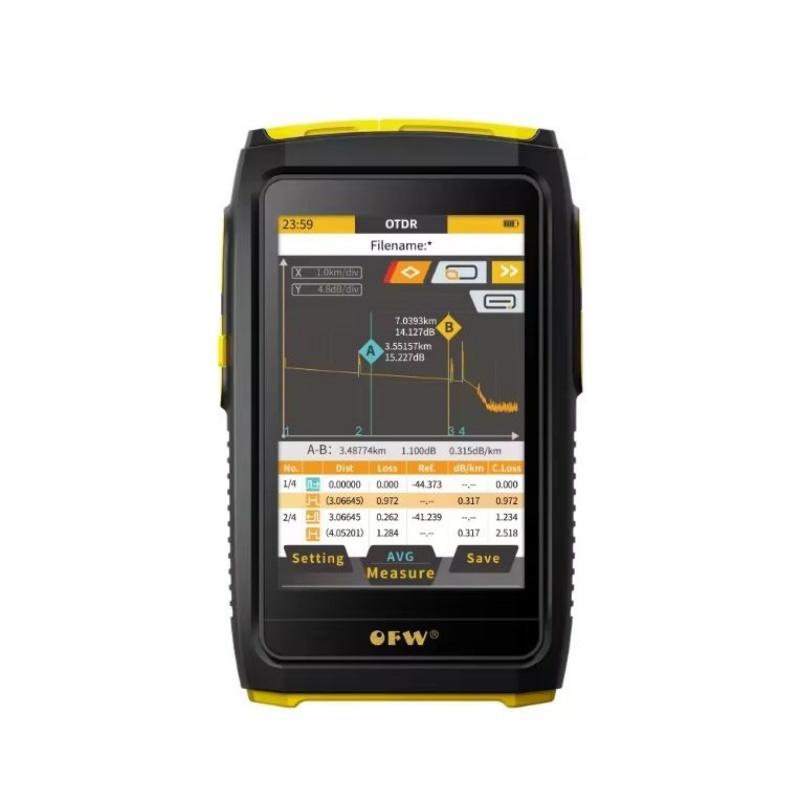

The FWT-100 series OTDR is a handheld optical time domain reflectometer with a light weight body and a specially designed back clip for easy carrying. The test dynamic is 20dB, and the minimum blind area is 3/10m. It is used to measure the breakpoint, length and loss of optical fibers. It has highly integrated functions such as OTDR, optical multi-meter and intelligent optical link analysis (iOLA). Among them, the intelligent optical link analysis (iOLA) can realize mixed measurement of multiple pulse widths to improve measurement accuracy. It is equipped with LED flashlight lighting function; the U disk mode reads files in the U disk; connects to a computer to read files; and has a screenshot function to facilitate the preservation of data files. 3.5-inch colorful LCD screen, specially designed UI interface, full touch operation, overall simplification, similar to the operation concept of mobile phones.

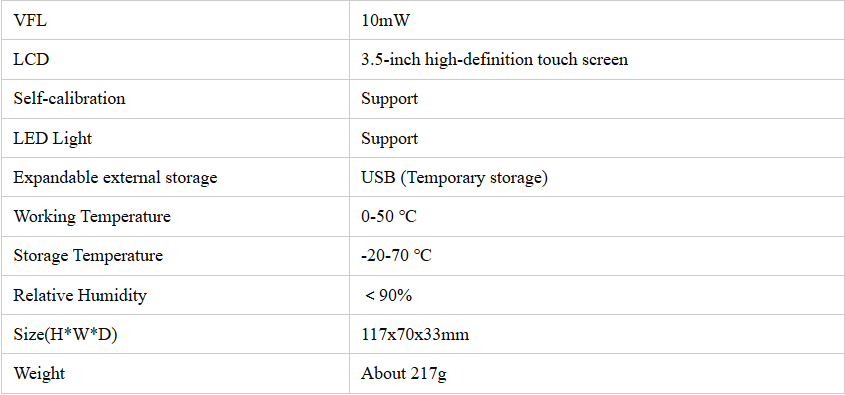

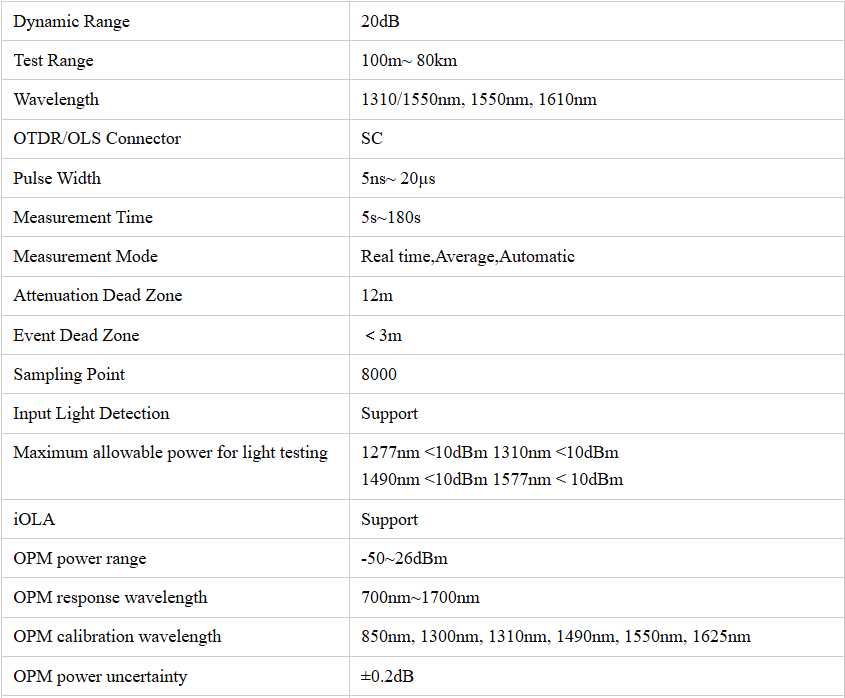

Specifications
