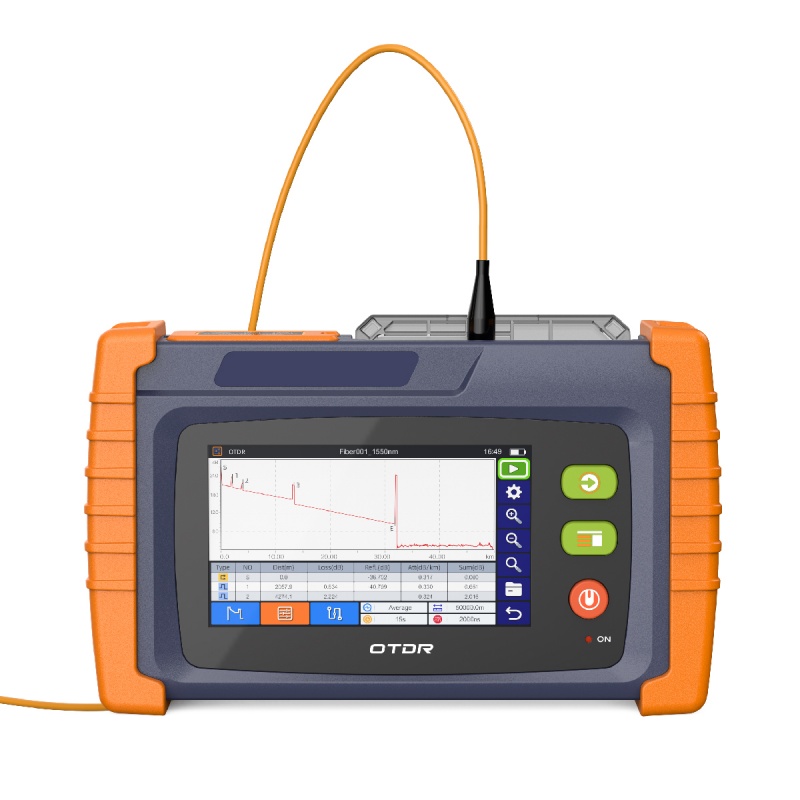

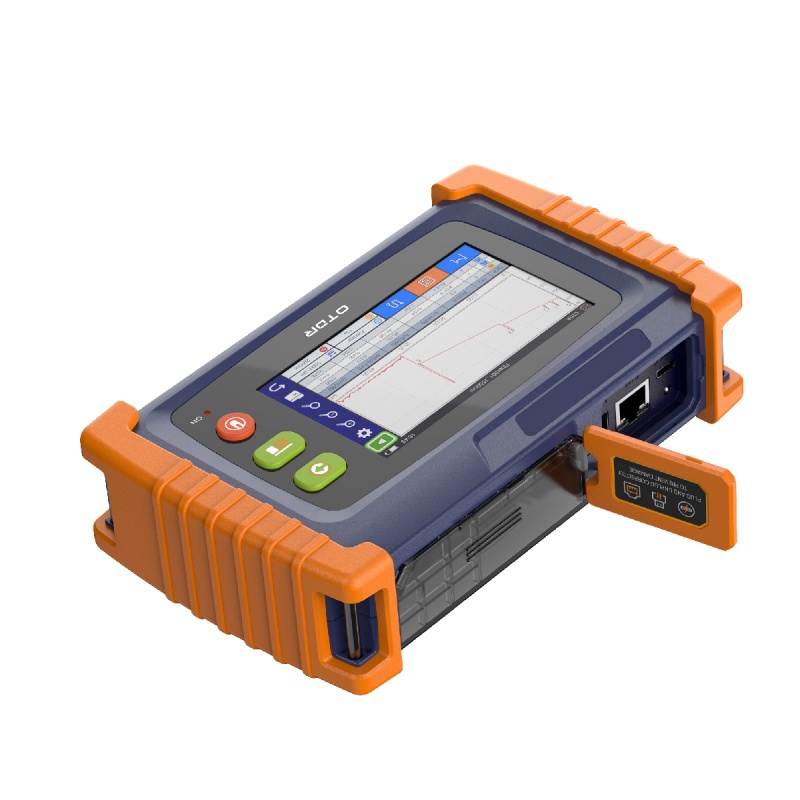

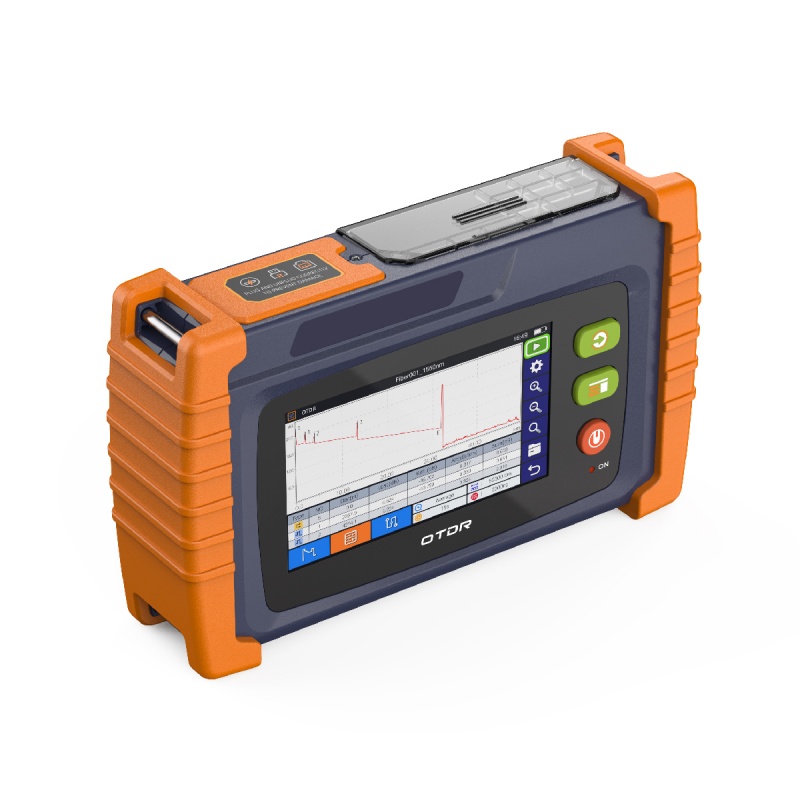

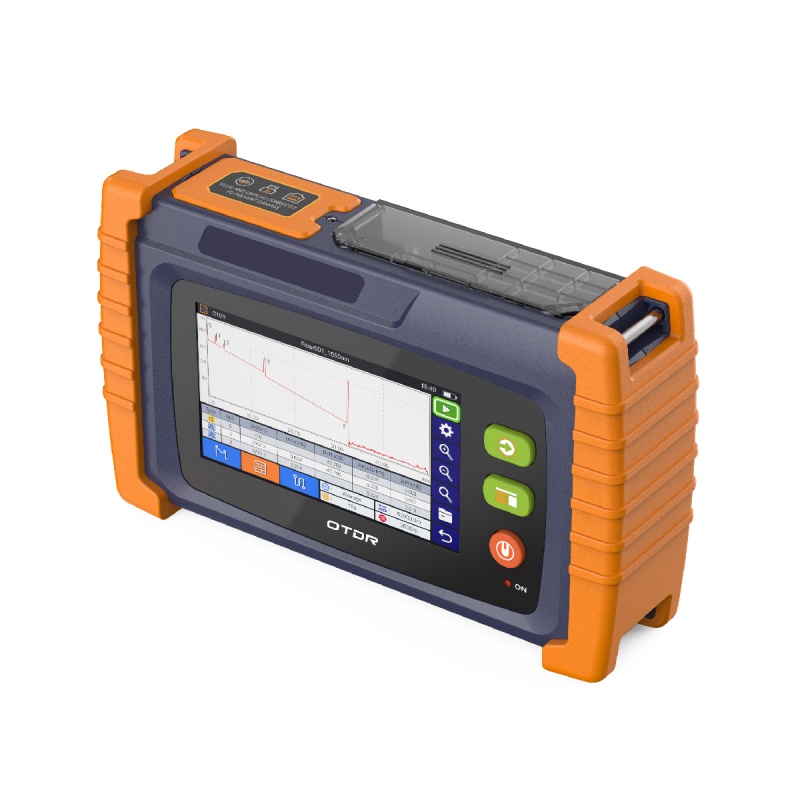

Hand-held FTTx 4.3 Inch Touch-screen Multi-functional Mini OTDR FFS43 Cable Tester

Far more than just OTDR

Optical power meter module (built-in function)
Used to measure absolute optical power or relative loss of optical power through a length of optical fiber.

Red light source module (built-in function)
It is a visual light source, usually used for fault location and fiber identification of single-mode or multi-mode optical fibers.

Stable Light Source Module (Built-in Function)
Output stable continuous light to the optical system, and use it in combination with an optical power meter to measure the optical loss of the optical fiber system.

Network test module (built-in function)

Network sequencing + network line hunting (handle option)
It is suitable for LAN fault detection, maintenance and integrated wiring construction.

Product description

FFS43 OTDR focuses on FTTx network installation and trouble shooting projects, while also taking into account access network testing and passive optical network testing. FFS43 has various models such as single wavelength, dual wavelength, three wavelength, and the single wavelength supports online testing. Can meet the different needs of users. With its compact and portable design and multi-wavelength configuration as its core advantages, it is highly adaptable to the deployment and maintenance of FTTx networks.

Full range selection: 31~29dB ultra-wide dynamic range; Can save SOR format and support host computer viewin (Built-in post-processing software, OTDR measurement results are saved as general SOR format files, which can store more than 700 SOR files)

Operability: 4.3 inch color LCD touch screen; Built-in link diagram, simplifying the interpretation of OTDR curves.

Applications

Communication construction

Weak current

Installation and maintenance works

Broadband construction in residential area

Monitoring construction

Troubleshooting

One-click measurement makes testing simple: Eliminates unnecessary complexity and makes it easy for any technician to perform tests without having to navigate through layers of menu options.

Can measure the continuous event of 8x3 m optical fiber: Short distance test: Accurately test out fiber events and losses.

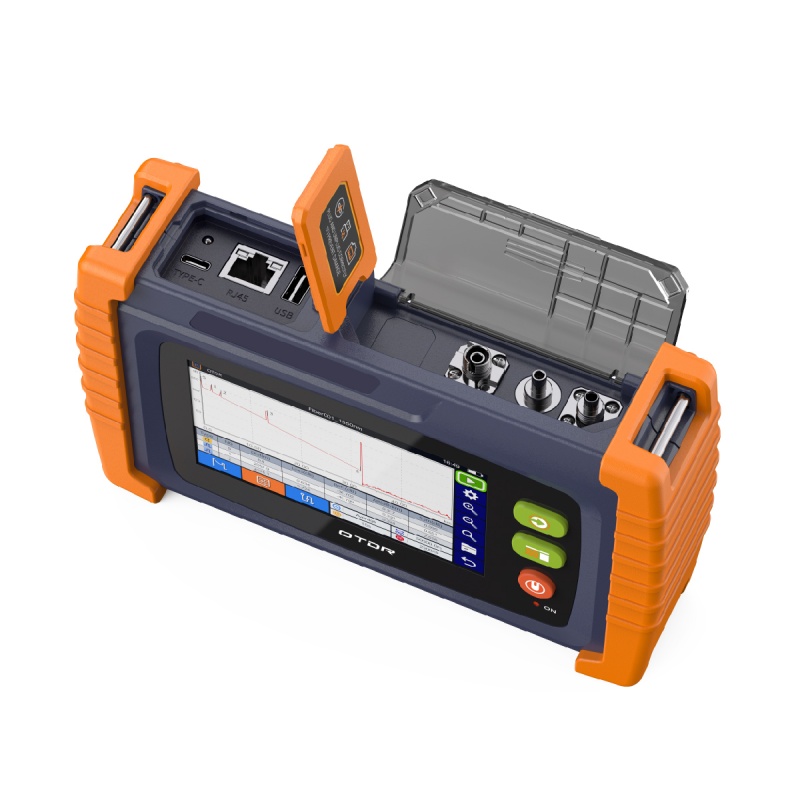

Replaceable universal interface design supports SC/FC/ST adapters: It supports independent replacement of connector types to avoid unnecessary return-to-factory service costs and downtime to maintain optimal performance for a long time.

Specifications

Model	43A	43B		43C	43D		43E	43F	43G	43H	43K
Wavelength(nm)	1310/1550 ±20	1310/1550 ±20		1310/1550/1625±20	1310/1550/1650±20		1550	1610	1577	1625	1650
Dynamic range(dB)	26/24	31/29		26/24/24	26/24/24		24
Event blind spot(m)	≤1.5
Attenuation blind zone(m)	≤5
Number of fiber interfaces	1 FC/UPC		2 FC/UPC			1 FC/UPC
Applicable optical fiber	SM		SM-Live			SM
Range(km)	0.5, 1, 2, 5, 10, 20, 35, 50, 75, 100, 150
Distance accuracy(m)	± (1m + measurement distance × 2 × 10− 5+ collection point resolution)
Number of sampling points	5,10, 20, 50,100, 200, 500,1000, 2000,10000, 20000
Pulse width(ns)	≥15000
Sampling resolution(m)	0.04m
Loss accuracy	±0.03 dB/dB
Reflection accuracy	±2dB
