Wavelength (nm)

1310 ± 30/1550 ± 30

Dynamic range (dB)

34/32

Event dead zone (m)

0.8

Attenuation dead zone (m)

3.5

Distance range (km)

0.65 to 200

PON dead zone (m)

35

Pulse width (ns)

3 to 20 000

Linearity (dB/dB)

±0.05

Loss resolution (dB)

0.001

Sampling resolution (m)

0.04 to 5

Sampling points

Up to 256 000

Distance uncertainty (m)

±(0.75 + 0.0025% x distance + sampling resolution)

Reflectance accuracy (dB)

±2

General Specifications

Size (H x W x D)

171mm x93mm x48mm (6 3/4 in x3 11/16 in x1 7/8 in)

Weight (with battery)

0.5 kg (1.1 lb)

Display

4 in (101.6 mm) touchscreen, 800x480 TFT, portrait and landscape view

Interfaces

One USB-C port

Storage

8 GB internal memory (10000 OTDR traces, typical)

Connectivity

Bluetooth®, WiFi and USB-C

Results format

PDF report on the unit, sor. trace as per Telcordia (Bellcore), trcx.

Battery

Rechargeable lithium-polymer battery, USB type-C charging port connector

Battery autonomy

>10 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Temperature

Operating: –10 °C to 45 °C (14 °F to 113 °F)

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity

< 93 % non-condensing

Data management

FastReporter 3, EXFO Exchange

Adapters

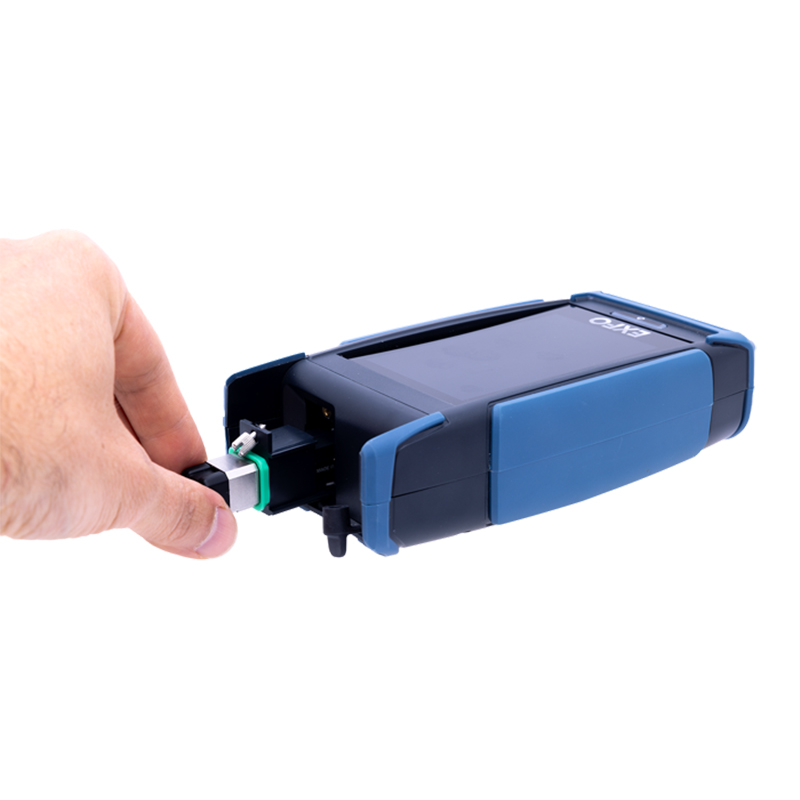

Multiple changeable adapters to fit any optical connectors: SC, FC, LC, and mor

In-line Power Checker

Power range (dBm)

–60 to 23

Power uncertainty (dB)

±0.5

Calibrated wavelengths (nm)

1310, 1490, 1550, 1625, 1650

Selectable wavelengths (nm)

1310, 1490, 1550, 1577, 1625, 1650

Tone detection

CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, 1 kHz+Blink, 2 kHz+Blink

In-line Source

Output power (dBm) k

–7

Modulation

CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, 1 kHz+Blink, 2 kHz+Blink
