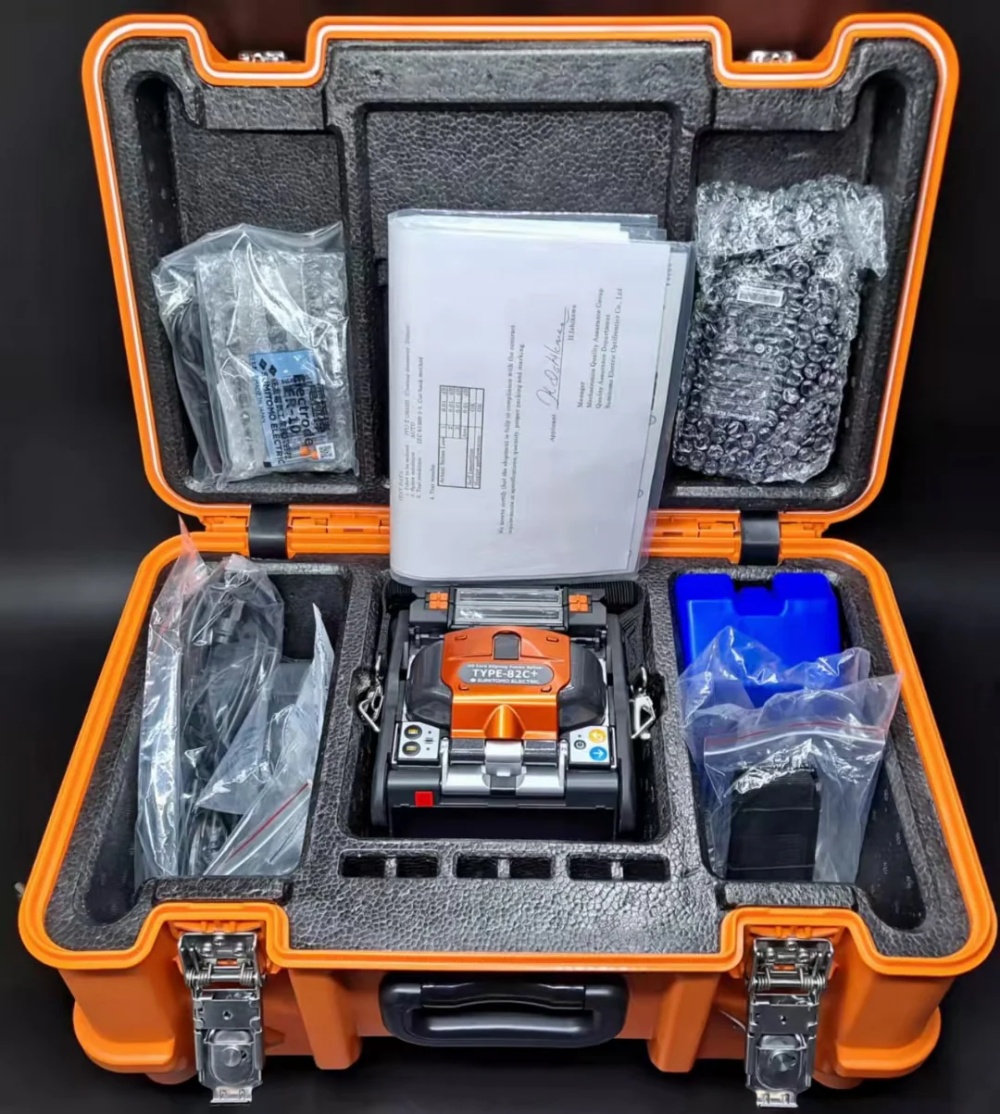

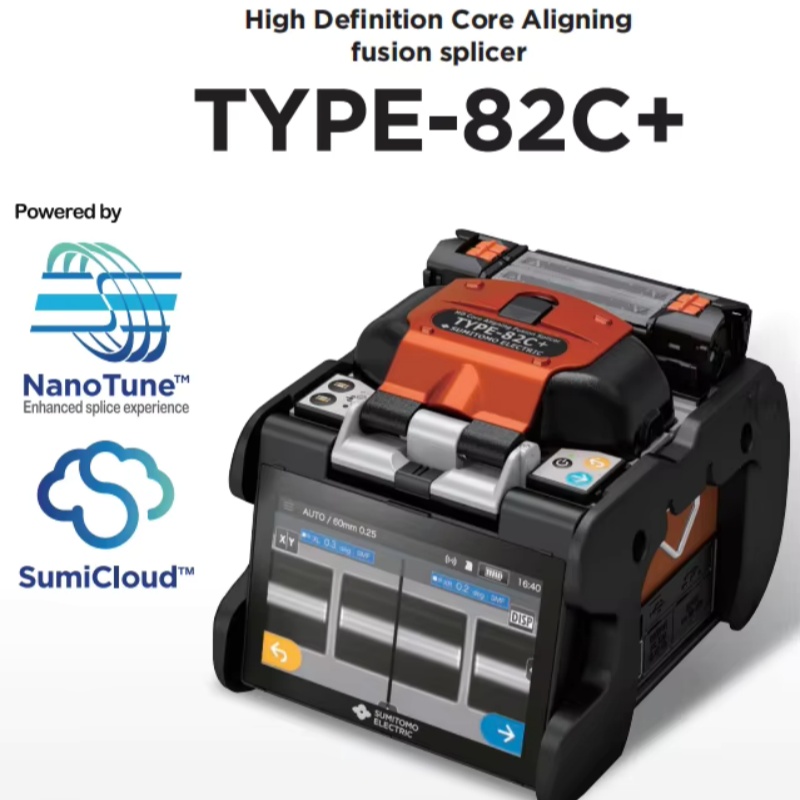

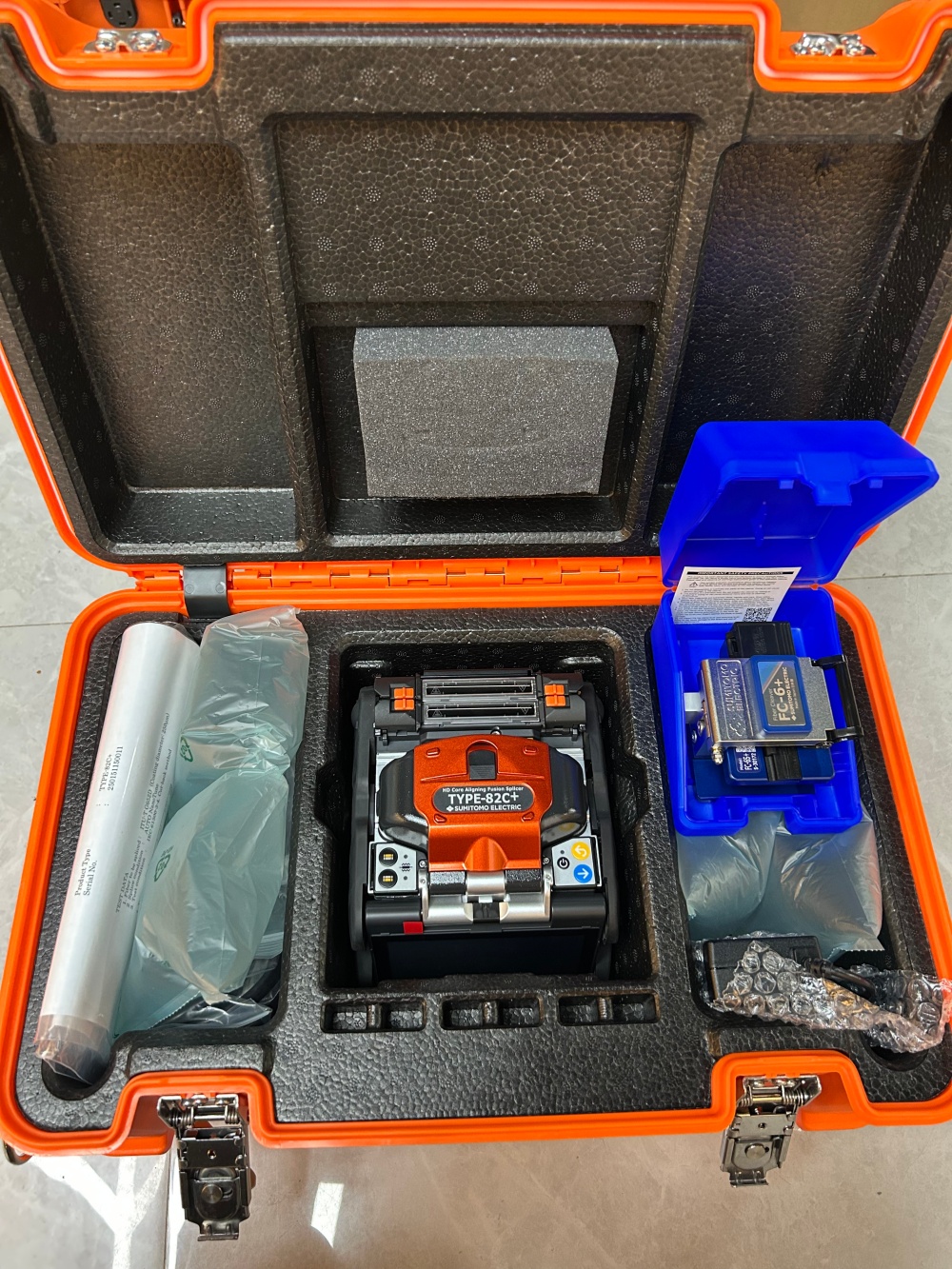

Profile types

SMF(G.652),MMF(G.651),DSF(G.653),NZDSF(G.655),BIF(G.657),EDF

Fiber diameter

Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm

Applicable fiber size

up to φ1,000 µm

Drop cable (2.0x3.1 mm), Indoor cable (2.0x2.0 mm)

Cleave length

5~16 mm

10 mm

Splice loss (typical)

SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB

Splicing cycle time (typical)

5 sec. (Quick mode), 7 sec. (SMF standard mode), 7 sec. (Auto mode)

Heating cycle time (typical)

9 sec.

Splice & Heat cycles

Approx. 300

Fiber view & magnification

Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view

Splicing programs

Max. 300

Heating programs

Max. 100

Loss estimation

Provided

Splice image capture / Splice data storage

200 images / 10,000 splice data

Proof test

1.96N (200 gf)

Universal clamps for 250µm, 900µm tight & loose buffer fiber

Provided

Reversible coating clamps

Provided

Dual automatic independent heaters

Provided (US patent 7,412,146)

User-selectable heater clamp operation

Provided

Onboard user training video

Provided

Automatic arc calibration

Automatically compensates for environmental condition changes

Arc test

Provided

Display of remaining Splice & Heat cycles

Provided (Battery mode)

Remote interactive maintenance

Provided

DC output

DC12 V (for JR-6)

USB port

USB 2.0 (mini-B type)

Storage media

SD / SDHC memory card

AC input

100 ～ 240V, 50 / 60 Hz (ADC-1430)

DC input

10 ～15 V

Battery module

Li-ion 10.8 V, 6,400 mAh (BU-16)

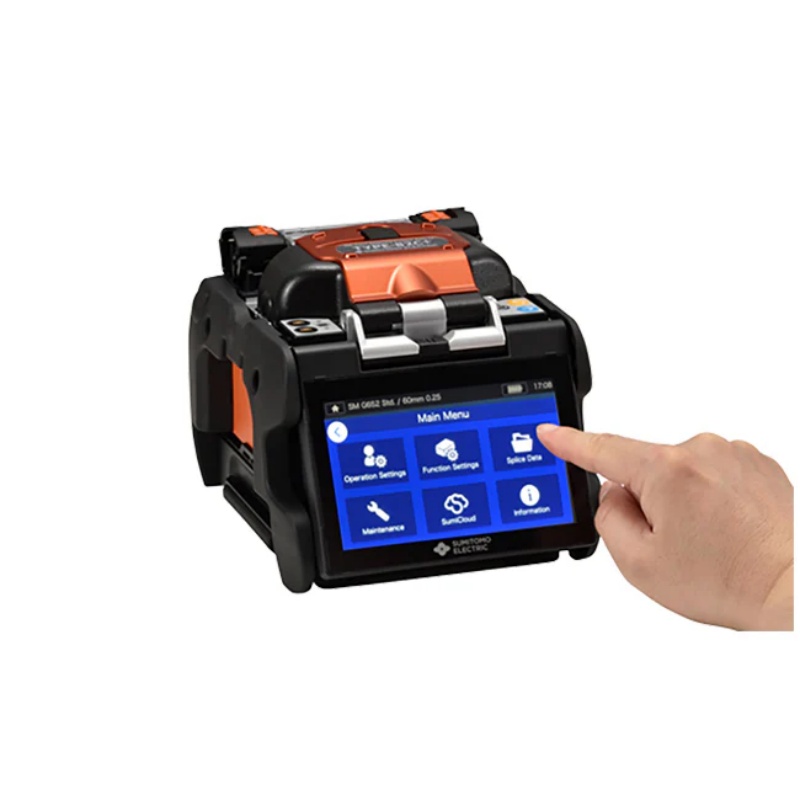

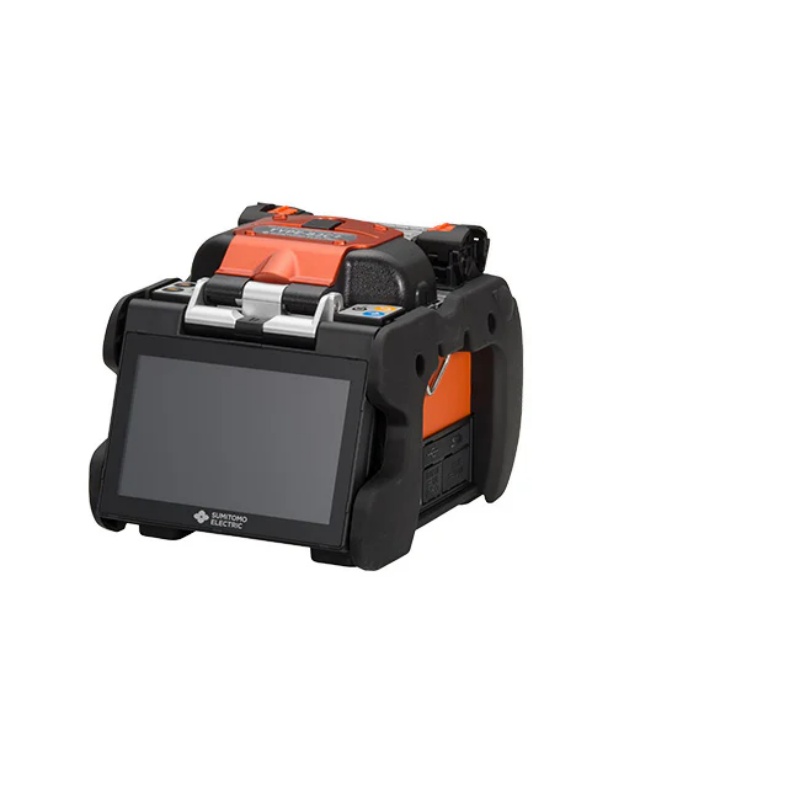

Monitor

5.0" touch screen color LCD display

Size

128(W) x 154(D) x 130(H) mm (without anti-shock rubber)

Weight

1.9 kg (without battery), 2.2 kg (with battery)

Electrode life

3,000 arc discharges

Operating conditions

Altitude 0～6,000 m, Temperature -10～+50°C, Humidity 0～95% (non-condensing), Wind velocity up to 15 m/s

Storage conditions

Temperature -40～+80°C, Humidity 0～95% (non-condensing), Battery -20～+30°C (long term)

Dust resistance

Equivalent to IP5x (Operates normally after 8 hours in a dust chamber (containing dust of particle size 25 µm or below

Water resistance

Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°)

Shock resistance

Drop from 76cm on 5 faces (excluding top face)
