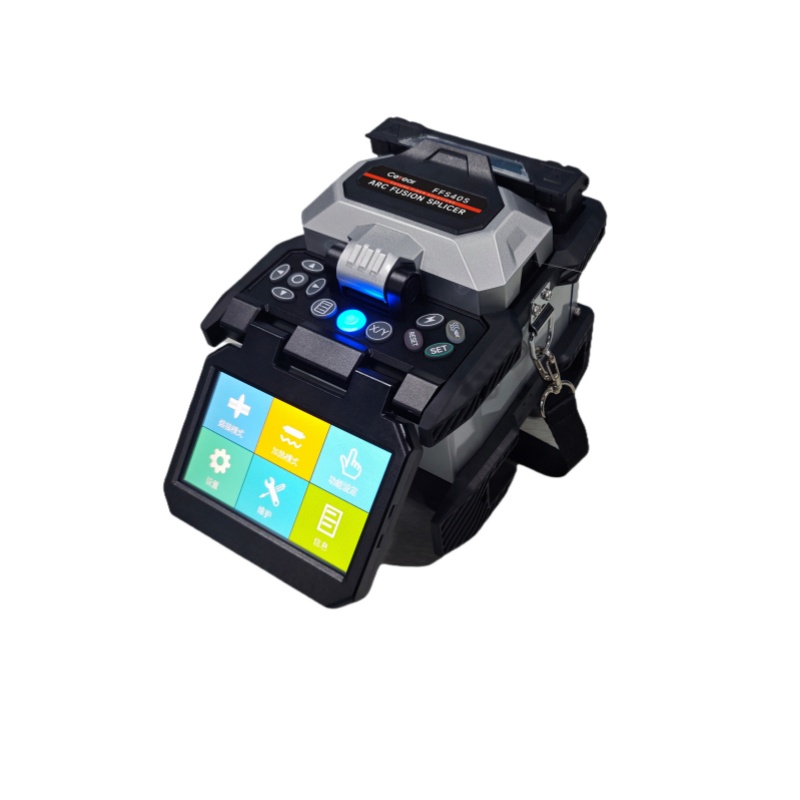

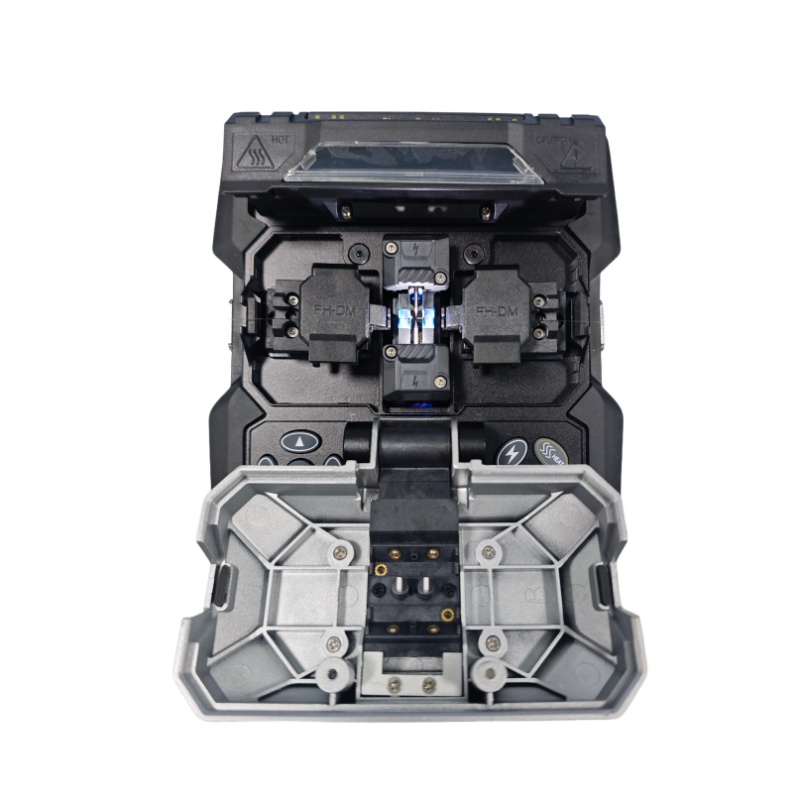

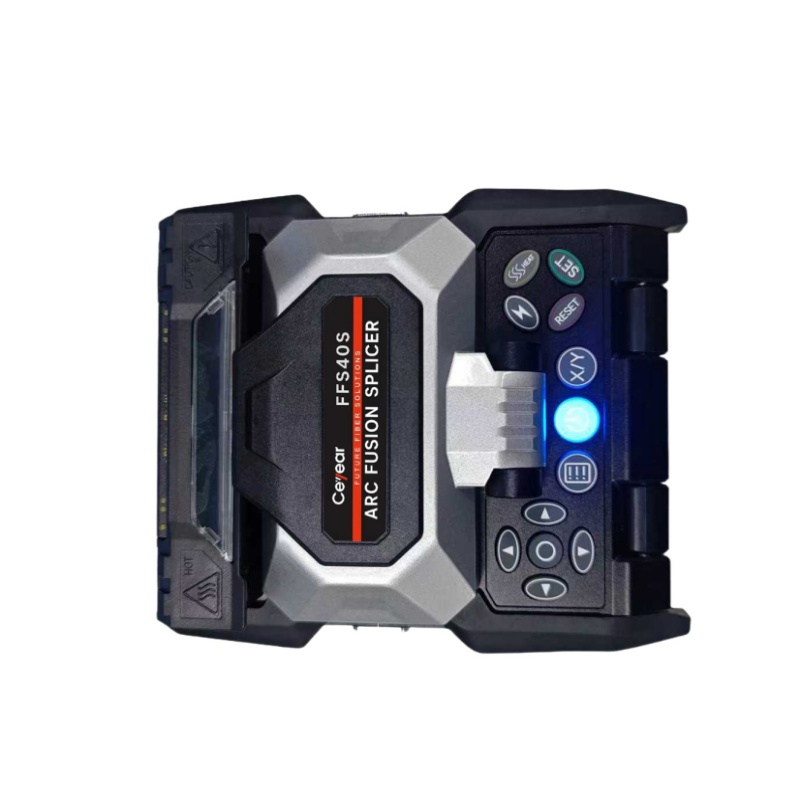

Alignment method

Precise core alignment and cladding alignment

Applicable fibers

Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.

Optical fiber diameter

Cladding:80~150μm, coating layer: 0.1~3mm

Cutting length

5~16mm(coated optical fiber diameter≤250μm);

10mm(coated optical fiber diameter:0.25~3mm)

Fusion splicing loss

0.02dB(SMF); 0.01dB(MMF); 0.04dB(DSF); 0.04dB(NZDSF)

Return loss

Better than 60dB

Fusion splicing time

7s

Heating time

18s

Pulling force test

1.96~2.25N

Thermal shrinkage tube

60mm, 40mm and a series of thermal shrinkage tubes.

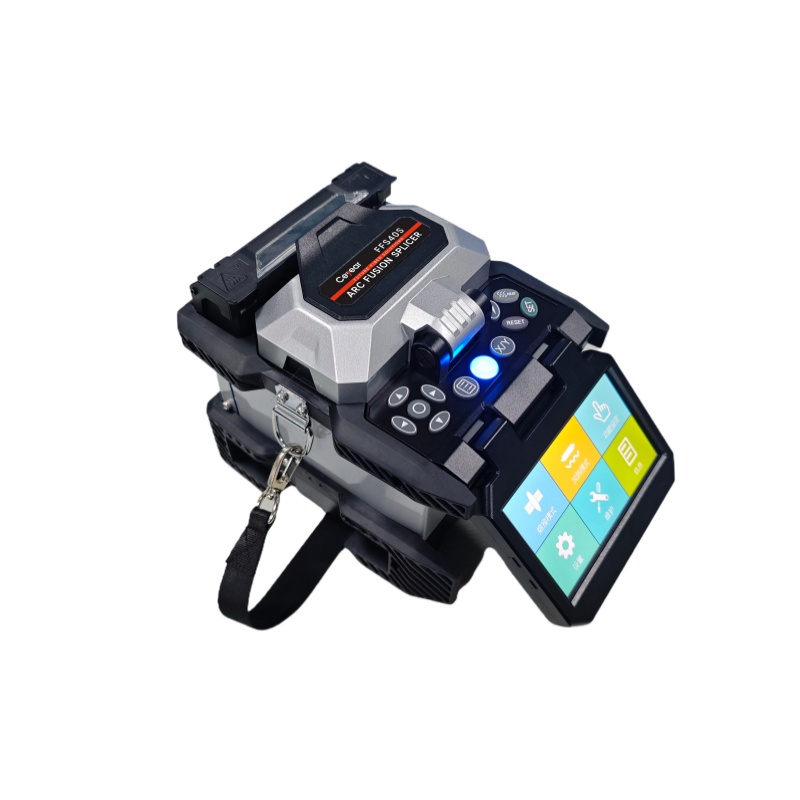

Graphical display

High-performance 4.3 inch LCD

Magnification time

320 times/88 times

Fusion splicing record

10000 groups

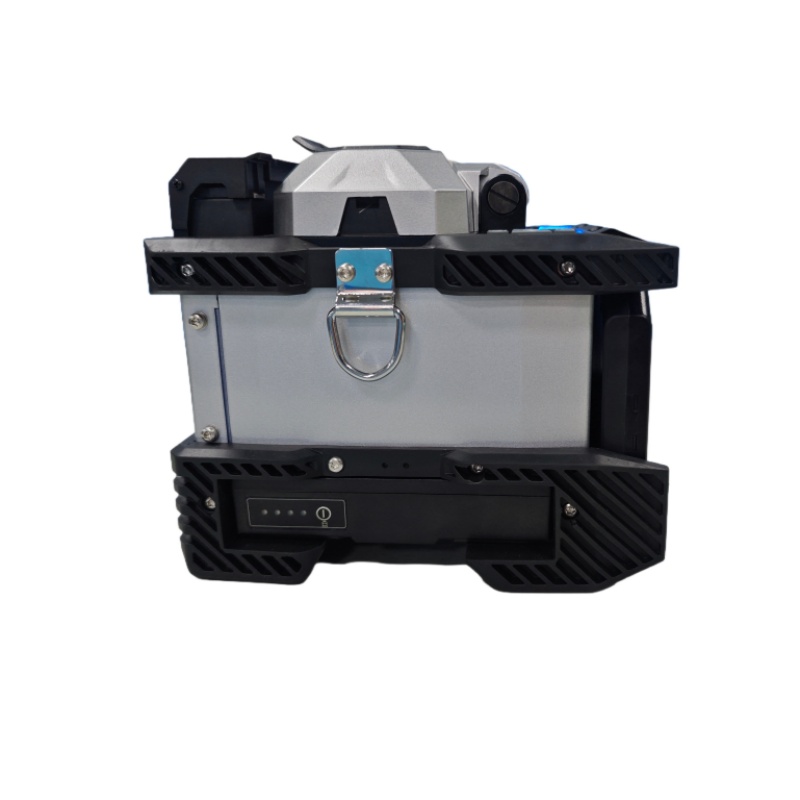

Battery capacity

11.1V, 6400mAh, typical value of fusion splicing and thermal cycle is 220 times.

Battery service life

Cycle charging times reach 300~500, can be replaced by customers.

Electrode service life

Typical value is 4000 times, can be replaced by customers.

Construction lighting

Built-in lights with high-brightness and wide lighting area

Working environment

Temp:-10~50ºC; hum: 0~95%RH, height above sea level:0~6000m

Operation interfaces

GUI graphical operation interfaces

External power

AC: AC100~240V, 60Hz, 0~1.5A; DC: DC10~15V

External port

USB/SD

Dimensions

120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)

Weight

1.59kg(host engine), 0.37kg(battery)
