Features
All-metal body, stable and durable.
Built-in rechargeable lithium battery with a Type-C charging port
Adjustable temperature (50°C–180°C) to suit various environments
Temperature setting memory function—retains the temperature level used before the device was powered off
Widened blade with a positioning guide, allowing for the stripping of multiple optical fibers simultaneously to improve work efficiency.
Includes a countdown timer and an automatic shut-off function
Specifications
Name | Fiber thermal stripper S11pro |
Applicable fiber | Bundle fiber/bare fiber/ribbon fiber/invisible fiber |
Stripping number | Bundle fiber(1-15cores)/bare fiber(1-48cores) Ribbon fiber(2-24cores)/invisible fiber(1-12cores) |
Cladding Diameter | 125μm |
Stripping Length | ≤32mm |
Blade width | 20mm |
Temperature setting | 50-180℃ |
Heating Mode | Normal mode / Power save mode |
Power Supply | Adapter: DC, 5V Built-in battery: 7.4V, 3500mAh |
Automatic shutdown time | 6min |
Operating Condition | Temperature: 0ºC ~ 40ºC / Humidity: 0% ~ 95% |
Dimensions | 130x39x29.5mm |
Weight | 390g |

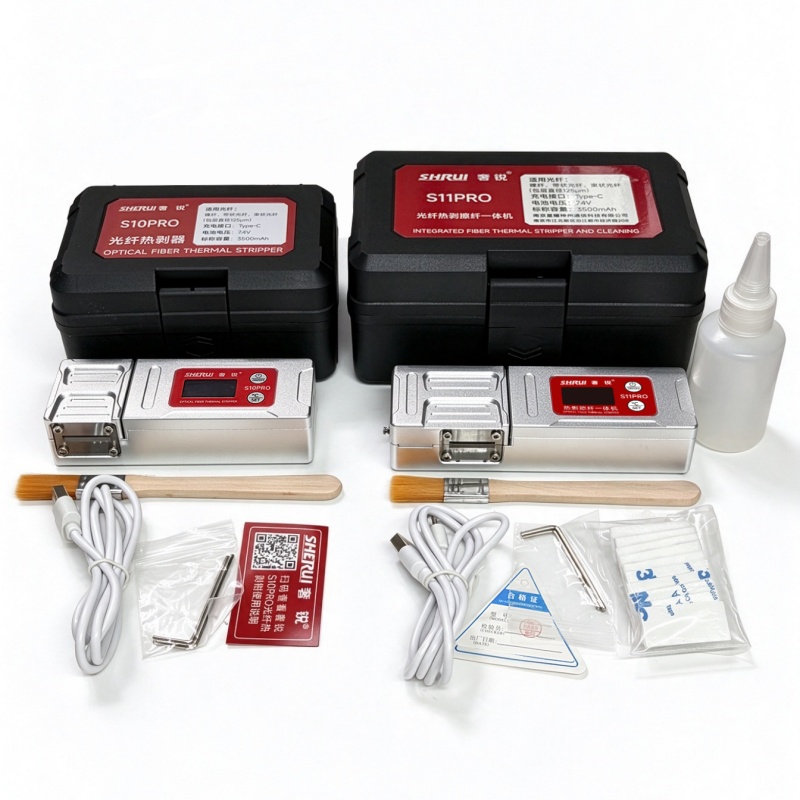

Package
Item | Quantity |
Fiber thermal stripper | 1 |
Carrying case | 1 |
USB charging cable | 1 |
Brush | 1 |
Alcohol bottle | 1 |
Cotton pad | 10 |
Certificate | 1 |
Wrench | 2 |
Manual(QR code) | 1 |
