INNO Upgraded Ribbon Fiber Thermal Stripper TS-2 Hot Jacket Stripper
Compatible against all types/brand of ribbon cables with coating diameters from 200um to 400um

Rugged and ergonomic design for durability and ease of use

Removes coatings from a single fiber to 16 ribbon fibers

Stable and easy fiber coating removing capability

Fast heating and charging time with 500 cycles
Product description

TS-2 is a universal thermal fiber stripper capable of removing coating and jacket of all types and brands of fibers. It performs superbly against the rollable and spider web cables in both 200um and 250um pitch. With its fast and straightforward operation, anyone can do precise stripping with near-zero failure. It provides long-lasting battery capacity: approx 500 cycles of ribbon fiber cable stripping. TS-2 is also waterproof and can withstand the most challenging work environments.

Features

Compatible against all types/brand of ribbon cables with coating diameters from 200um to 400um

Rugged and ergonomic design for durability and ease of use

Removes coatings from a single fiber to 16 ribbon fibers

Stable and easy fiber coating removing capability

Fast heating and charging time with 500 cycles

Specifications

Model

TS-2

Fiber Material

Silica Glass

Coating Diameter

200 ~ 400μm

Cladding Diameter

125μm

Applicable Fiber

1 to 12

Stripping Length

Up to 30mm

Heating Time

13s

Temperature Setting

100ºC, 120ºC, 150ºC, 170ºC

Battery Capacity

3500mAh, approx. 500 (12 Ribbon fiber, Level 1, SAVE mode)

Power Supply

AC Drive: AC100~240V, 50/60Hz

DIN Port: DC 12V power supplied from fusion splicer

Charging Port

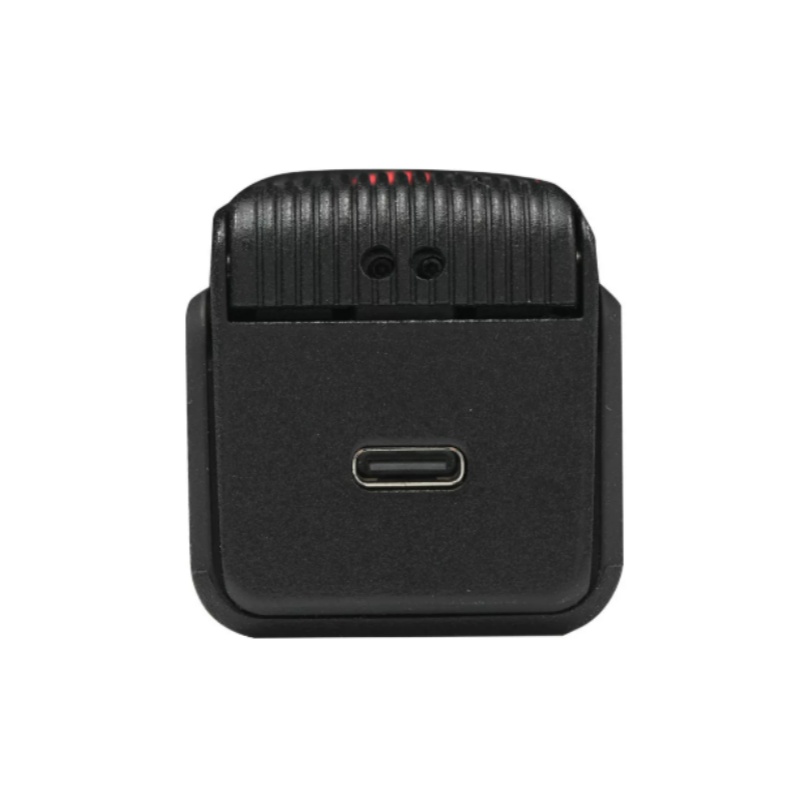

Type-C

Operating Condition

Temperature: 0ºC ~ 40ºC / Humidity: 0% ~ 95%

Dimensions

137x37x38mm

Weight

189g
