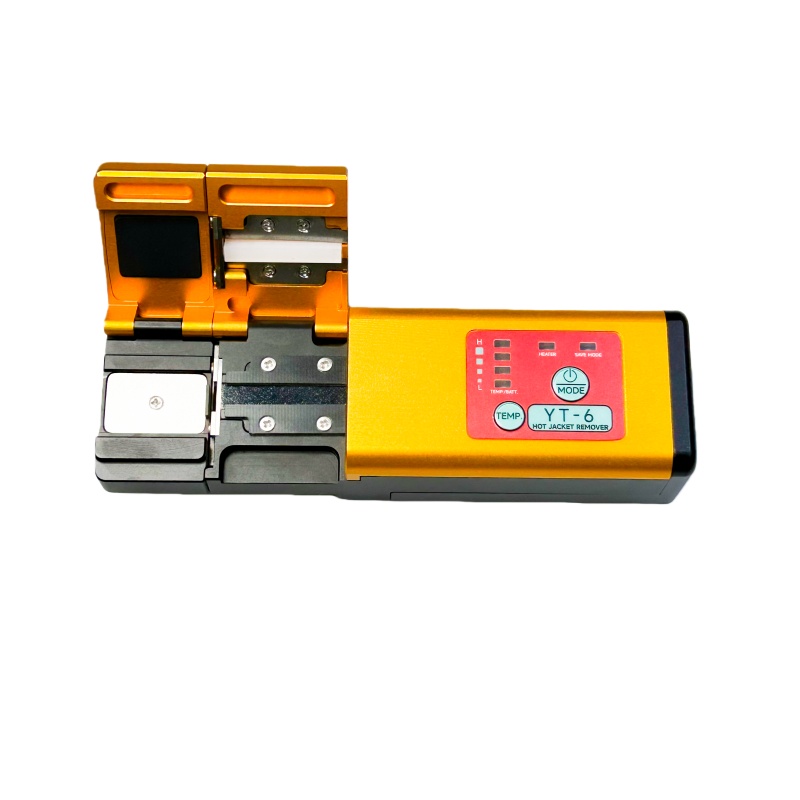

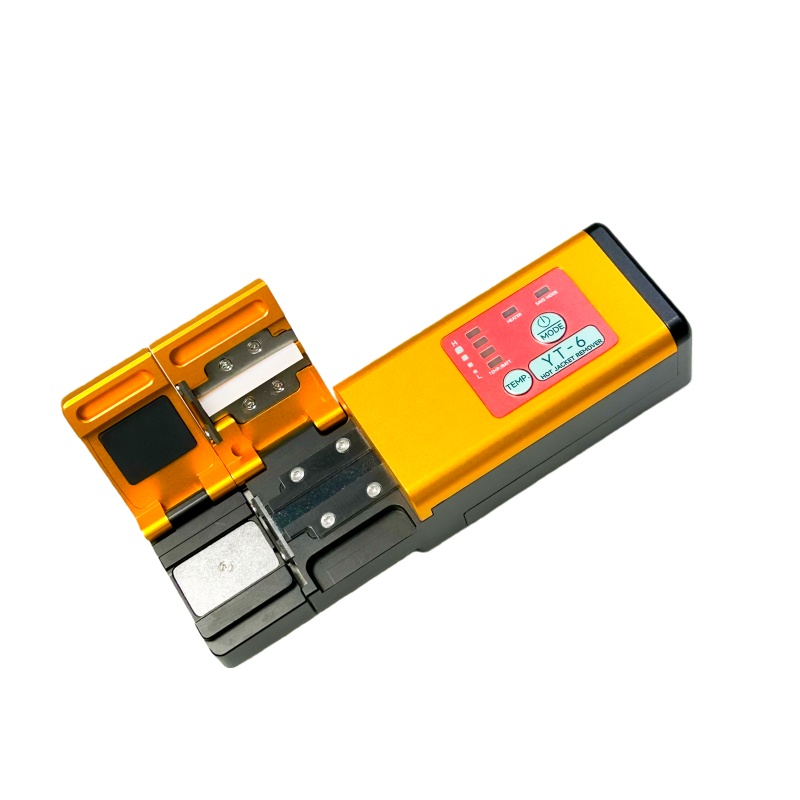

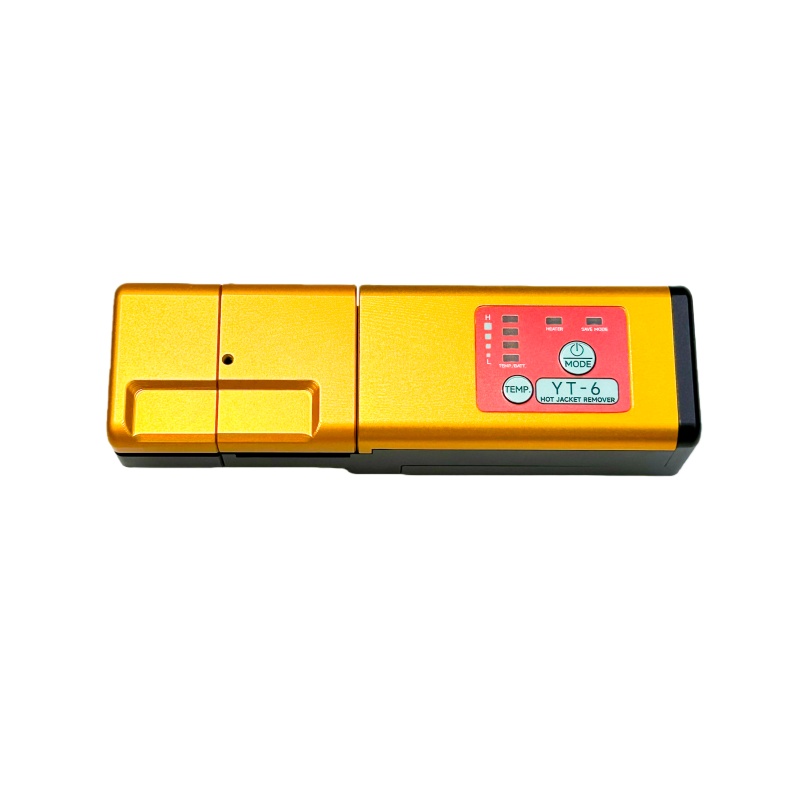

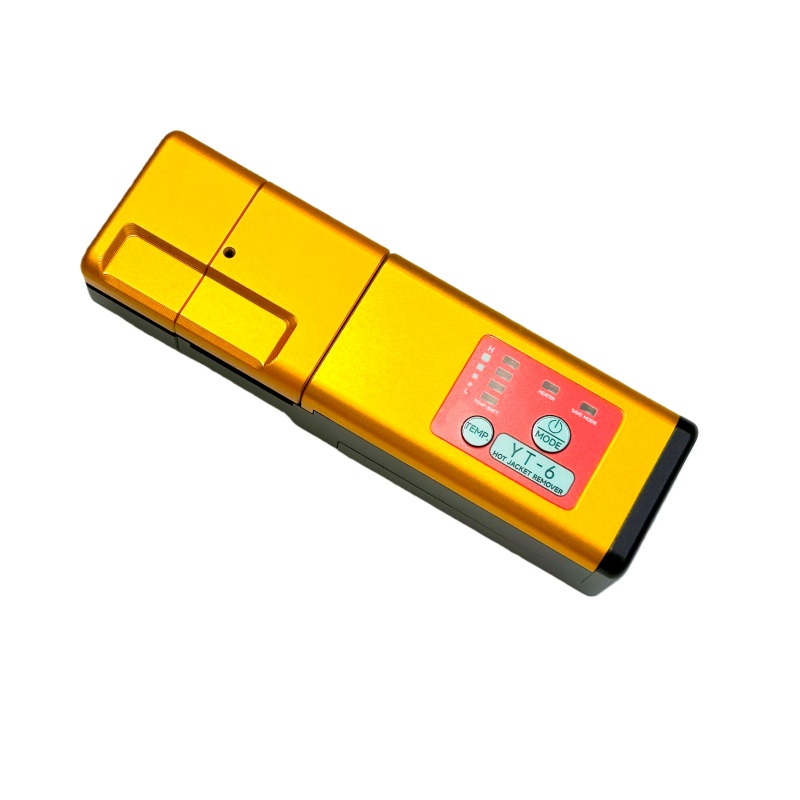

YT-6 ribbon fiber stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work.
Features
Apply to single and ribbon (up to 12 cores) fibers
10s fast heating, 4 levels temperature choices.
Requires less force for the stripping process
Easy to operate and maintain, nearly zero failure.
Rugged and durable for any tough environment
Small size and light weight, convenient to carry.
A large chargeable lithium battery, 2200mAh.
Specifications
Applicable Fiber | Glass optical fibers, capillary |
Coating material | UV curable resin |
Coating diameter | Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm |
Cladding diameter | 125µm |
Coating stripping length | Max. 30mm |
Fiber types | Single fiber, ribbon fiber |
Fiber holder type | FH-2, FH-4, FH-6, FH-8, FH-10, FH-12 |
Heating mode | Normal mode, Eco mode |
Temperature setting | Default: 80°C. Normal mode: 80℃, 95℃ 110℃, 120℃. |
Typical heating time | Normal mode: 10s for first stripping Power saving mode: 12-13s |
Battery capacity | 2200mAh Li-battery. Full charge time: 3 hours. Support approx. 600 cycles continuous stripping once fully charged at default temperature. |
Power supply | AC adapter, input: AC100-240V(50/60Hz), output: DC12V-1A |
Operation environment | Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0℃ ~ +40 ℃, Wind speed: 15m/s maximum |
Dimension/Weight | 145mm(L)×45mm(W)×35mm(H) /NW:363g(including battery) |
