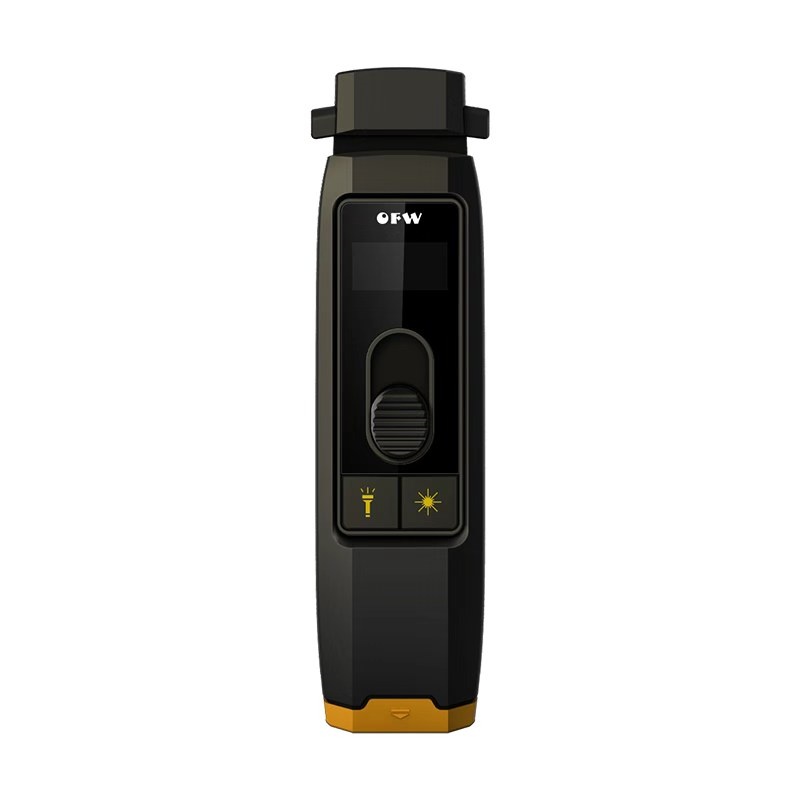

OFW Optical Fiber Identifier FWD-01-V10 Live Fiber Detector Built-in 10mw VFL

The OFW FWD-01-V10 Optical Fiber Identifier is a compact and professional fiber testing tool, designed for live fiber detection, signal identification, and fiber network maintenance.

It combines optical signal detection function and VFL(Visual Fault Locator) LED light source, providing a convenient solution for fiber technicians during installation and troubleshooting.

With a lightweight handheld design, the FWD-01-V10 can quickly identify fiber signal direction and status without interrupting network operation. It is widely used in FTTH deployment, telecom maintenance, data center cabling and fiber optic installation projects.

Product description

Features

Available for 0.25/0.9/2/3mm fiber, no need to change clamp.

Equipped with shade cap convenient to use in strong light environment

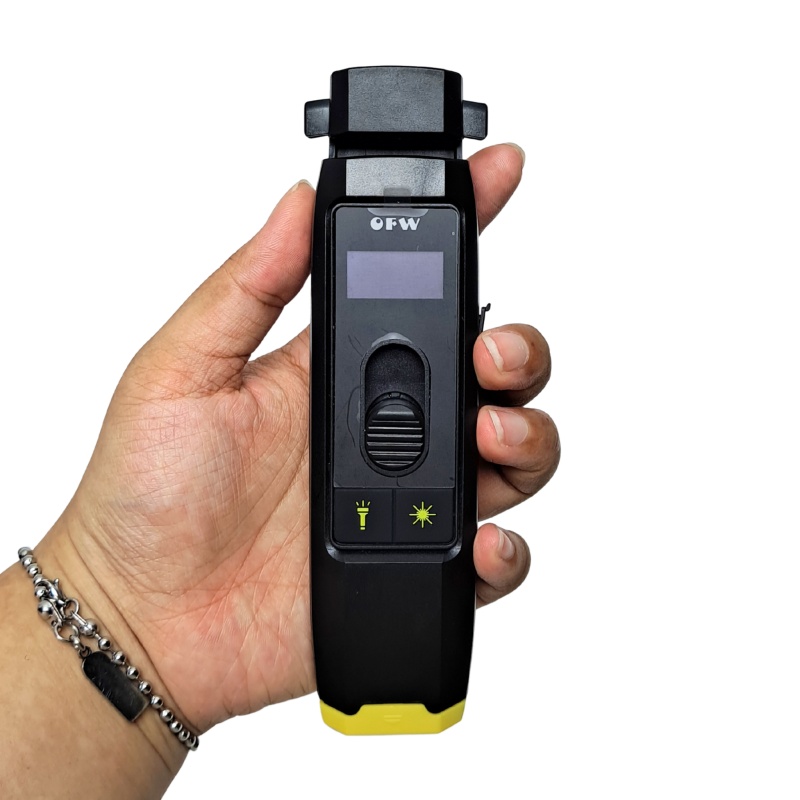

Compact design, self-lock trigger, free your hands.

0.96 inch OLED screen, richer display content.

Detect frequency 270/1k/2kHz

700-1700nm wavelength range

Built-in Lithium battery, Type-C port.

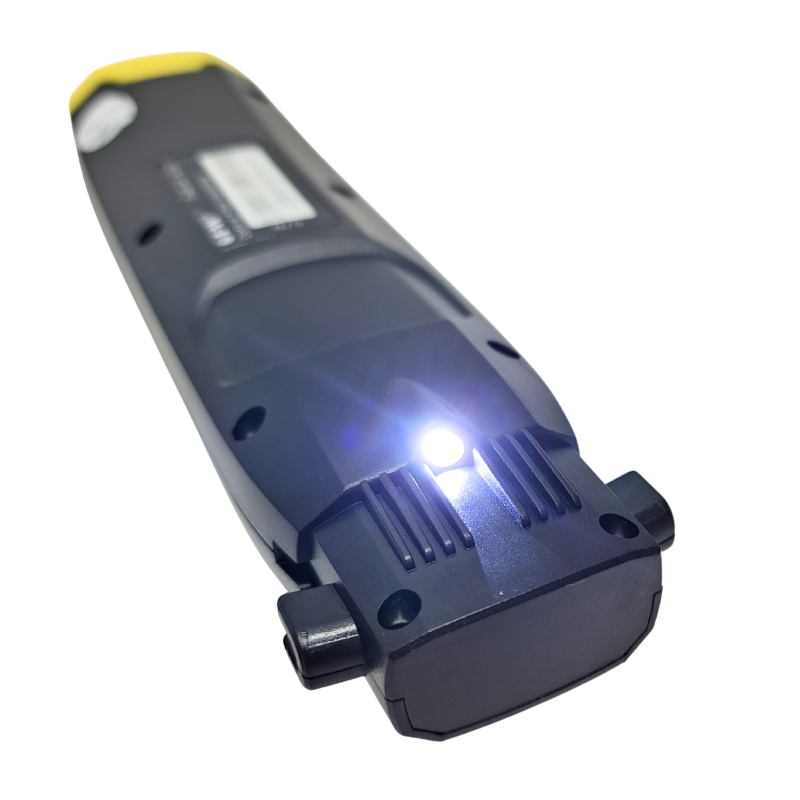

LED light and 10mW VFL

Macro bending technology, non-destructive testing.

Specifications

Live Fiber Identifier Parameter
Model	FWD-01-V10
Fiber Type	0.9, 0.25, 2.0, 3.0mm fiber
Wavelength Range	700 to 1700nm (SM)
Sensitivity	-40 - +10dBm(need wavelength 1550nm)
Recognizable Signal Type	270Hz, 1kHz, 2kHz
Visual Fault Locator Parameter

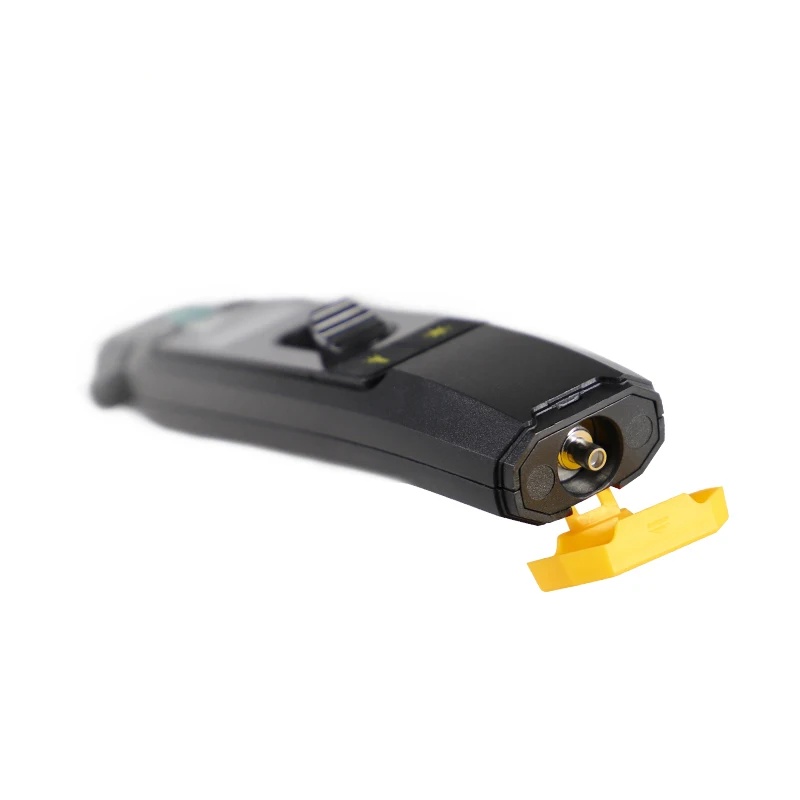

VFL Connector	2.5mm universal connector
Frequency	2±0.5Hz
Output Power	10mW
Others
Battery	Built-in lithium battery
Battery Detection	Low battery automatic shutdown
Charging Interface	5V 500mA, TYPE-C
Energy Saving Mode	Yes
LED Light	Yes
Beep	Yes
Operating Temperature	-10 - +50℃
Storage Temperature	-20 - +70℃
Relative Humidity	<95% no condensation
Size	152x41x32mm
Weight	80g
