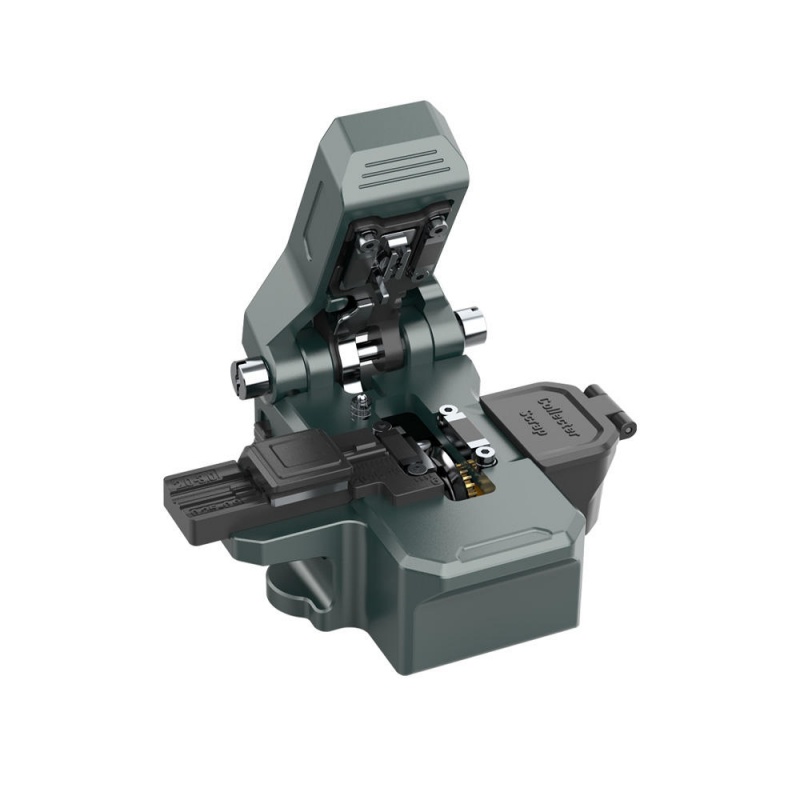

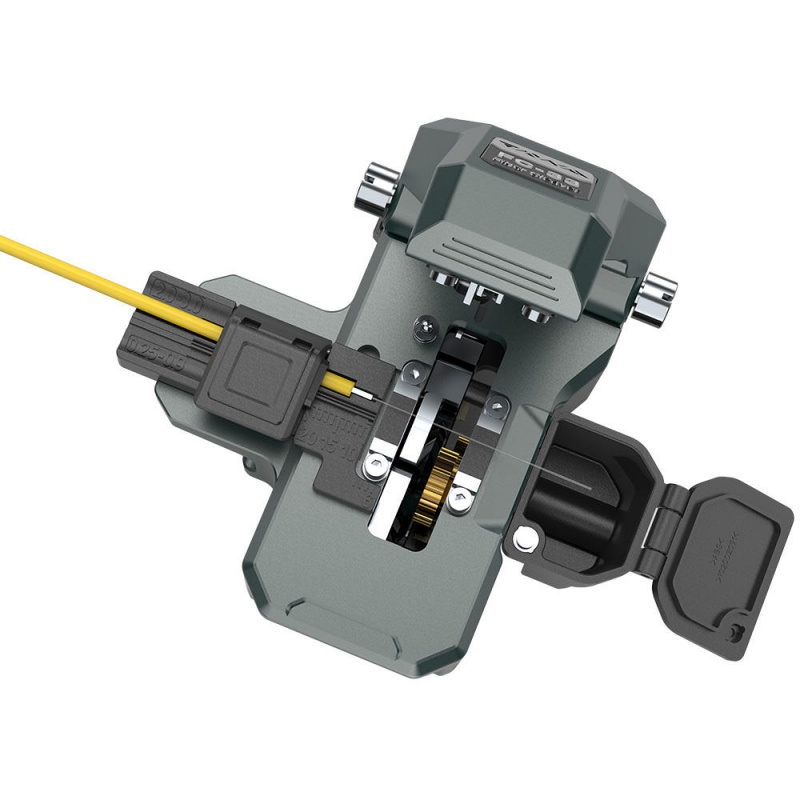

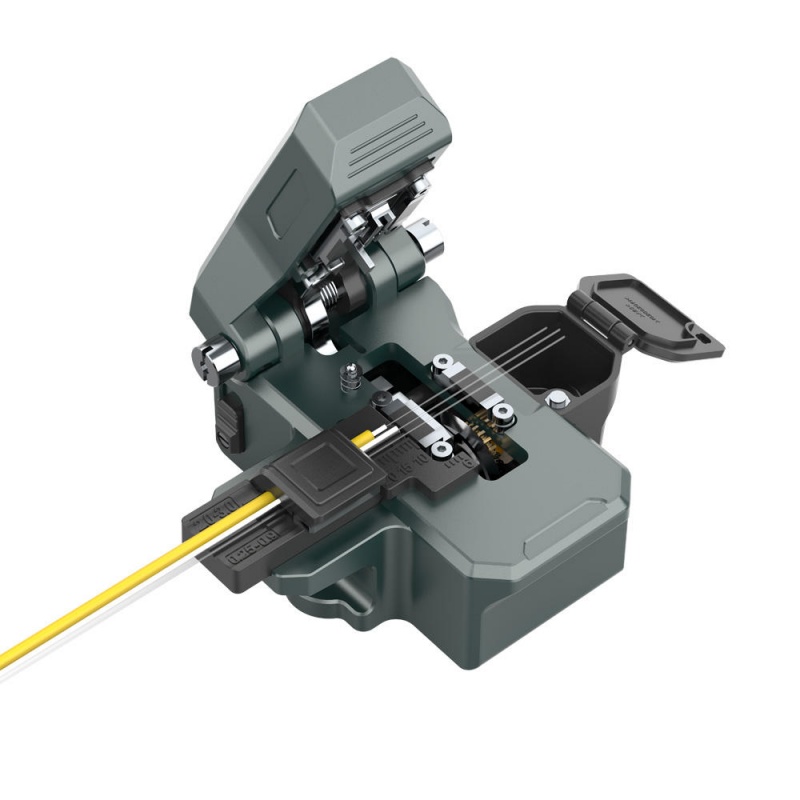

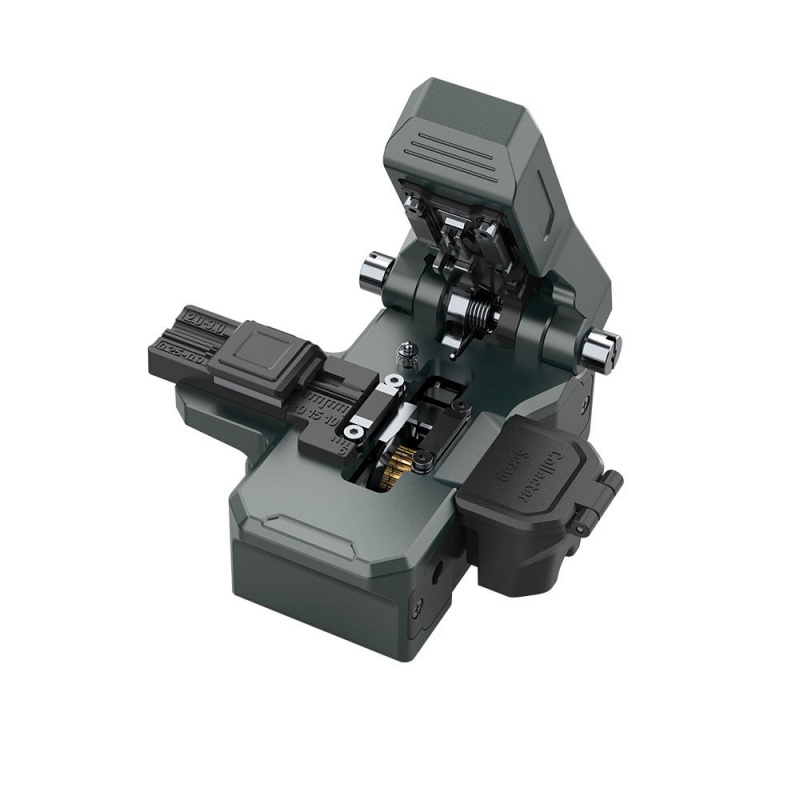

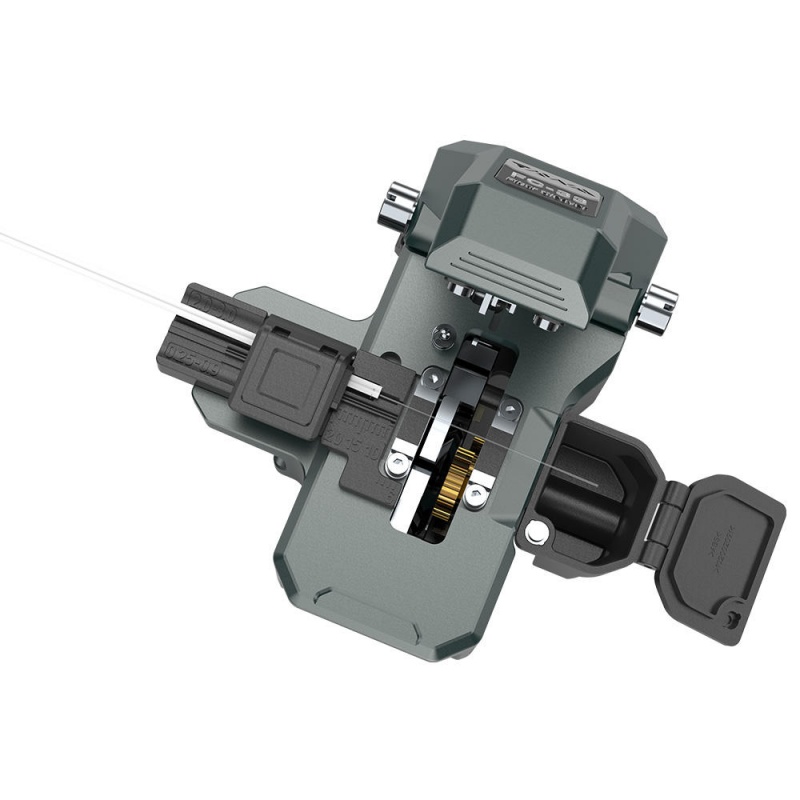

Tawaa High Precision Full-Metal One-Step Fiber Cleaver FC-33
All-Metal Material

Blade Cleaving Lifespan: 72,000(Replaceable)

Typical Cleaving Angle <0.5°

Tool-Free Blade Position Adjustment

Metal + Rubber Pressure Pad

Comes with three standard fixtures (Universal / Dual-core / 3-in-1)

Enjoy lifetime free service
Product description

Features

All-Metal Material

Blade Cleaving Lifespan: 72,000(Replaceable)

Typical Cleaving Angle <0.5°

Tool-Free Blade Position Adjustment

Metal + Rubber Pressure Pad

Comes with three standard fixtures (Universal / Dual-core / 3-in-1)

Enjoy lifetime free service

Specifications

Product Model

FC-33

Tool-free cleaver adjustment

Yes

Cleaving diameter

125um

Cleaving length

Single-core: 8~20mm / Multi-core: 10mm

Suitable optical fiber

Single-core: 250μm, 900μm, 3.0mm, drop cable / Multi-core: 2 to 12 core

Cleaving angle

Typical value ≤0.5°

Blade life

72,000 cycles (replaceable)

Dual-core fixture

Standard configuration

Universal fixture

Standard configuration

3-in-1 fixture

Standard configuration

Optical fiber storage box

Standard configuration

Type of storage box

Manual operation

Automatic cleaver return

Standard configuration

Size

76W x 93.10D x 50H (mm)

Overall weight

246.1g

Metal weight

212.6g
