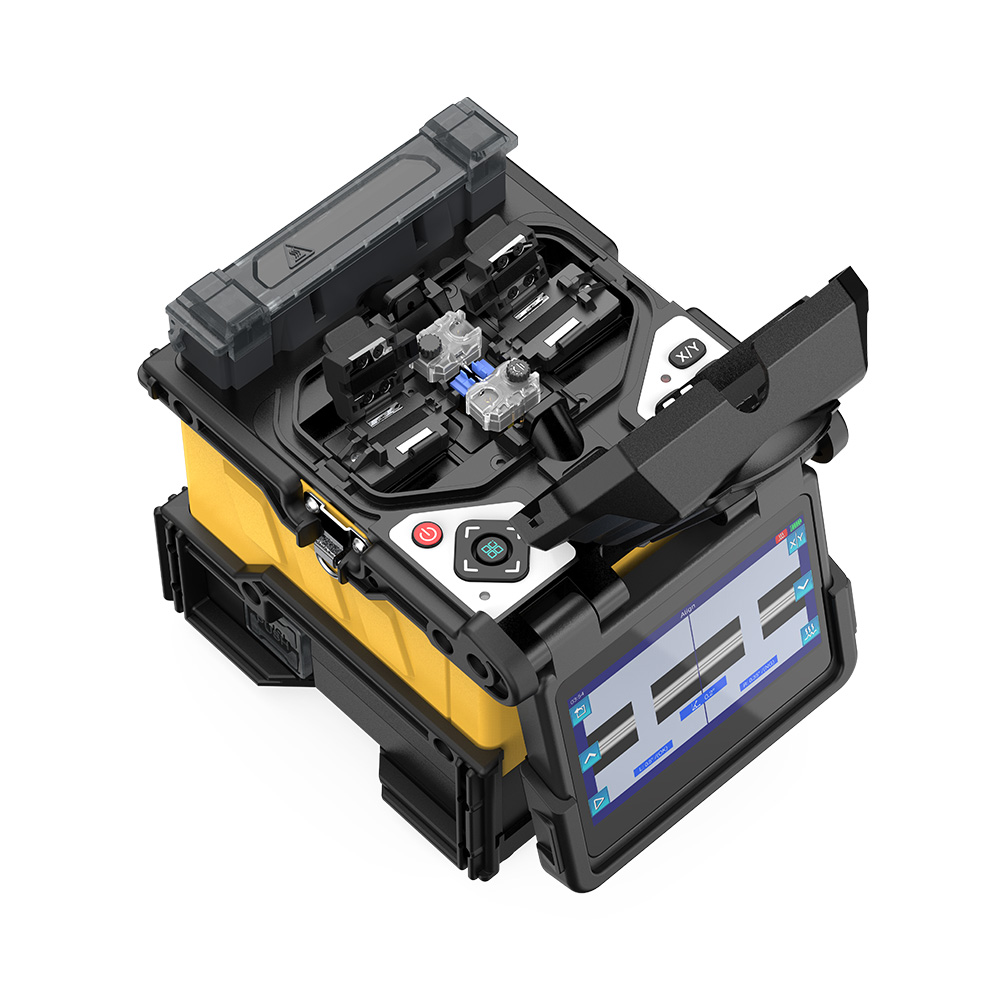

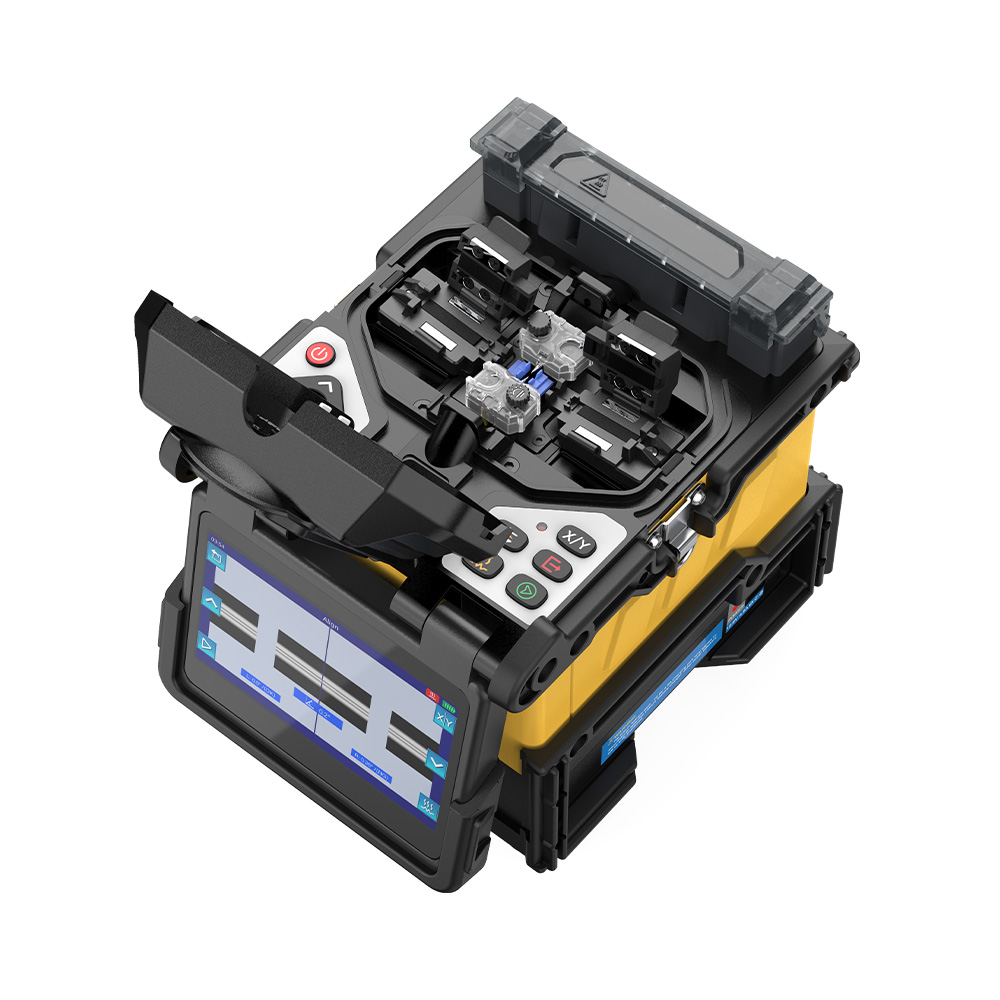

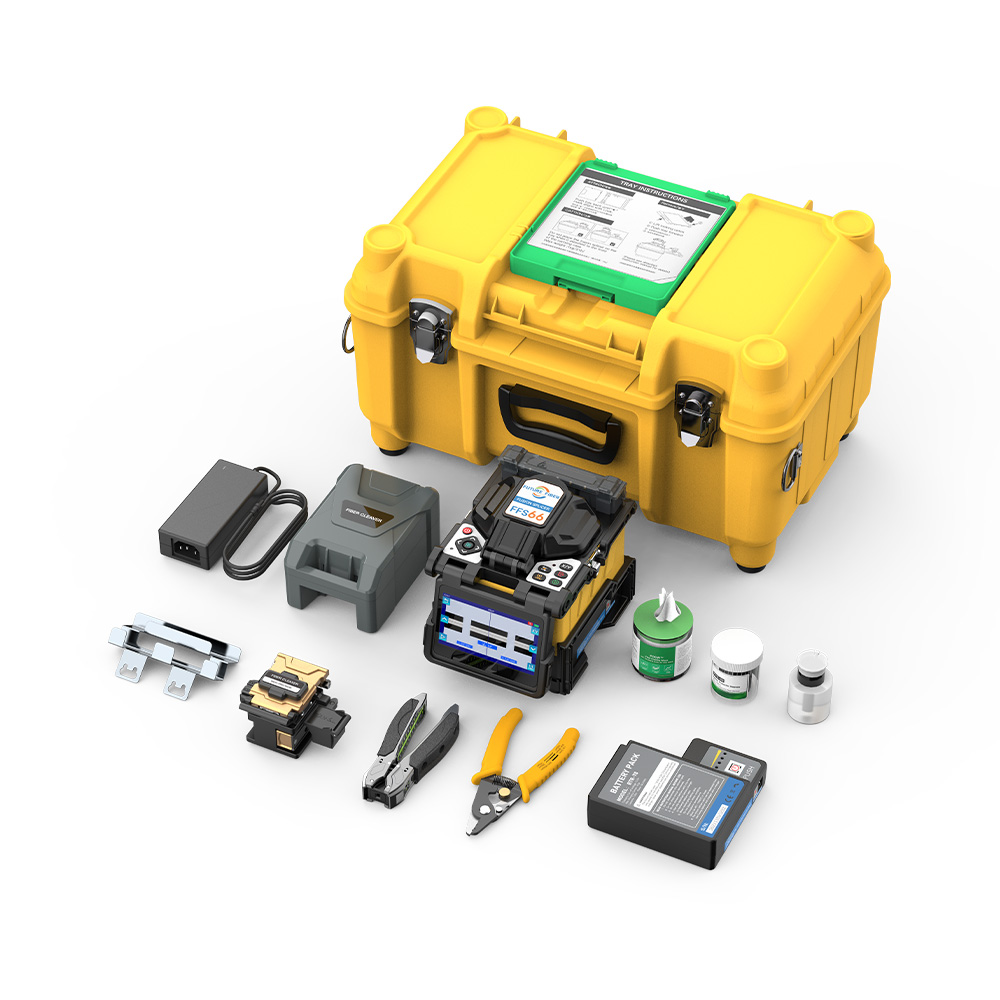

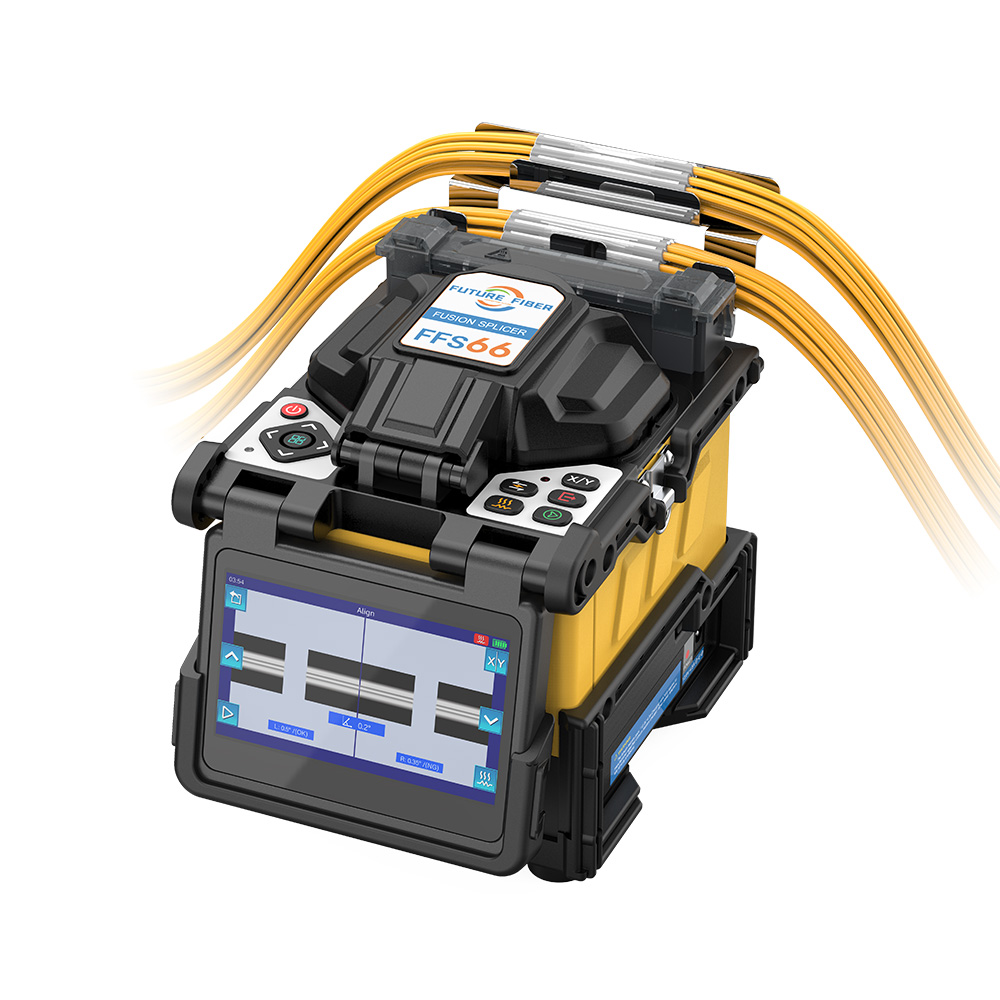

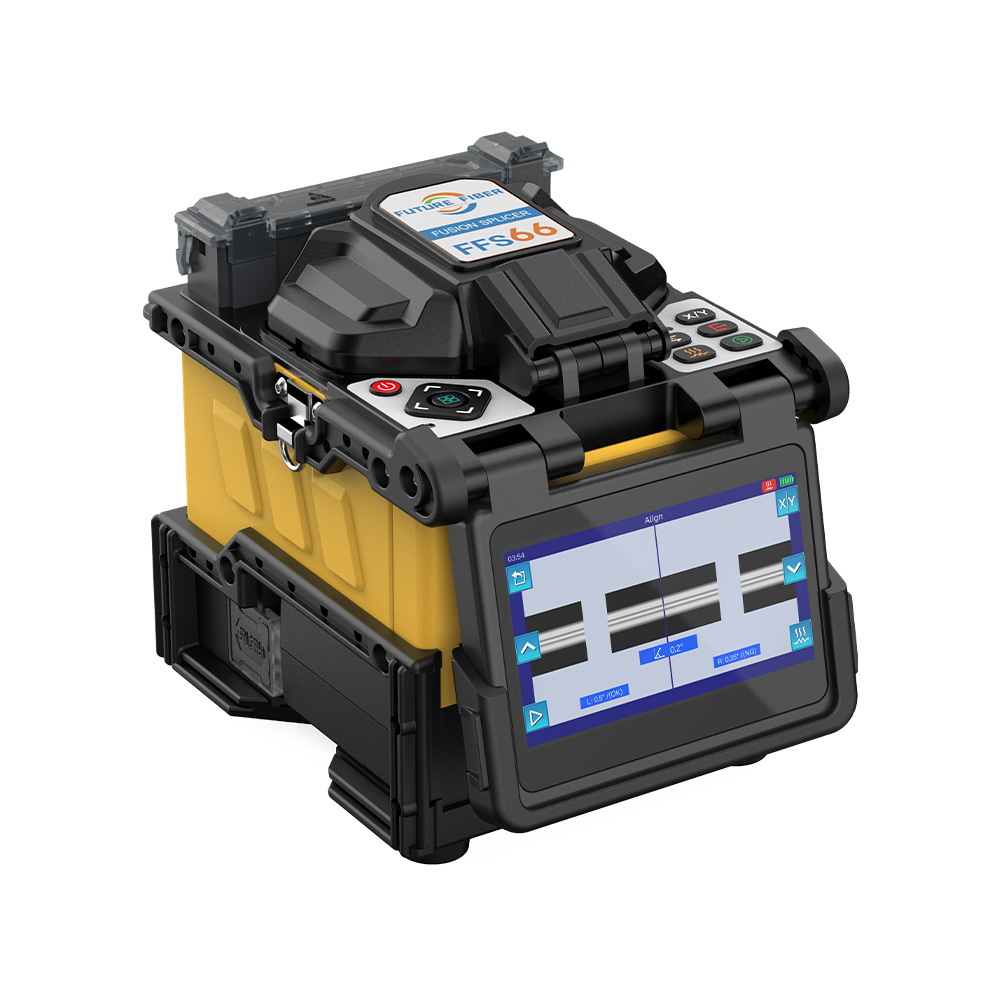

Splice Method

Core Alignment

Applicable Fibers

SM(G.652&G.657) /MM(G.651) /DS(G.653) /NZDS(G.655)

Compatible Fiber/Cable

0.25~3.0 mm /Rubber-insulated fiber cable

Fiber Holder

Replaceable universal fiber holder

Fiber Diameter

Cladding:80-150µm, Coating: 100-1000µm

Fiber Cleave Length

8~16 mm

Splice Mode

Max 128 modes

Typical Splice Loss

SM: 0.02dB /MM: 0.01dB /DS: 0.04dB /NZDS: 0.04dB /G.657: 0.02dB★①

Return Loss

≥60dB

Splicing Time

6 sec. (SM G652 Quick mode)

Estimated Splice Loss

Available

Heating Time

16 sec.(SM G652 250μm 40mm Sleeve, based on quick mode) adjustable★②

Protection Sleeve Length

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs

Max. 32 modes

Battery Capacity

7800mAh Battery Capacity, Typical 450 Cycles (Splice&Heat) per Charge★③

Electrode Life

5000 arcs, can be extended by using an electrode grinder★④

Auto-start

Splice /Heating

Results Storage

The last 10,000 splice records and 2,000 result images

Tension Test

1.96~2.25N

Operating Condition

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max. Wind 15m/s

Storage Condition

0~95% relative humidity, -20~60°C

Display

4.3” touch screen

Fiber Magnification

X, Y, XY, X/Y: 320X Magnification

Power Supply

AC Input 100-240V~50/60Hz 2.0A, DC Input 14.0V=4.0A

Terminal

USB2.0

Weight

1.72kg without battery /2.25kg with battery

Size(mm)

158H x132W x157D(including rubber bumper)
