Applicable Fibers

SM(G.652&G.657) /MM(G.651) /DS(G.653) /NZDS(G.655)

Compatible Fiber/Cable

0.25~3.0 mm /indoor flat cable

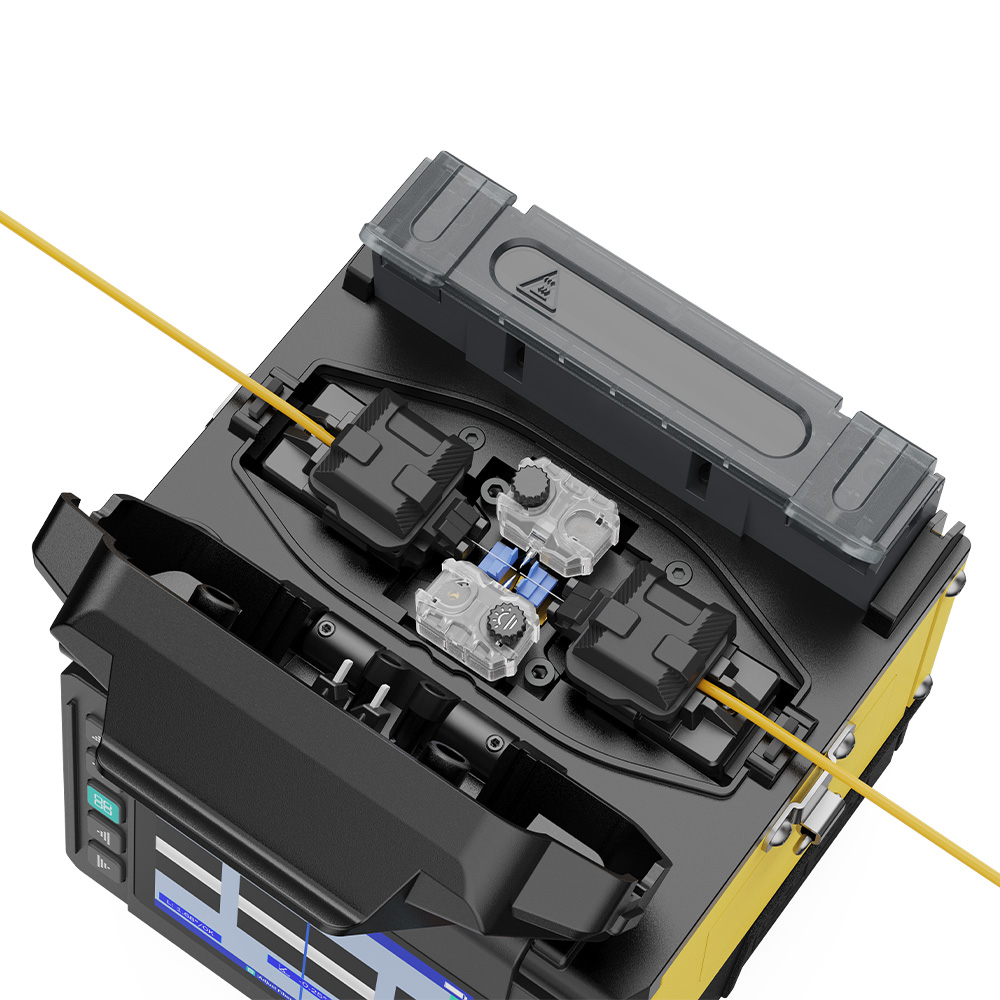

Fiber Holder

Replaceable

Fiber Diameter

Cladding: 80-150μm, Coating: 100~1000μm

Fiber Cleave Length

8~16 mm

Splice mode

Max 128 modes

Typical Splice Loss

SM: 0.03dB /MM: 0.01dB /DS: 0.04dB /NZDS: 0.04dB /G.657: 0.03dB★①

Return Loss

≥60dB

Splicing Time

SM Quick mode : 8 sec /SM Average: 10 Sec

Estimated Splice Loss

Available

Heating Time

Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★②

Protection Sleeve Length

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs

Max. 32 modes

Battery

4000mAh Battery Capacity, Typical 220 Cycles (Splice&Heat) per Charge ★③

Electrode Life

5000 arcs(replaceable)★④

Auto-start

Splice /Heating

Results Storage

The last 10,000 splice records and 2,000 result images

Tension Test

1.96~2.25N

Operating Condition

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max. Wind 15m/s

Storage Condition

0~95% relative humidity, -20~60°C

Display

3.5” color high resolution (800 x 480) display

Fiber Magnification

X, Y, XY, X/Y : 320X Magnification

Power Supply

AC100-240V~50/60Hz 2.0A，DC14.0V-4.0A

Terminal

USB2.0

Weight

1.06kg without battery /1.35kg with battery

Size(mm)

130H x113W x126D
